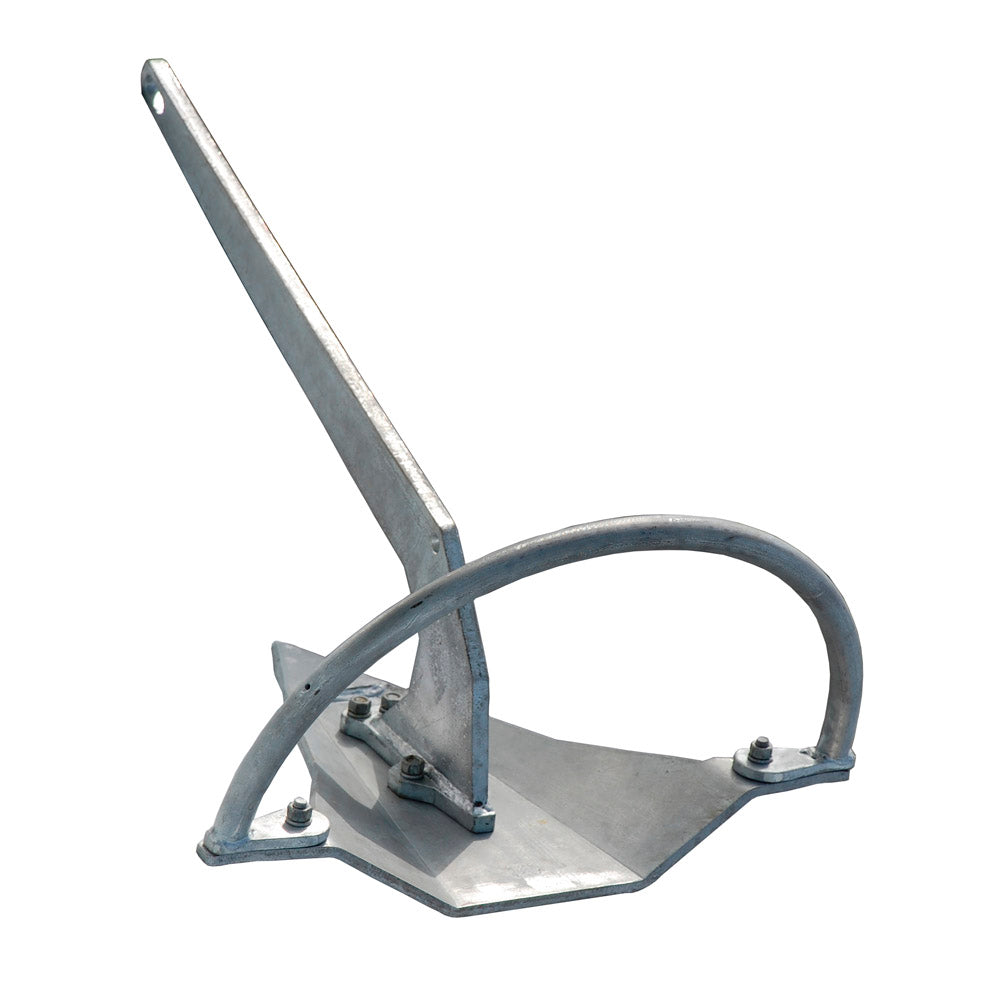

Mantus Anchors Spade Anchor - M1 (Galvanised) - 55 lb (24.9 kg)

SKU: MAT-GA55LB  |  Manuf. Code: MANGV55
$743.97 USD

Description

The Spade Anchor - M1 (Galvanised) #MANGV55 is your go-to choice for reliable anchoring. It's specifically designed for dense, grassy bottoms, ensuring your vessel stays securely in place. With its easy storage and sturdy build, it's a practical addition for any sailor.

Benefits

  • Unparalleled holding power for secure anchoring
  • Breaks down for convenient storage
  • Ideal for long-range cruising, racing, and day sailing
  • Galvanised finish for enhanced durability

Made from high-quality galvanised steel, this anchor weighs 55 lb (24.9 kg) and is designed for easy assembly and disassembly. Perfect for those who need a reliable anchor that doesn't take up too much space, it's compatible with a variety of boat types and offers exceptional performance in challenging conditions.

Our Part # MAT-GA55LB | Mfr. Part # MANGV55

Features

  • Formed out of high quality steel plate. Contains no cast parts.
  • Shank and shank boot are welded from top and bottom.
  • Shank and roll bar are bolted to the fluke.
  • ASTM certified steel bolts are oversized with a large margin to ensure safety.
  • Although the shank is attached to the fluke with 4 bolts, a single bolt has sufficient strength to handle the maximum expected load on the anchor.
  • In the carbon steel version every part of the anchor system is hot-dipped galvanized for corrosion protection. (All shanks are HT ASTM 514 Steel and Flukes are mild steel A36 equivalen).
  • Sharp-headed nose is precision machined to achieve the perfect chisel shape to achieve maximum penetrating power.
  • Mantus Anchors offers a lifetime warranty on its anchors.

Knowledge Base

Click on the following technical articles to find relevant information about Anchors:

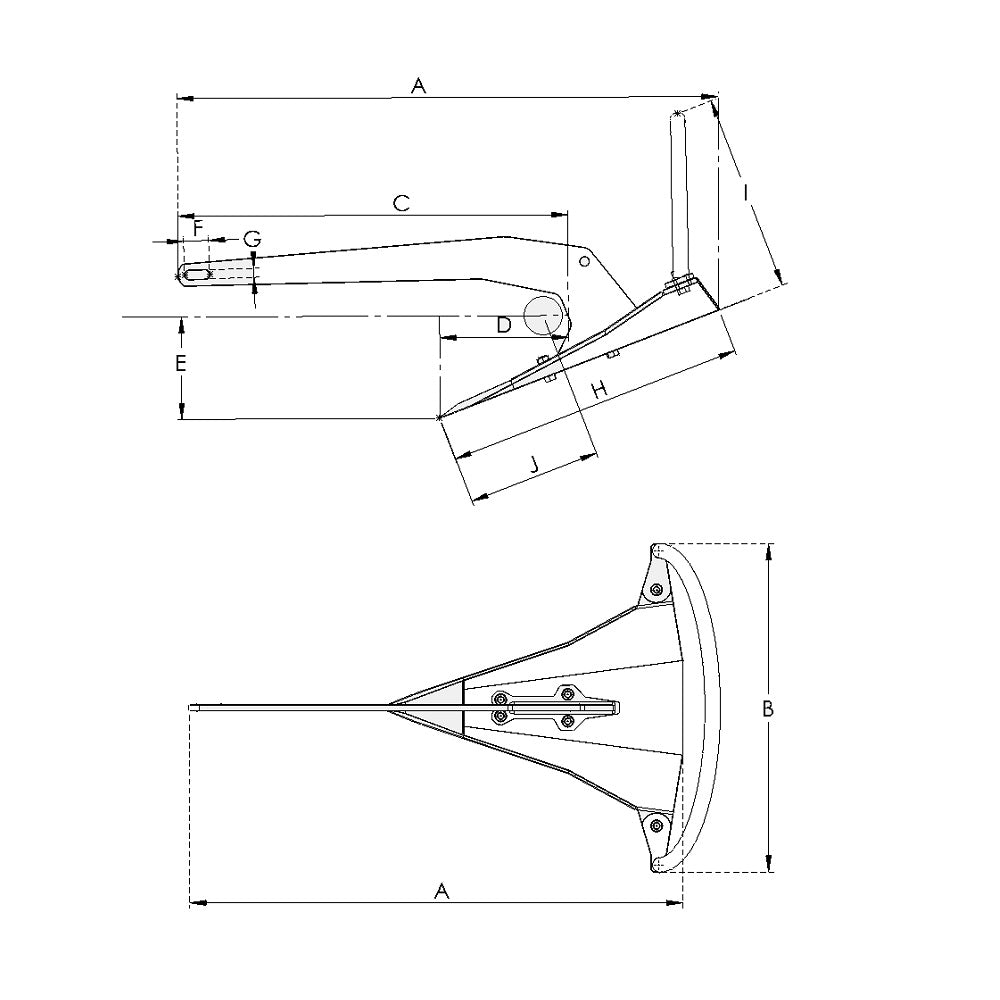

Technical Information

DescriptionMetricImperial
Size25.0 kg55.0 lb
A1063.0 mm41 7/8 in
B644.0 mm25 3/8 in
C747.0 mm29 3/8 in
D253.0 mm10.0 in
E201.0 mm7 7/8 in
F49.0 mm1 15/16 in
G18.0 mm21/32 in
H588.0 mm23 1/8 in
I388.0 mm15 5/16 in
J262.0 mm10 5/16 in
