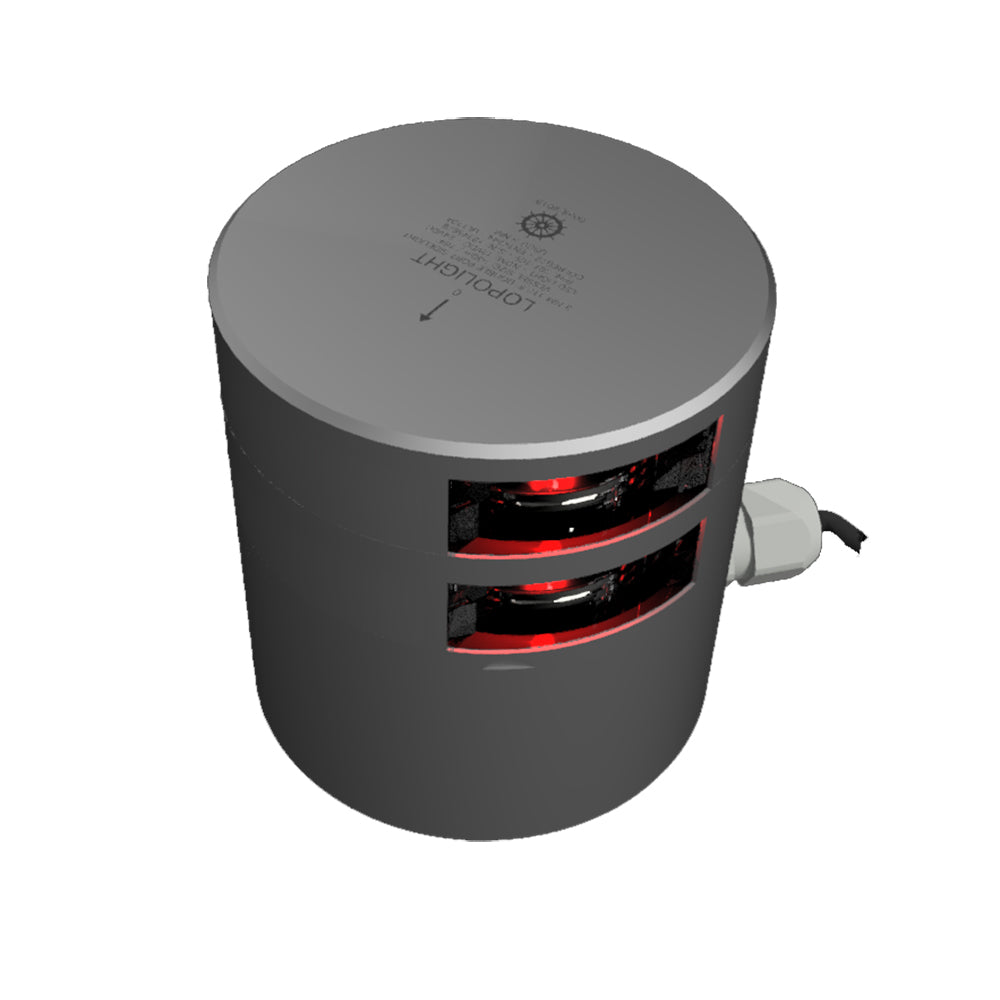

Lopolight Side Lights - Horizontal Mount - Red - Silver Housing - 112.5° - 3 nm - Double

112.5° port sidelight, double, horizontally mounted.

Included in package:
1 Navigation light, Installation instructions and with cable glands and blinding caps as appropriate.

Our Part # LOP-301-109ST | Lopolight Part # 301-109ST

Features:

• New generation
• LED (Light Emitting Diode) navigation light.
• Unique and precise definition of light angles.
• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
• Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
• Waterproof to IP 68+ (submersible).
• Low power consumption _ 70 to 90% less than traditional navigation lights.
• Full brightness with input voltages ranging from 10 to 32 Volts.
• All Lopolights have been tested several times during production, a total of more than 24 hours.
• Easy to install, adaptor and screws included (when applicable).

Materials: Anodized aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply Voltage: 10 - 32 VDC
Power Consumption: 2 Watt, Current @ 12 VDC: 152 mA: Current @ 24 VDC: 95 mA
Light Colors: Red
Intensity: >15 cd
Visibility (@K=0.8): 3 nm
Number of LED's: 1 / 1
Expected life Vessel size: For vessels over 50 m (164 ft)
Mounting: Horizontal
