Lofrans  |  SKU: LOFLWT7001OP1  |  Manuf. Code: LWT700/1OP1

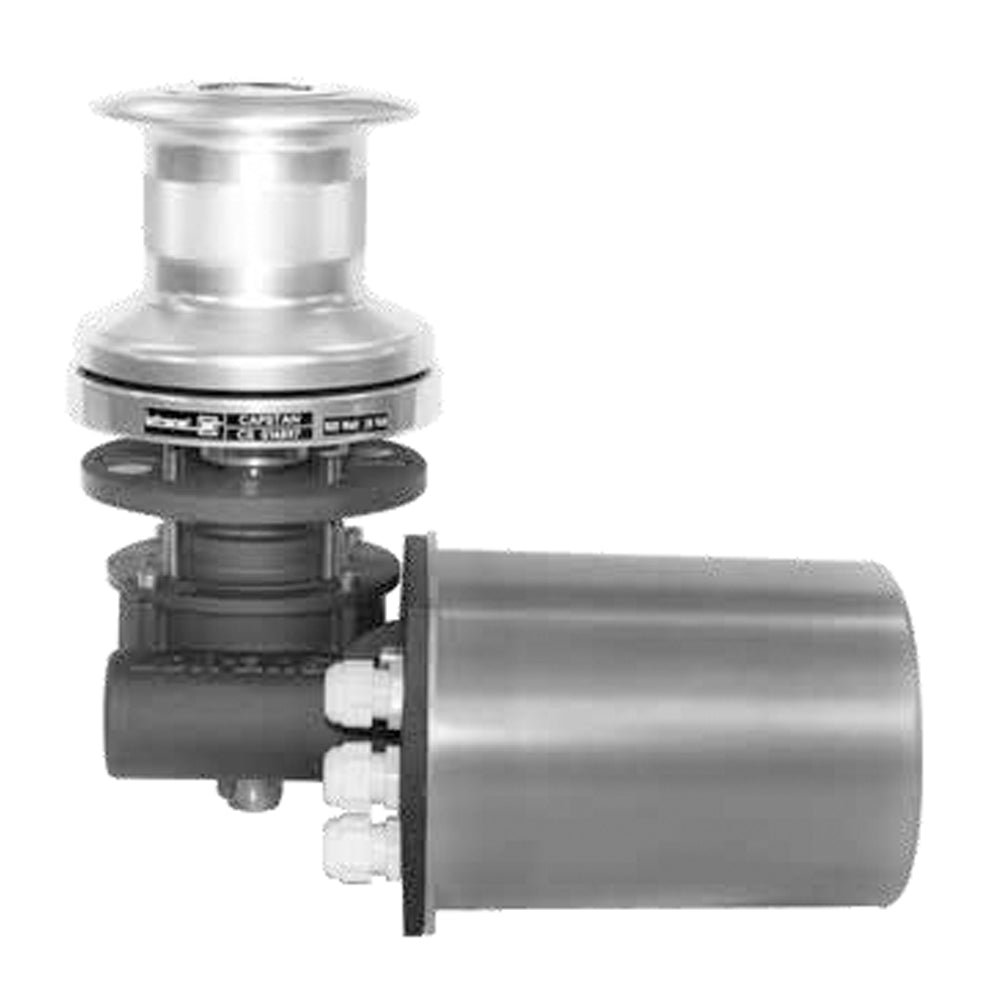

Lofrans Windlass - Capstan 700W Vertical Electric 24V Drum Only

$2,130.00 USD

Description

The range of Lofrans capstans is designed for boats from 18 up to 150 feet. Capstans are normally installed on the stern of the boat for mooring operations and are used in recreational, fishing and commercial vessels.

They are normally installed on the vessel in addition to the anchor windlass, with the number of capstan units depending on the length and displacement of the vessel. They are controlled by a pair of the foot switches close to the capstan, so that the operator can have his/her hands free for rope handling.

The construction is very similar to our vertical windlass range using the same mechanical components, giving strength and high performance by relying on Lofrans'- made worm screw gearbox.

The base is manufactured using chromed bronze, strong and long lasting, as are the drums, which have the proper surface to hold the rope and minimize wear.

Our Part # LOFLWT7001OP1 | Lofrans Part # LWT700/1OP1

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Technical Information


DescriptionImperialMetric
Power Supply24 V.
Motor Wattage700 W.
Maximum Pull1984.50 lb.900.00 kg.
Amps at Working Load50 A.
Line Speed at Working Load75 1/2 ft./min.23.00 m./min.
Max Line Speed98 3/7 ft./min.30.00 m./min.
Net Weight with Drum33.08 lb.15.00 kg.
