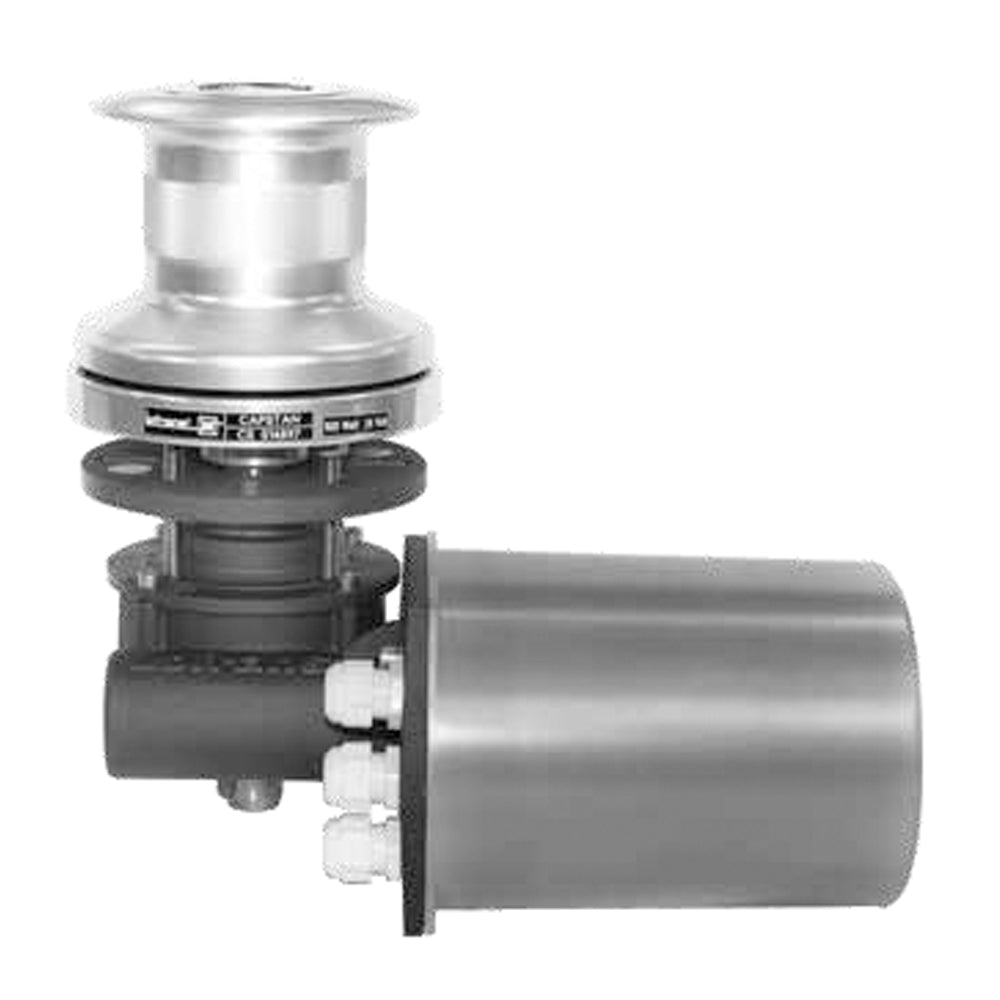

Lofrans Windlass - Capstan 1000W Vertical Electric 12V Drum Only
Lofrans Windlass - Capstan 1000W Vertical Electric 12V Drum Only is backordered and will ship as soon as it is back in stock.
Description
Description
The range of Lofrans capstans is designed for boats from 18 up to 150 feet. Capstans are normally installed on the stern of the boat for mooring operations and are used in recreational, fishing and commercial vessels.
They are normally installed on the vessel in addition to the anchor windlass, with the number of capstan units depending on the length and displacement of the vessel. They are controlled by a pair of the foot switches close to the capstan, so that the operator can have his/her hands free for rope handling.
The construction is very similar to our vertical windlass range using the same mechanical components, giving strength and high performance by relying on Lofrans'- made worm screw gearbox.
The base is manufactured using chromed bronze, strong and long lasting, as are the drums, which have the proper surface to hold the rope and minimize wear.
Our Part # LOFLWT1000OP1 | Lofrans Part # LWT1000OP1
Features
Features
Features:
- Luxury chromed bronze base and drum.
- Control Box included in package.
- Anodised marine aluminium gearbox.
- Motor: Dual Direction, Series Wound.
- Gearbox: Stainless Worm Drive.
- Mainshaft: Stainless.
- Mounting Hardware: SS Studs, Washers, Nuts.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Windlasses:
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Power Supply | 12 V. | |
Motor Wattage | 1000 W. | |
Power Rating | 1400.00 lb. | 635.00 kg. |
Retrieval Speed | 46.00 - 59.00 in./min. | 117.00 - 150.00 cm./min. |
Net Weight | 40.00 lb. | 18.10 kg. |
