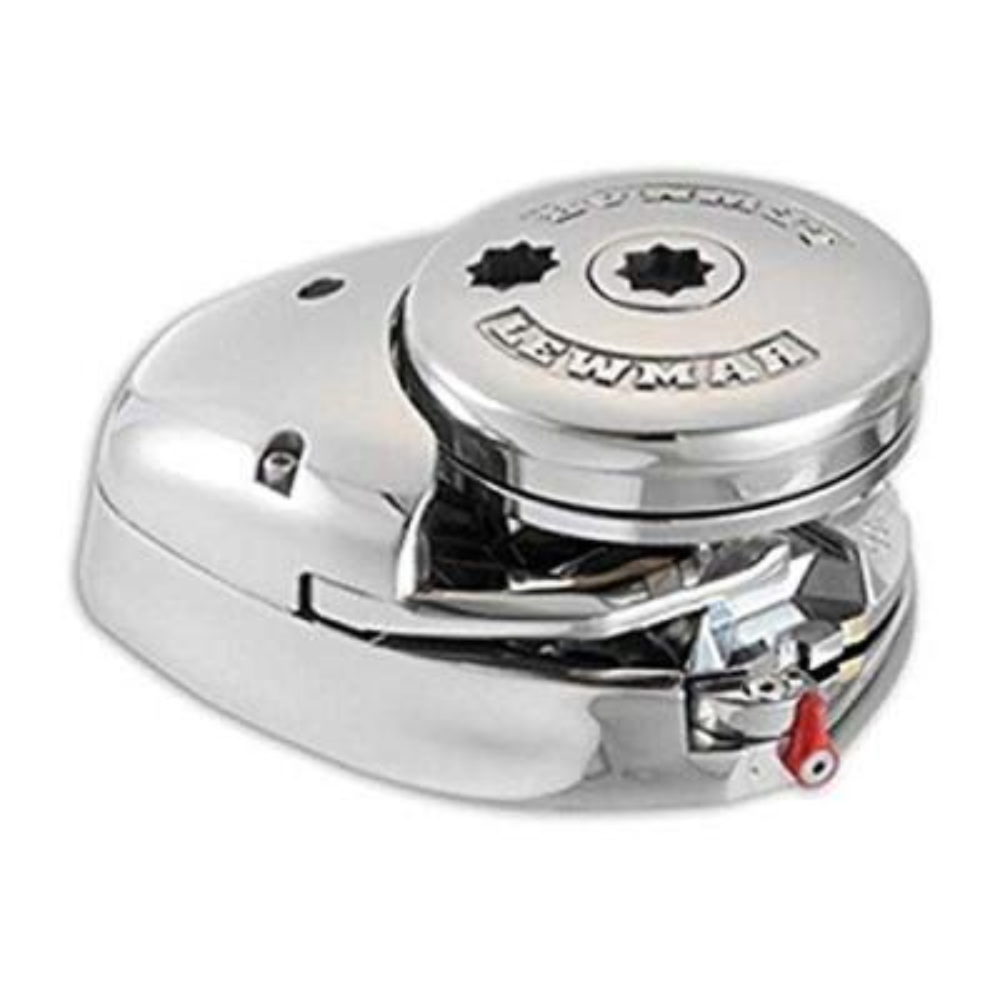

Lewmar Windlass - V1 700W Vertical Electric 12V Gypsy Only 10mm - DIN 766

SKU: LEW6671011108138  |  Manuf. Code: 6671011108-138
$2,984.60 $1,940.00 USD

Description

The Lewmar Windlass - V1 700W Vertical Electric 12V Gypsy Only 10mm - DIN 766 #6671011108-138 is perfect for those who want smooth and reliable anchoring without the fuss. With features like a manual chain release and cone clutch, it's designed to make your life easier on the water. It's a dependable choice for boats up to 12m (40ft).

Benefits

  • Rope-chain gypsy
  • Manual chain release (Free Fall)
  • Cone clutch for smooth, easy control
  • Optional manual override motor gearbox
  • W.A.R.P Drum
  • Fall safe anchor lock
  • Robust/reliable worm gearbox

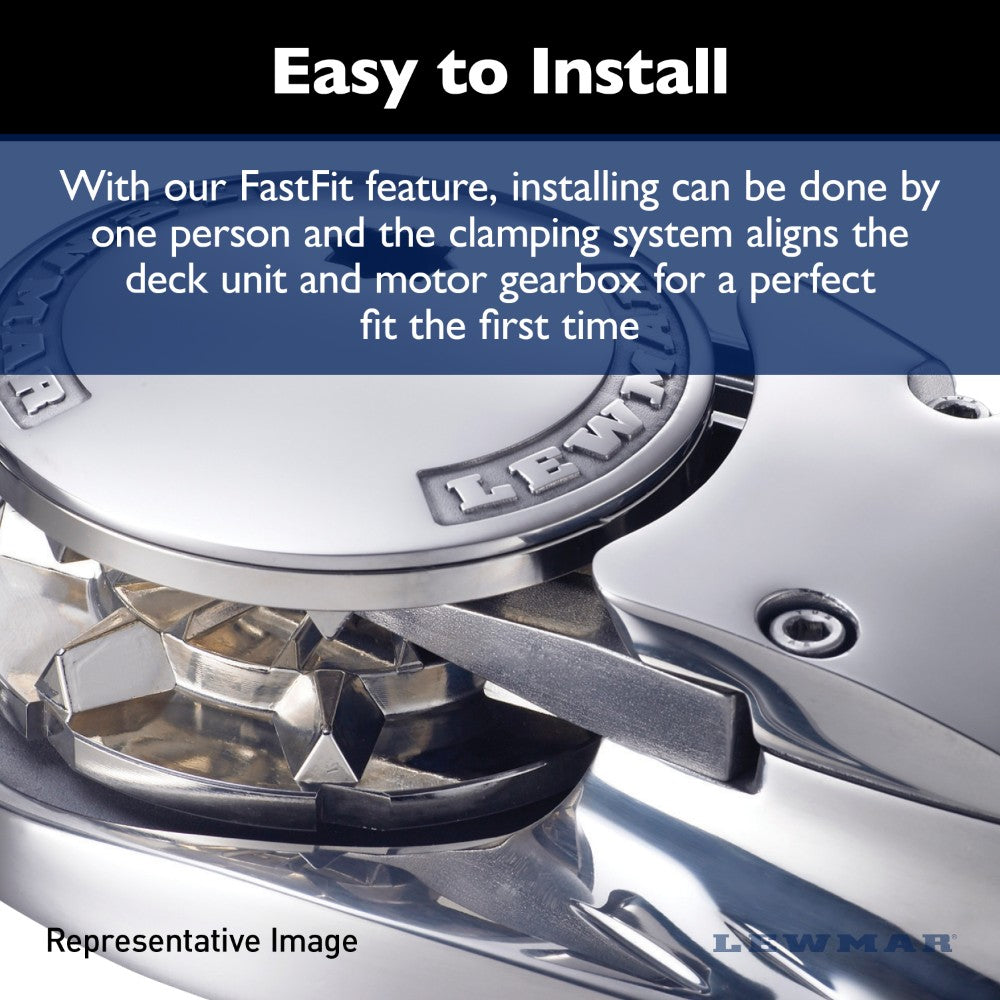

  • FastFit™ option for quicker installation and less hassle
  • Emergency recovery kit available
  • Water resistant IP68 kits available
  • For boats up to 12m (40ft)

This windlass, specifically crafted for sailing enthusiasts, features a robust worm gearbox and a cone clutch, offering smooth control. It's compatible with 10mm DIN 766 chains and operates electrically at 12V, ensuring powerful performance. The design includes a FastFit™ option for hassle-free installation, making it an ideal choice for medium-sized recreational boats.

Our Part # LEW6671011108138 | Mfr. Part # 6671011108-138

Features

  • Rope-chain gypsy.
  • Manual chain release (Free Fall).
  • Cone clutch for smooth, easy control.
  • Optional manual override motor gearbox.
  • W.A.R.P Drum.
  • Fall safe anchor lock.
  • Robust/reliableworm gearbox.
  • FastFit™ option for quicker installation and less hassle.
  • Emergency recovery kit available.
  • Water resistant IP68 kits available.
  • For boats up to 12m (40ft).

Knowledge Base

Click on the following technical articles to find relevant information about Windlasses:

Sizing


DescriptionMetricImperial
Gypsy Number002002
Size10.00 mm.2/5 in.
Chain Description10.00 mm DIN 766.Campbell 3/8 in. S4
Rope Description12.00 - 14.00 mm. 3-Strand and 8-plait1/2 in. 3-Strand and 8-plait

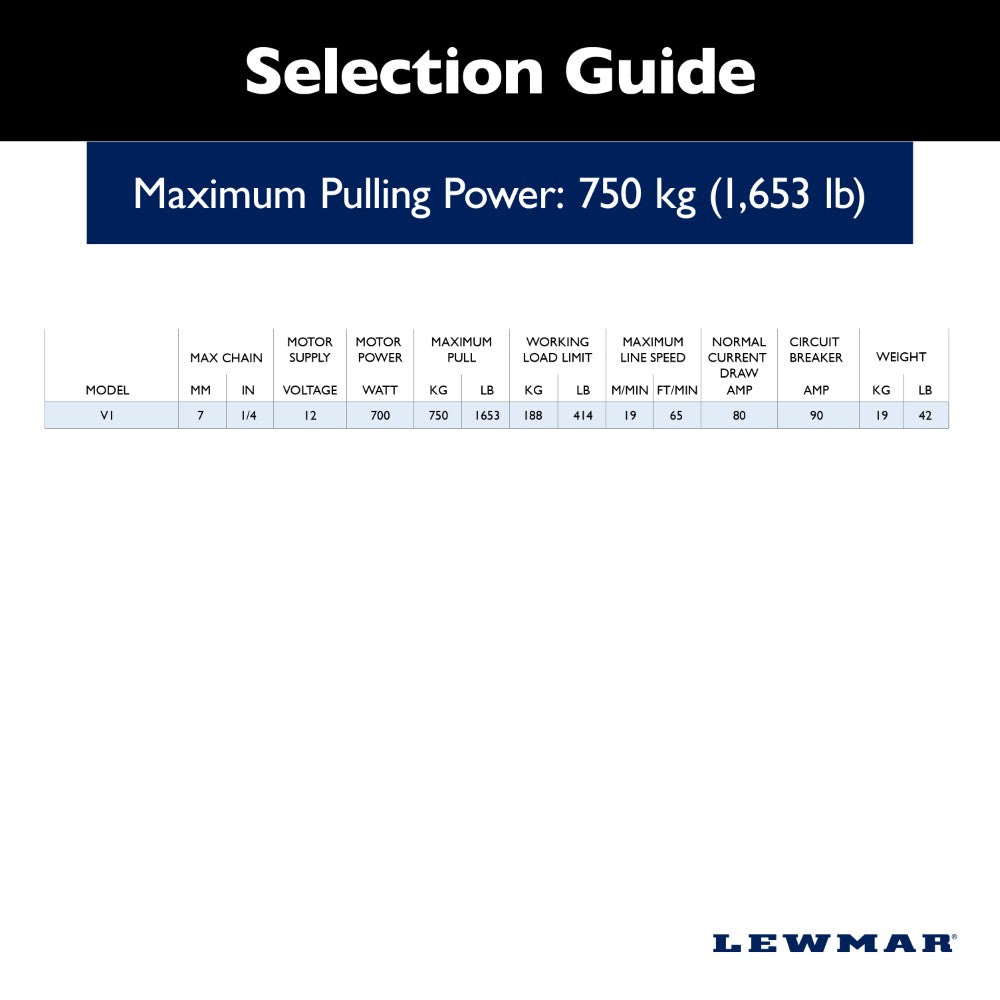

Technical Information


DescriptionImperialMetric
Motor Power700 W700 W
Max Pull1433.00 lb.650.00 kg.
Working Load Limit358.00 lb.163.00 kg.
Max Line Speed69.00 ft./min.21.00 m./min.
Normal Current Draw80.00 amp80.00 amp
Circuit Breaker90.00 amp90.00 amp
Approx Weight Gypsy Only42.00 lb.19.00 kg.
Approx Weight Gypsy/Drum48.50 lb.22.00 kg.
Chain Description10.00 mm. DIN 766, Campbell 3/8 in. S4, 5/16 in. G4010.00 mm. DIN 766, Campbell 3/8 in. S4, 5/16 in. G40
Rope Description1/2 - 5/8 in.12.00 - 16.00 mm.
Rope Type3-strand and 8-plait (5/8 only)3-strand and 8-plait (5/8 only)
