35% off

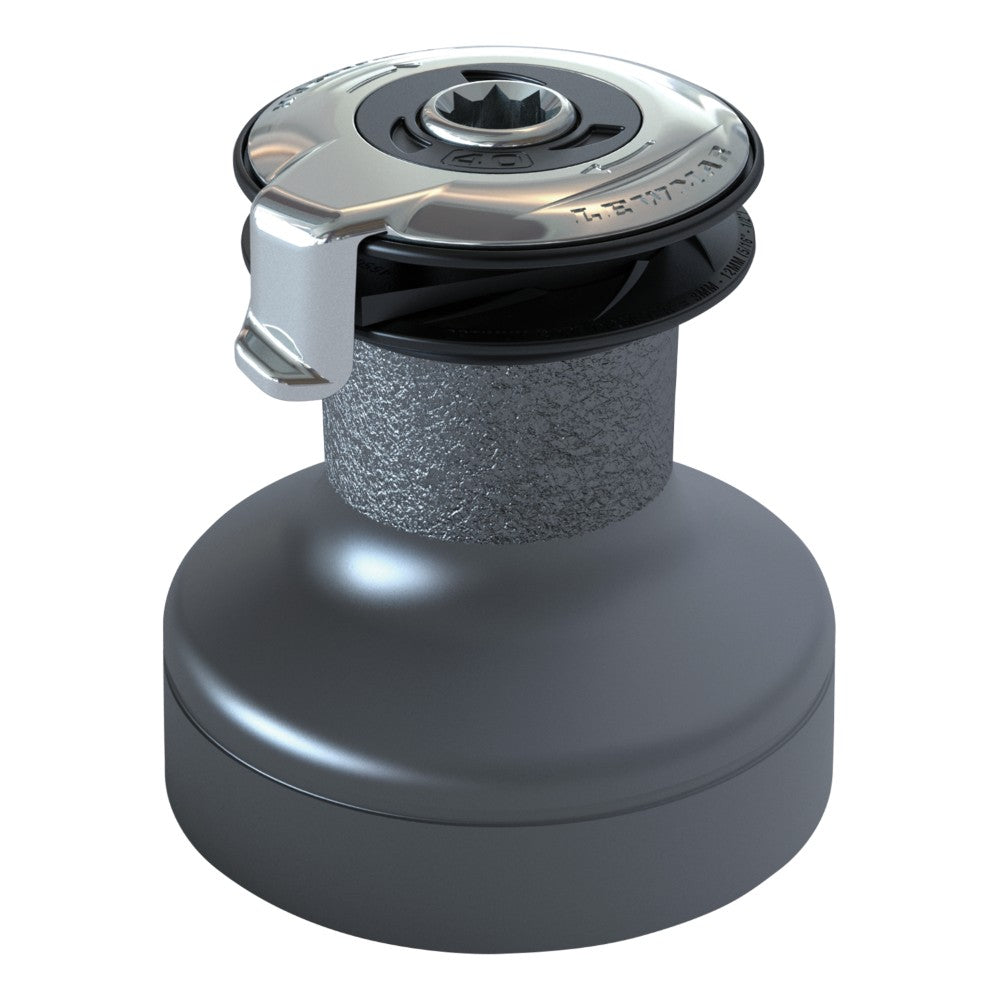

Lewmar Self Tailing Winch EVO Speed Ring Size 45 - Aluminum Grey / Two Speed
$1,790.00 USD
$2,753.80
Unit price
/
Unavailable
Lewmar Self Tailing Winch EVO Speed Ring Size 45 - Aluminum Grey / Two Speed is backordered and will ship as soon as it is back in stock.
Description
Description
An evolution of the renowned Lewmar Ocean winch, the EVO Self-Tailing Winch draws on a wealth of design and manufacturing experience to produce a state-of-the-art winch. With a wide choice of sizes and styles, there is a versatile EVO for any style or application.
Features
Features
Features:
- Easy Servicing - no tools required
- User friendly direction arrows
- Choice of three finishes
- Convertible (40 and above) to electric
- Available in Size 15 to Size 80
- 7 year warranty
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Gear Ratio 1st gear | 2.4:1 | |
Gear Ratio 2nd gear | 7.6:1 | |
Power Ratio 1st gear | 13.9:1 | |
Power Ratio 2nd gear | 44.8:1 | |
Safe Working Load | 2645.55 kg. | 1200.00 kg. |
Weight | 15.87 lb. | 7.20 kg. |
Drum Diameter | 3 7/16 in. | 87.00 mm. |
Base Diameter | 6 5/8 in. | 168.00 mm. |
Height | 7.00 in. | 177.70 mm. |
Line Entry | 3 5/16 in. | 84.00 mm. |
Line Size | 5/16 - 9/16 in. | 8.00 - 14.00 mm. |
