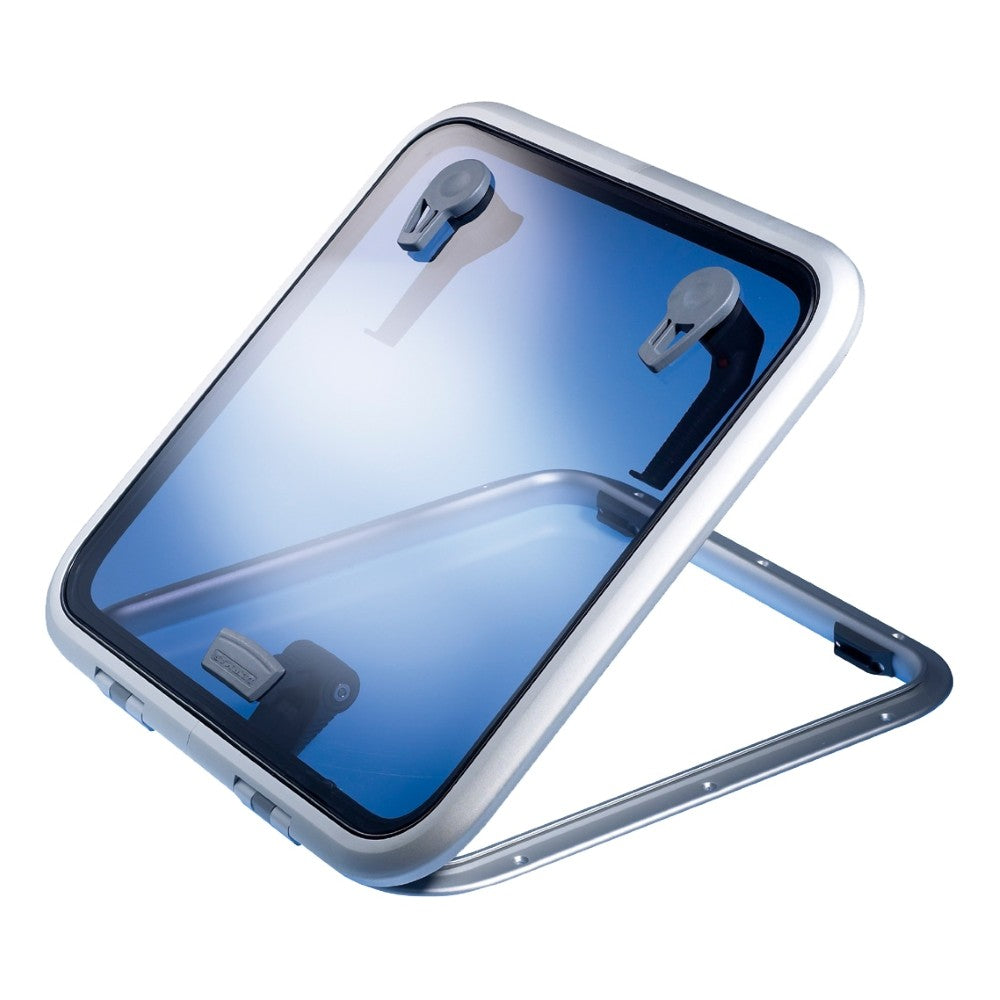

Lewmar Low Profile Hatch - 15 5/8 x 20 3/4 in. (397 x 527 mm) (Grey Acrylic / Silver Frame) - Size 30

SKU: LEW39930030  |  Manuf. Code: 39930030
$733.80 $477.00 USD

Description

The Lewmar Low Profile Hatch #39930030 is a fantastic choice for those who want sleek and stylish ventilation for their powerboat or yacht. With its grey acrylic and silver frame, it fits beautifully on any deck and offers both functionality and aesthetics. It's a versatile marine hatch that suits not only powerboats but also smaller to mid-sized yachts.

Benefits

  • Sleek, low-profile design ideal for powerboats
  • Compatible for use on decks of smaller sailboats and mid-sized yachts
  • Grey acrylic with a stylish silver frame for a modern appearance

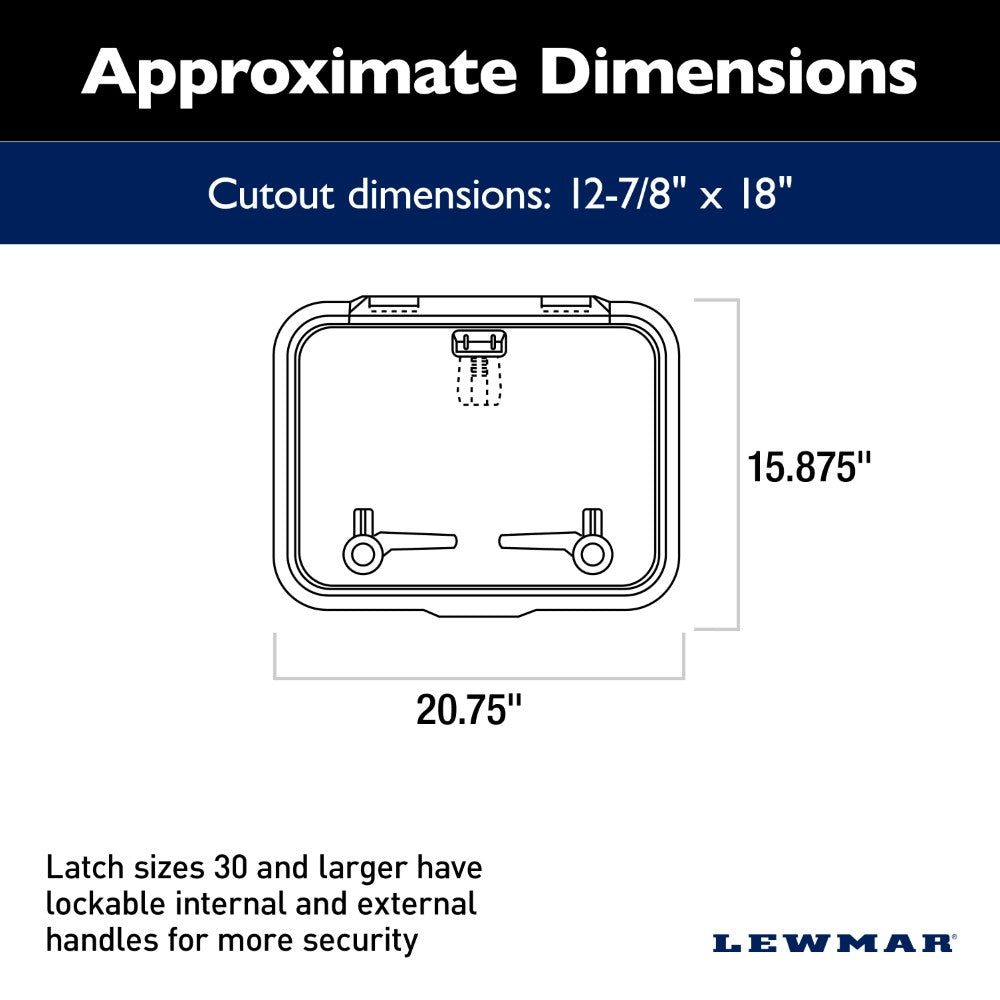

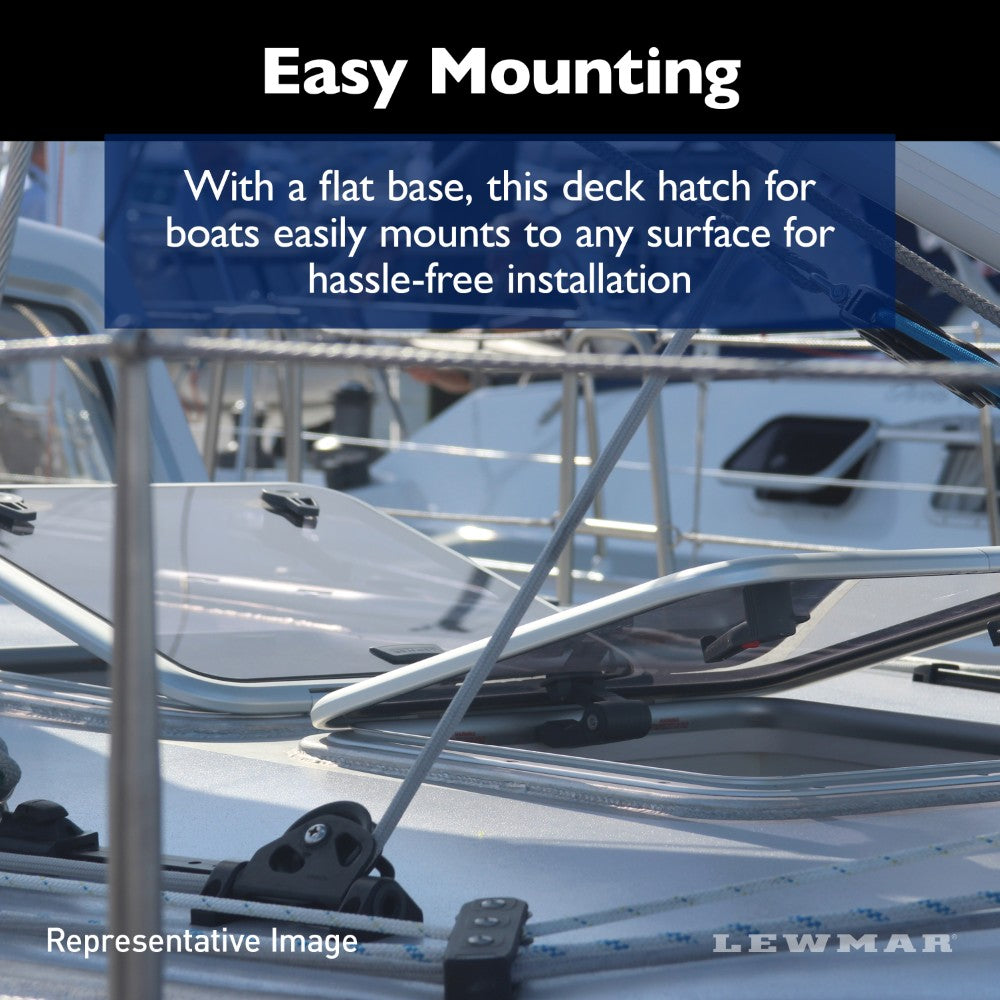

This marine hatch is crafted with grey acrylic and features a silver frame, measuring 15 5/8 x 20 3/4 inches (397 x 527 mm). It is designed to fit flat surfaces with a tolerance of +/- 1mm, making it a great choice for a variety of sailing vessels. Its mounting requires M6 / 1/4" fasteners at the hinge section and 5mm CSK screw No.10 UNC 2 BA for the lower frame.

Usage

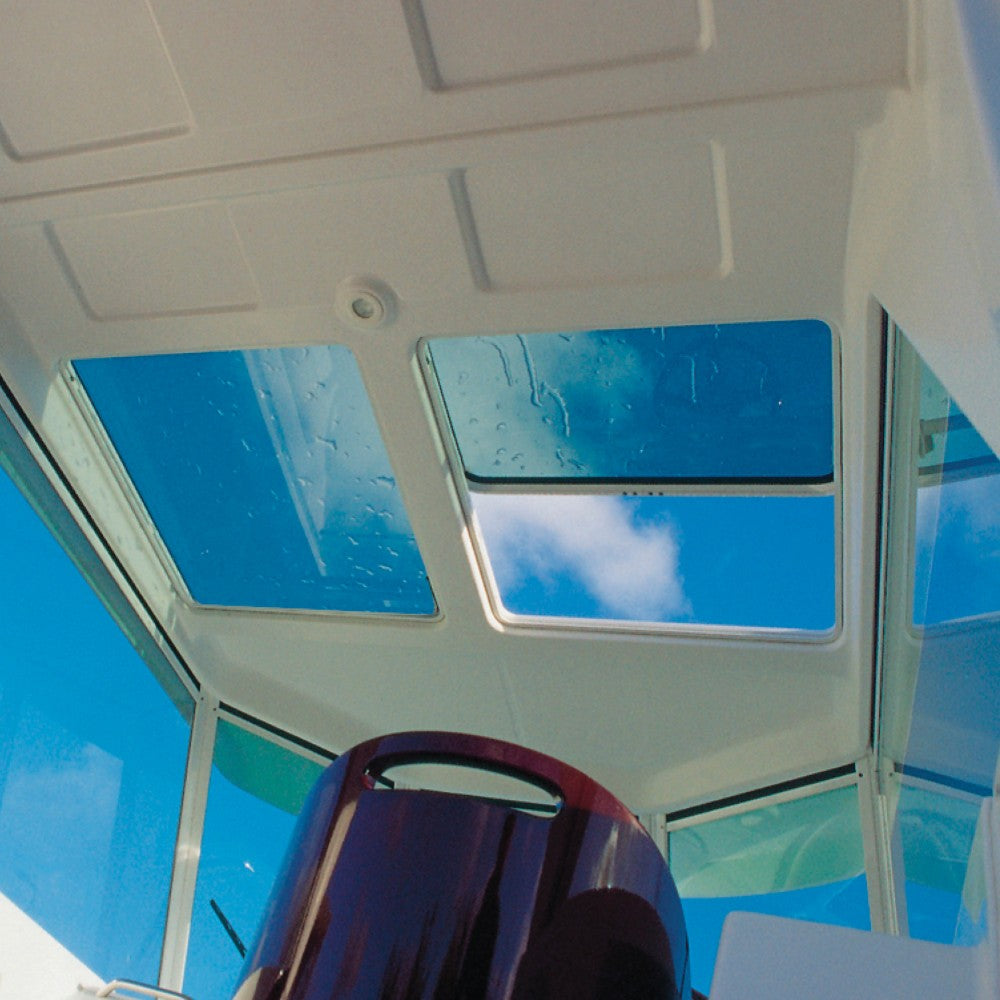

Perfect for both powerboats and sailboats, this hatch can be used as a main ventilation point or as a foredeck hatch, depending on the size of your vessel.

Our Part # LEW39930030 | Mfr. Part # 39930030

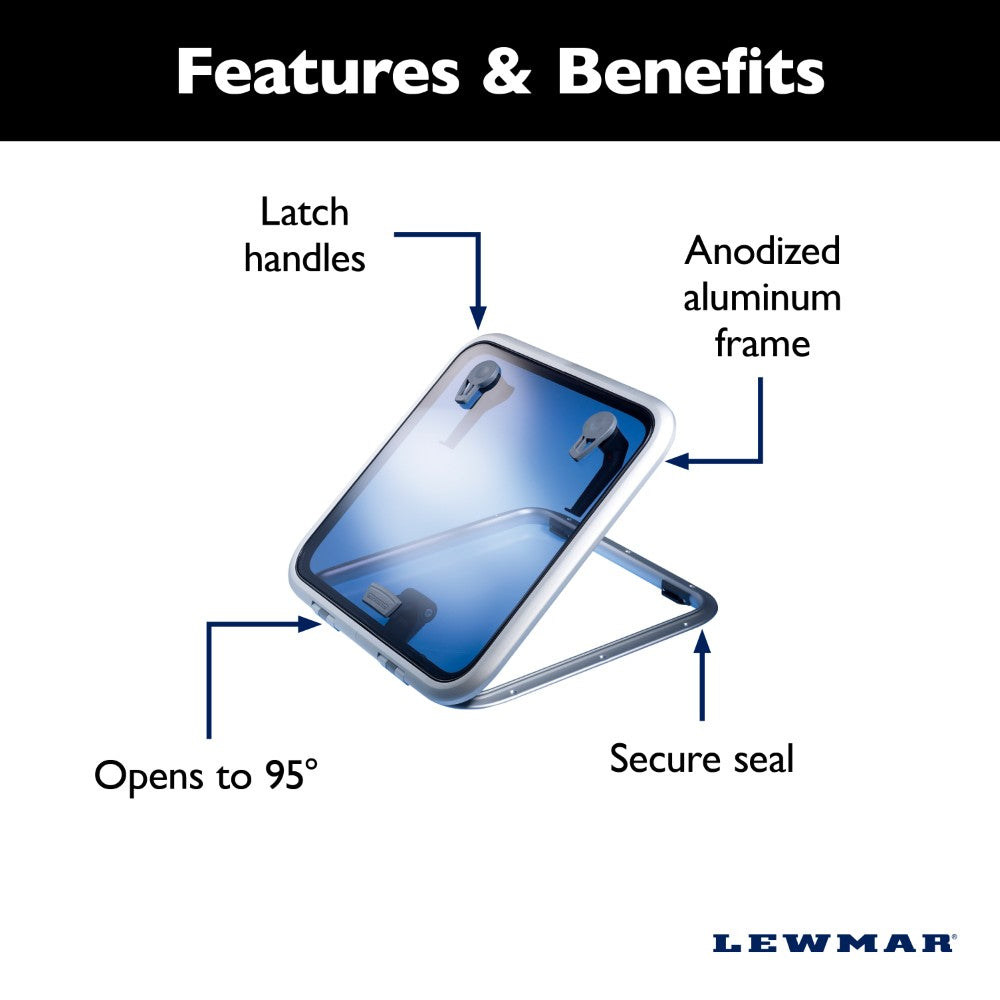

Features

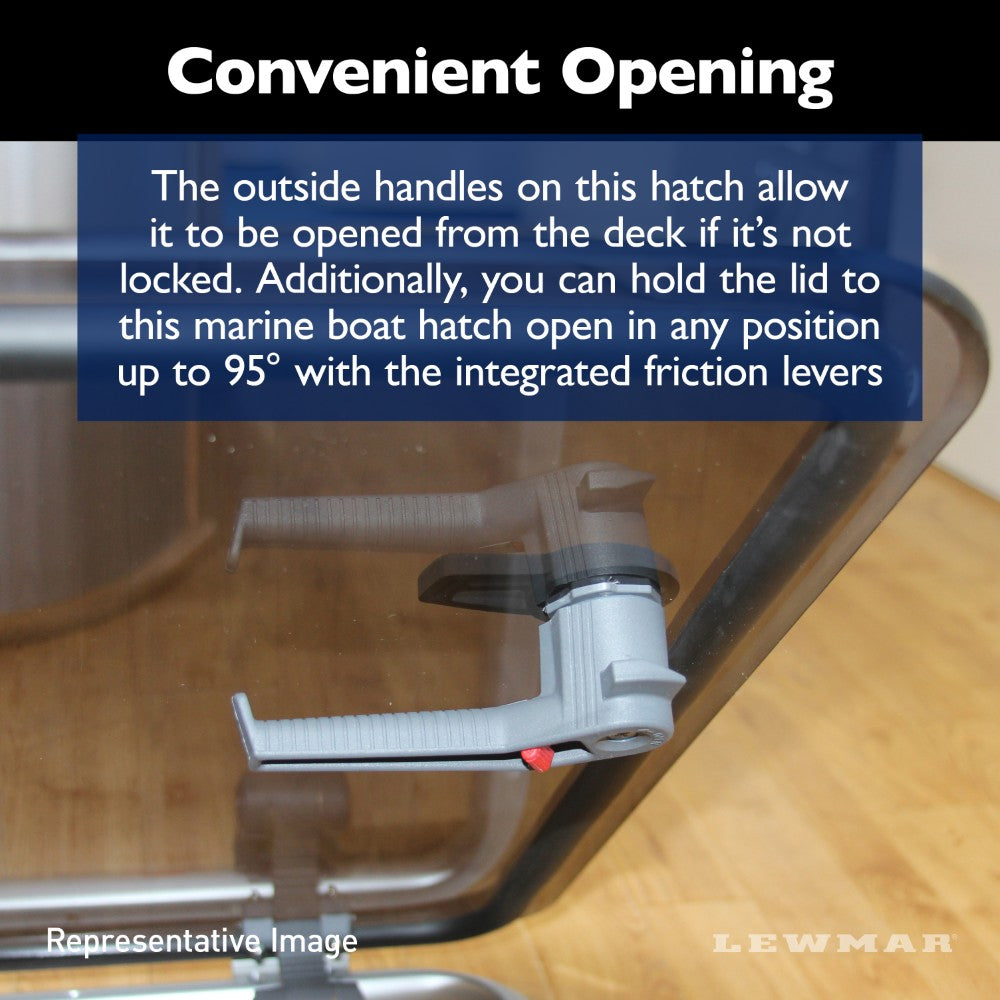

  • Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside)
  • Low profile hatches open up to 180 degrees (round hatches open to 170 degrees)
  • Friction levers hold the lid open in any position up to 95 degrees

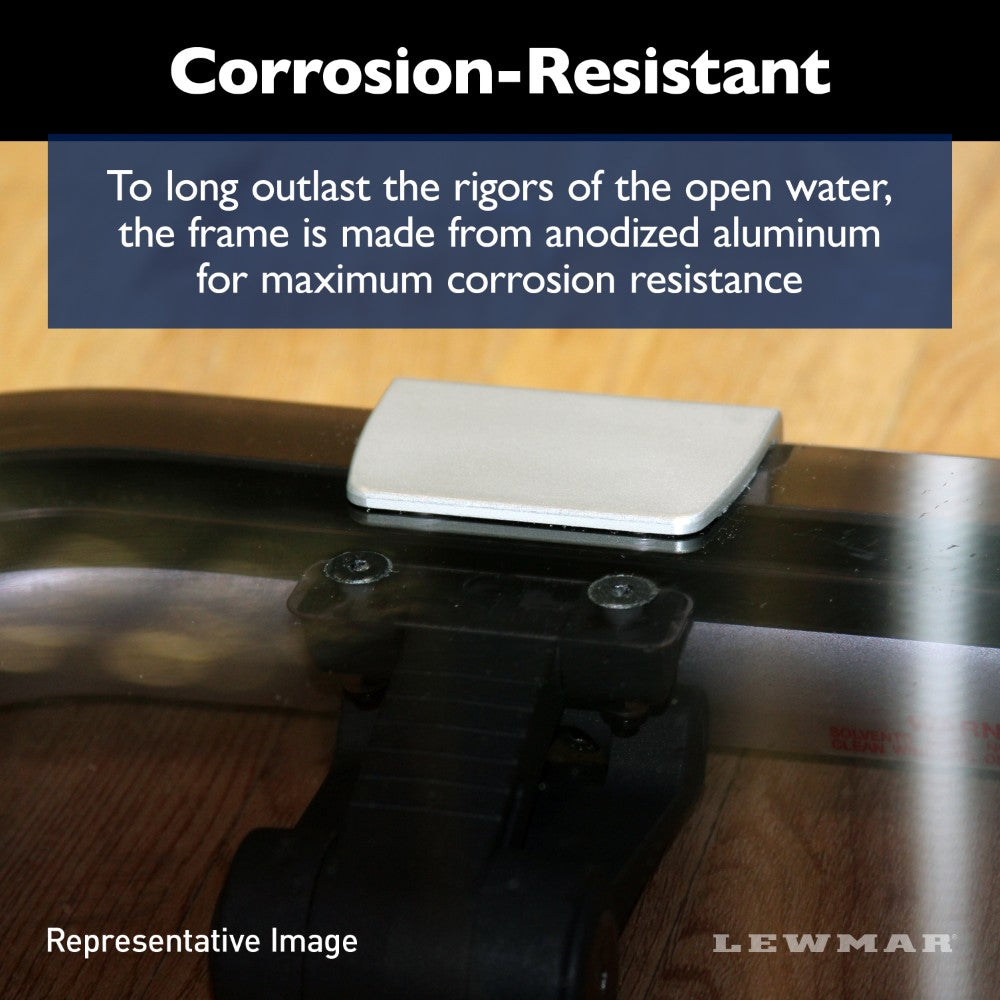

  • Anodised aluminium frame for corrosion resistance
  • Curved upper frame profile for strength as well as modern styling
  • Available in Round and D-Hatch configuration
  • Full range of spare parts available

Knowledge Base

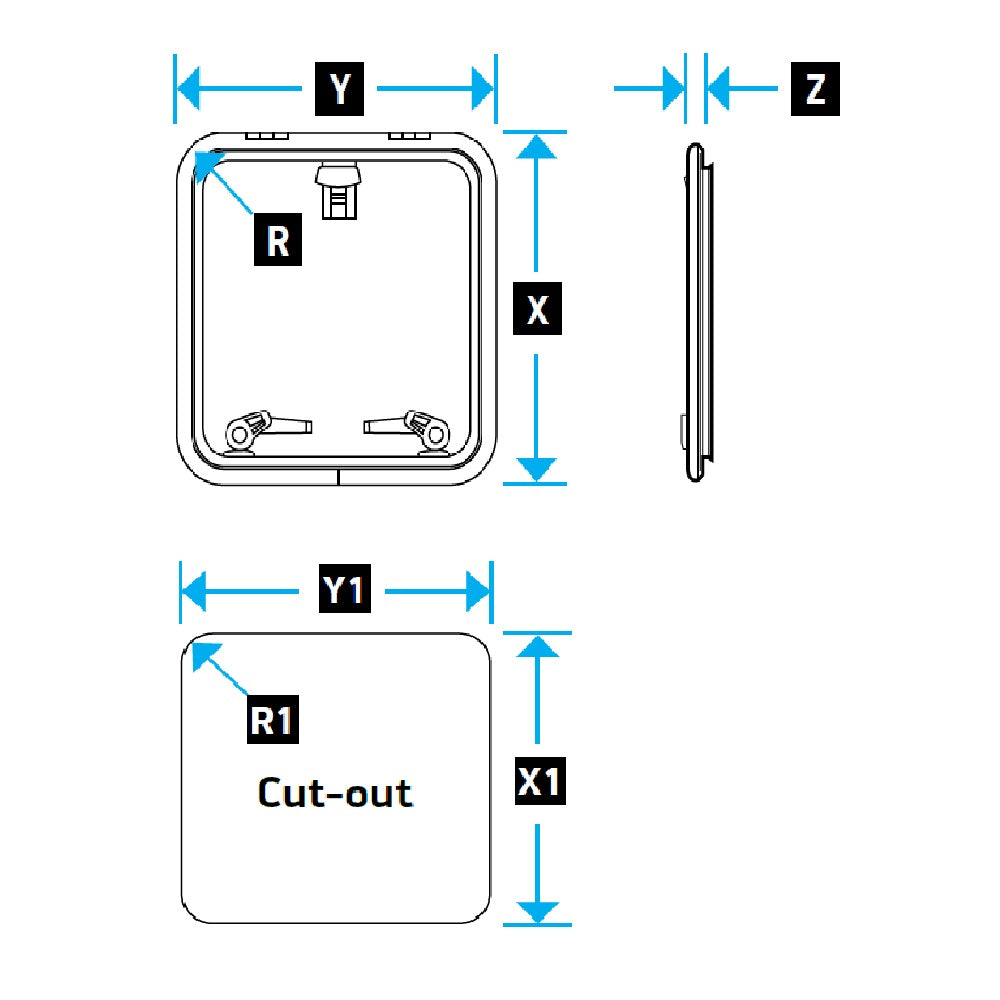

Technical Information


DescriptionImperialMetric
Size30.0030.00
Lower Frame Flang9/16 in.15.00 mm.
X (Lenght)15 5/8 in.397.00 mm.
Y (Width)20 3/4 in.527.00 mm.
Z (Height)1.00 in.25.00 mm.
R (Radii)2 6/7 in.72.50 mm.
X1 (Length)12 7/8 in.327.00 mm.
Y1 (Width)18.00 in.457.00 mm.
R1 (Radii)1 11/16 in.42.50 mm.
Acrylic Window Thickness5/16 in.8.00 mm.
Hatch Weight9.30 lb.4.20 kg.
