Jabsco  |  SKU: JAB-45490-1000  |  Manuf. Code: 45490-1000

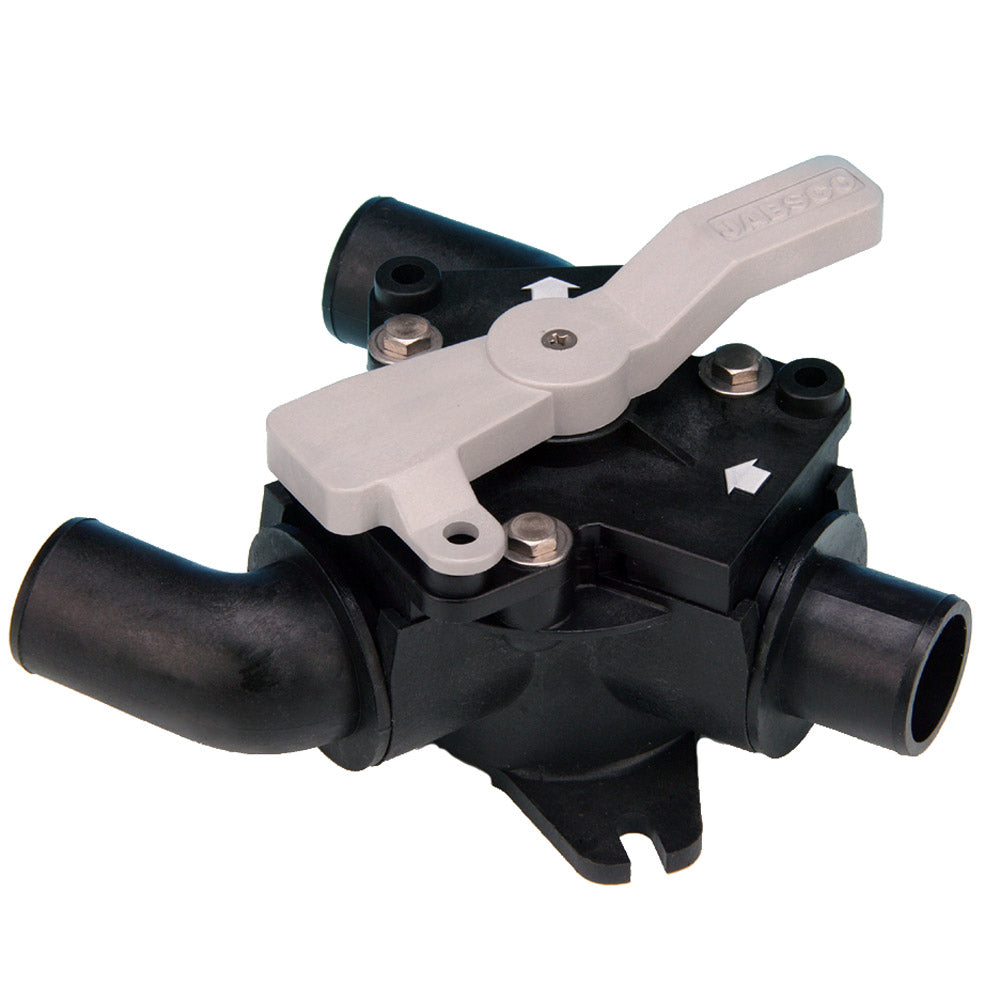

Jabsco Y-Valve

$98.99 USD $109.99

Description

The Jabsco Y-Valve #45490-1000 is a versatile solution for managing waste on your boat. It can direct waste into an onboard holding tank or overboard, where regulations permit. Its design allows for secure locking, ensuring compliance with no-discharge zones.

Features & Benefits

  • Diverts waste to holding tank or overboard discharge
  • Lockable for compliance with no-discharge zones
  • Can be used in bilge pumping systems

Constructed from durable materials suited for marine environments, the Jabsco Y-Valve is compatible with various waste management systems. It is designed to fit standard waste lines and bilge pump configurations, ensuring seamless integration with existing setups.

Usage

Ideal for boaters needing flexible waste management solutions, the Y-Valve is perfect for directing waste within regulatory limits or managing bilge water from multiple compartments efficiently.

Features

Features:

  • Chemical and corrosion resistant polypropylene and stainless steel construction.
  • Selector lever can be padlocked (lock not included) and/or sealed in either position.
  • Ports can be rotated so discharge plumbing can be routed away in parallel, at 900 or in opposite directions, or either up or down without disassembly.
  • Valve is supplied with both 1-1/2" (38 mm) ports (fitted) and extra 1" (25 mm) straight inlet port.
  • Optional shaft extension allows valve to be mounted through a bulkhead up to 1-3/4" thick with only the selector handle exposed.
  • Self cleaning design provides trouble free operation.
  • Molded in flow direction indicator arrows.
  • Easy access to three sturdy mounting feet for quick and simple installation.
  • Easy access to valve by removal of just three hex head machine screws, top cover and diverter assembly lift away from the body.

Technical Information


DescriptionImperialMetric
FittingConnections for two 1 1/2 in. ports and extra 1.00 in. straight inlet portConnections for two 38.00 mm. ports and extra 25.00 mm. straight inlet port
Long7 5/8 in.200.00 mm.
Wide7 1/4 in.190.00 mm.
High4 5/8 in.120.00 mm.
Weight2.00 lb.0.90 kg.
