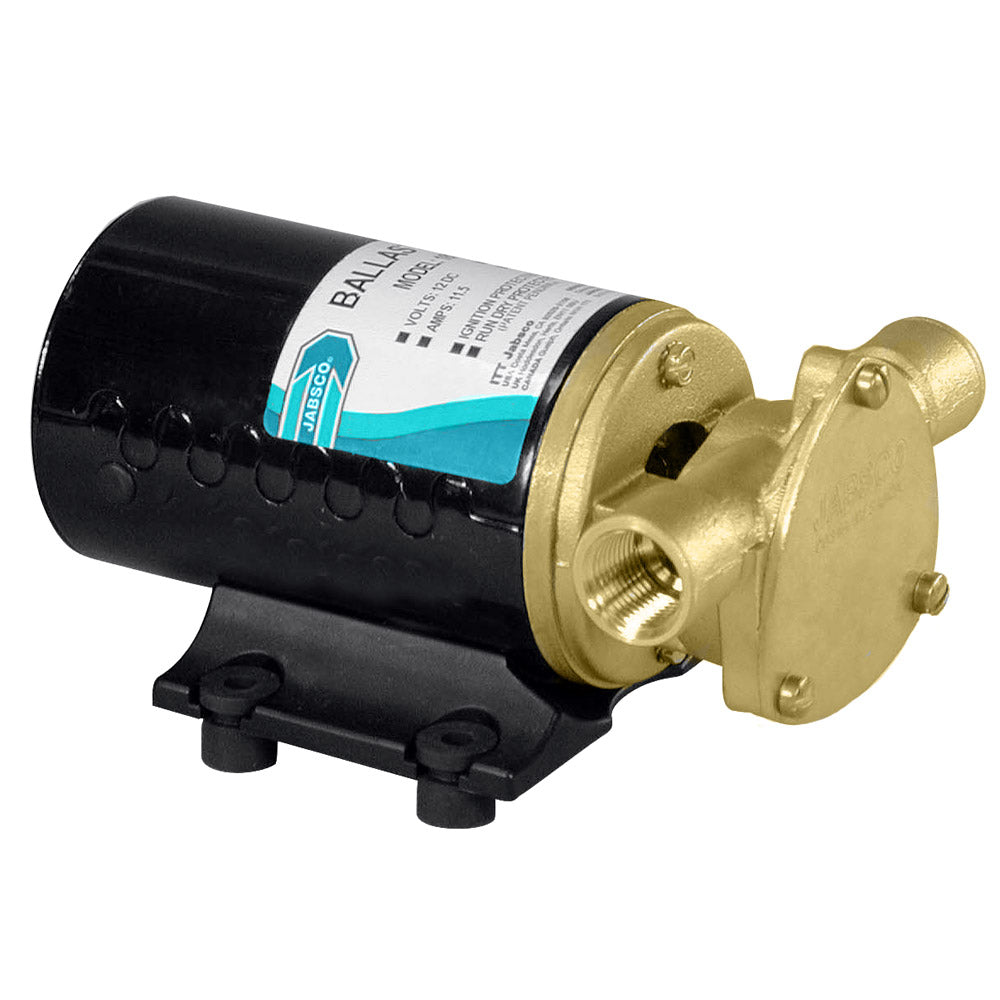

Jabsco Wakeboard Ballast Puppy w/Reversing Switch - 12V - 9GPM
Jabsco Wakeboard Ballast Puppy w/Reversing Switch - 12V - 9GPM is backordered and will ship as soon as it is back in stock.
Description
Description
Ballast Pump
Today's Wakeboard and Ski tow boats need to be able to take on water ballast to modify their wake formation. A development of our tried and tested Puppy Pumps lets these specialist craft rapidly take on and dump ballast, while modern electronics guard against dry running damage to the impeller.
The choice of motor boat builders for ski and wakeboard ballast systems.
Our Part # JAB-18220-1127 | Jabsco Part # 18220-1127
Features
Features
Features:
- Includes Run-Dry Protection Device
- 9 GPM (34 LPM) flow rate.
- Approximately 80 pounds of water ballast per minute
- Self-priming to 3'
- Reversible pump both fills and empties ballast tanks
- Reversing switch
- Ignition protected
Ports:
- 1" (25mm) hose barb external
- 1/2" NPT internal.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Connections | 1.00 in. hose barb or 1/2 in. NPT internal thread | 25.00 mm. hose barb or 13.00 mm. NPT internal thread |
Long | 7 1/8 in. | 180.00 cm. |
Wide | 4 3/4 in. | 120.00 mm. |
High | 3 5/8 in. | 120.00 cm. |
Output | up to 9.00 gal./min. | up to 40.00 l./min. |
Weight | 6.00 lb. | 2.70 kg. |
