Imtra Converters & Reducers - Converter DC/DC LED Series - 90-264VAC Input - 24VDC Ouput - 450W
Imtra Converters & Reducers - Converter DC/DC LED Series - 90-264VAC Input - 24VDC Ouput - 450W is backordered and will ship as soon as it is back in stock.
Description
Description

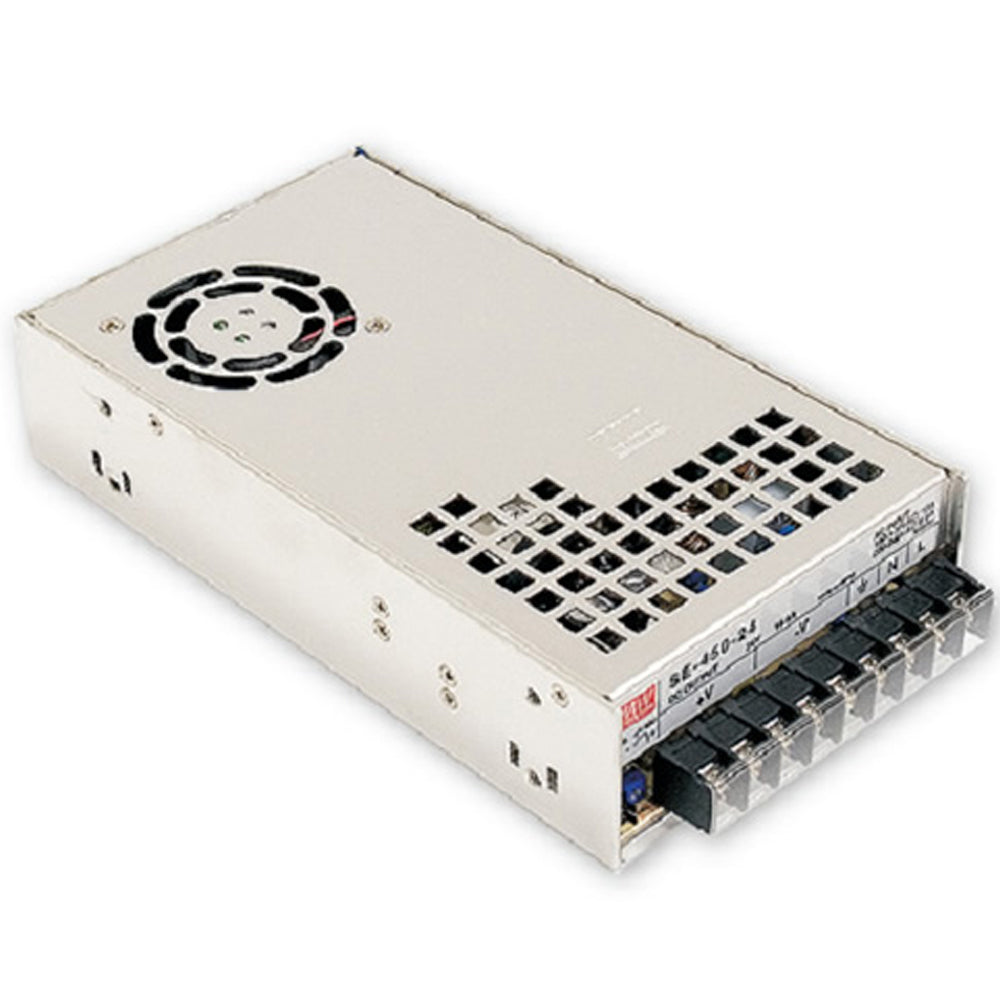

LED Converter: 90-264VAC to 24VDC, 450W.
The SE-450 Power Supply features a universal selectable AC input (90-264VAC) and adjustable DC output (21.6-28.5VDC) providing clean voltage-regulated DC power; ideal for sensitive electronics and LED lighting.
Our Part # IMTILLED450WDC24V | Mfr. Part # IL-LED450WDC24V
Features
Features
- Selectable AC input.
- Adjustable DC output.
- Short circuit & over-current protection with auto-reset.
- Over temperature protection with auto-reset.
- Active surge current limiting.
- Forced air cooling - DC ball bearing fan.
- Compliant to worldwide safety regulations.
Technical Information
Technical Information
Description | Specs |
---|---|
Input Voltage | 90-264VAC (115V/230V selectable) |
Power Capacity | 450 W. |
Output voltage | 24 VDC. |
Max Operating Temperature | 122° F (50° C) |
Operating Frequency | 47-63Hz |
Max Housing Temperature | 176° F (80° C) |
Electrical Protections | Short Circuit, Over Current, Over Voltage, Thermal |
