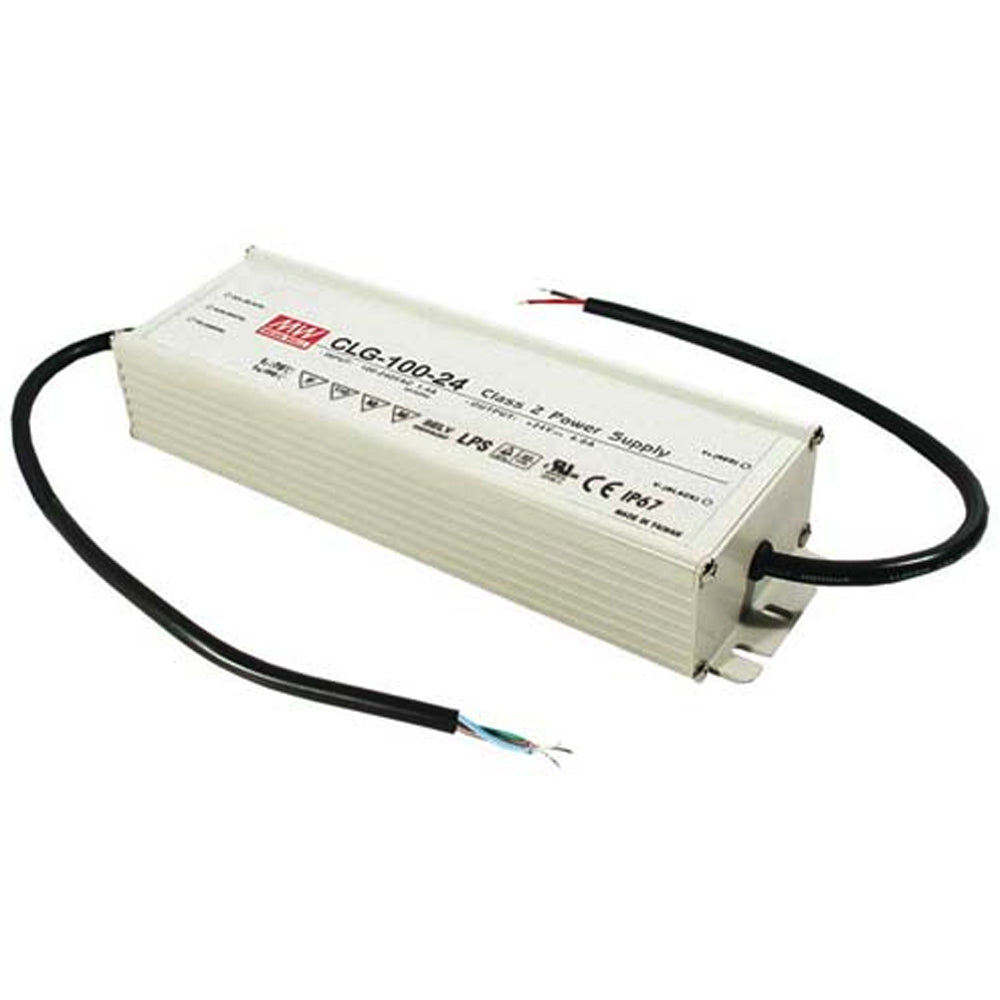

Imtra Converters & Reducers - Converter AC/DC LED Series - 90-264VAC Input - 24VDC Ouput - 100W

SKU: IMTILLED100WDC24V  |  Manuf. Code: IL-LED100WDC24V
$165.82 $143.95 USD

Description

LED Converter: 90-295VAC to 24VDC, 100W.

This LED Converter is a voltage-regulated AC to DC power supply. It features resettable short circuit protection, thermal regulationand adjustable over-current protection. It accepts a universal input voltage of 90-295VAC (47-63Hz) and supplies a steady current-controlled output of 24VDC allowing safe and reliable operation of your low voltage LED devices.

This LED converter allows small DC LED products to be safely used when the only supply voltage available is line voltage AC.

Our Part # IMTILLED100WDC24V | Imtra Part # IL-LED100WDC24V

Features

Features:

  • Universal Supply Voltage: 90-295V (47-63Hz)
  • Constant current control.
  • Power factor correction.
  • Fully isolated IP64 level plastic case.
  • Adjustable over current protection.

Technical Information


DescriptionSpecs
Input Voltage90-264VAC (47-63Hz)
Power Capacity100 W.
Output voltage 24 VDC.
Max Operating Temperature122° F (50° C)
Max Housing Temperature158° F (70° C)
Electrical ProtectionsShort Circuit, Over Current, Over Voltage
