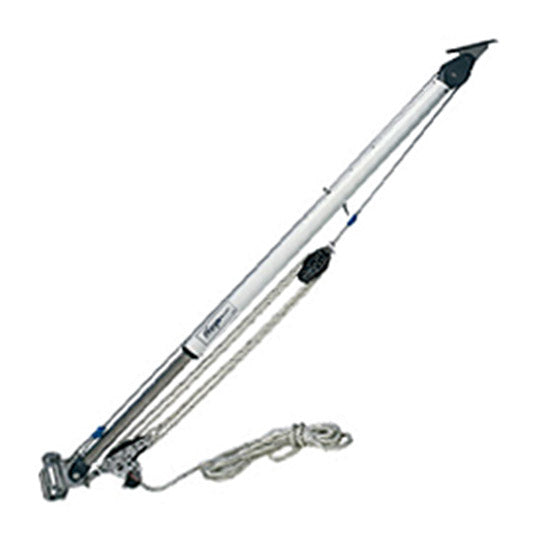

Forespar Rigid Boom Vang - Yacht Rod Large - Boat Size: 41 ft (12.5 m) to 45 ft (13.7 m)

Precision design in three sizes. Excellent vang/boom support for performance cruising and racing. White powder coated aluminum & polished stainless steel. Supplied with spectra cable ready to add your tackle system. Your 4:1 equals 8:1 when installed on Yacht Rod™ . Can be led to small winch for additional power. Spring return holds boom. Brackets for mast and boom sold separately. Mast and boom fittings are listed below.

• Eliminates need for boom topping lift.
• Supports boom in light air and when reefing and lowering the mainsail.
• Faster than hydraulics - No messy hydraulics to leak.
• More efficient than conventional tackles.
• Tubing is white coated anodized 6061-T6 aluminum and electropolished 316 stainless steel.
• Precision machined 6061-T6 aluminum clevis ends, sheaves and Nylatron® bearings.
• Precipitation hardened stainless steel spring with fast-pin adjustment - rated for over 1 million compressions
• No gas spring to lose its charge.

Note of Caution: Oversheeting or leaning heavily on aft end of boom can bend the boom or the Yacht Rod™. The main halyard shackle should be snapped to the outboard boom end, in port, to prevent damage to the Yacht Rod™.

Part Number: 352050

Our Part # FOR352100 | Forespar Part # 352100

Stroke: 11 1/2 in
Pin to Pin (min): 66 1/2 in
Pin to Pin (max): 80 in
Adjustable Distance: 13 1/2 in
Pin Size: 5/8 in
Jaw Width: 11/16 in
Max Return Force: 1450 lb
Weight: 17 lb
