Cyclops Marine  |  SKU: CYC-SMRTUNE58  |  Manuf. Code: TS58B

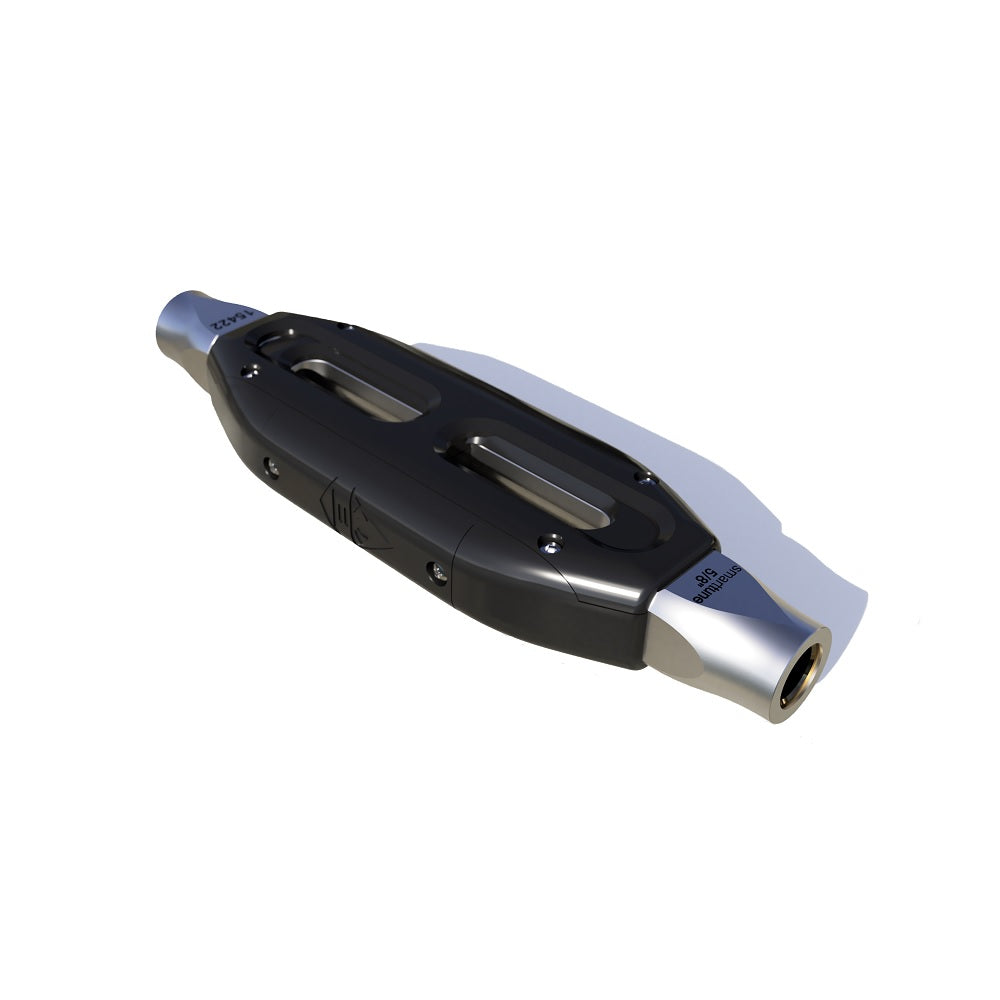

Cyclops Marine Smarttune® 5/8 in (8.0 - 10.0 mm)

$2,270.00 USD

Description

Smarttune harnesses the latest technology to give you a simple to install, wireless load sensor that accurately measures your stay tension in real time. Live and dynamic rig loading is transmitted either to your mobile via a dedicated app or to your boat electronics. This allows you to measure and repeat your fastest settings, controlling your forestay "sag" to manage your headsail shape and your mast bend by knowing your compression driver and so managing your mainsail shape. For the very best performance in all winds and sea conditions.

  • Simple to fit.
  • Wireless.
  • Mobile app and marine electronics compatible.
  • Factory calibrated.
  • Cutting edge technology.
  • Cost effective.

Our Part # CYC-SMRTUNE58 | Cyclops Marine Part # TS58B

Features

  • Easily replaces existing rigging turnscrew.
  • Waterproof beyond IP68.
  • 2x AAA batteries power supply.
  • Approx. 16 months battery life.
  • Adjustable data rate via smartfittings app.
  • Wireless connection to your phone via the smartfittings app.
  • Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX.

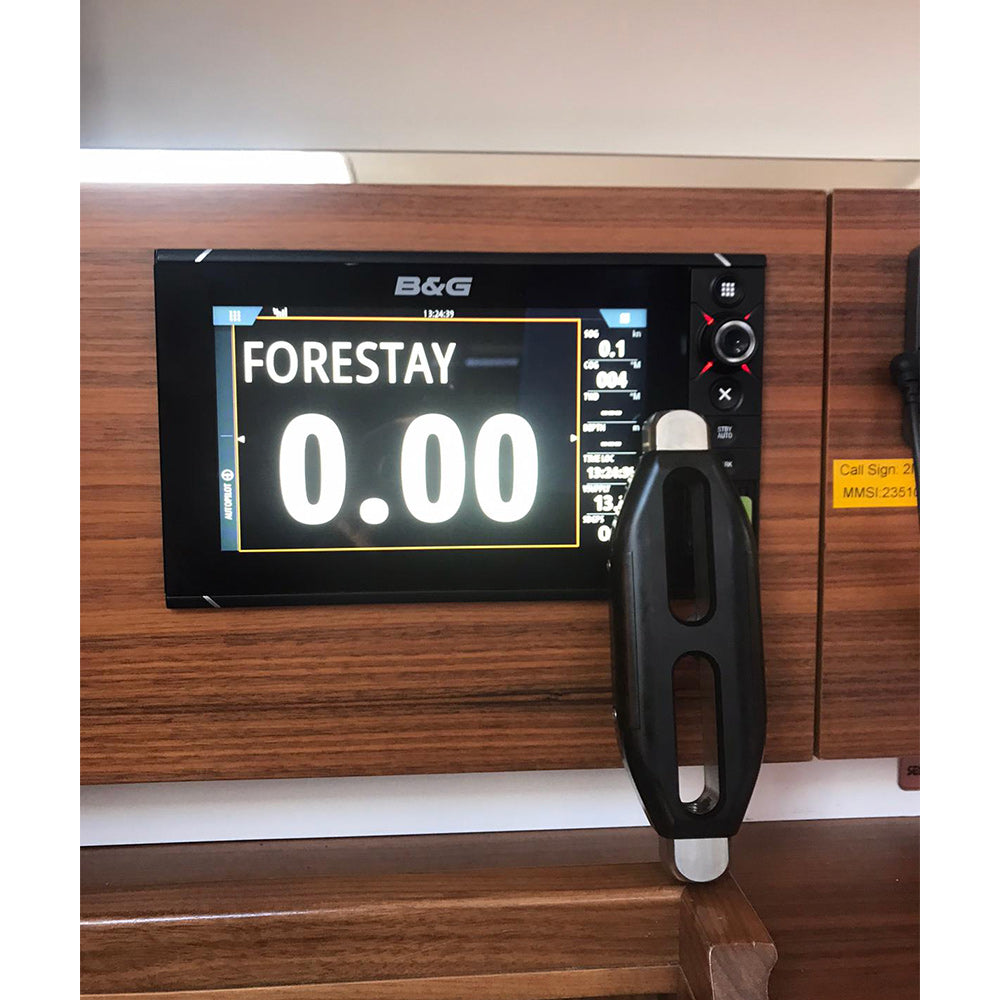

  • Wireless connection to wired boat electronics via the Cyclops gateway.
  • Data log for analysis stored in smartfittings app and Cyclops gateway.
  • Lightweight and low windage.
  • Accurate to +/- 1% of maximum working load.
  • Designed to fit rigging with relevant working loads.

Knowledge Base

Click on the following technical articles to find relevant information about Cyclops smarttune® below:

Technical Information


DescriptionImperialMetric
Thread Size5/8"15.88 mm.
Calibrated Load 4.19 US Ton.3.8 Ton.
Breaking Load10.47 US Ton.9.5 Ton.
Sensor Dimensions2.56 x 2.06 x 1.22 in.65 x 230 x 31 mm.
Sensor Weight1.37 lbs.620 gr.
Batteries2 x AAA batteries power supply.

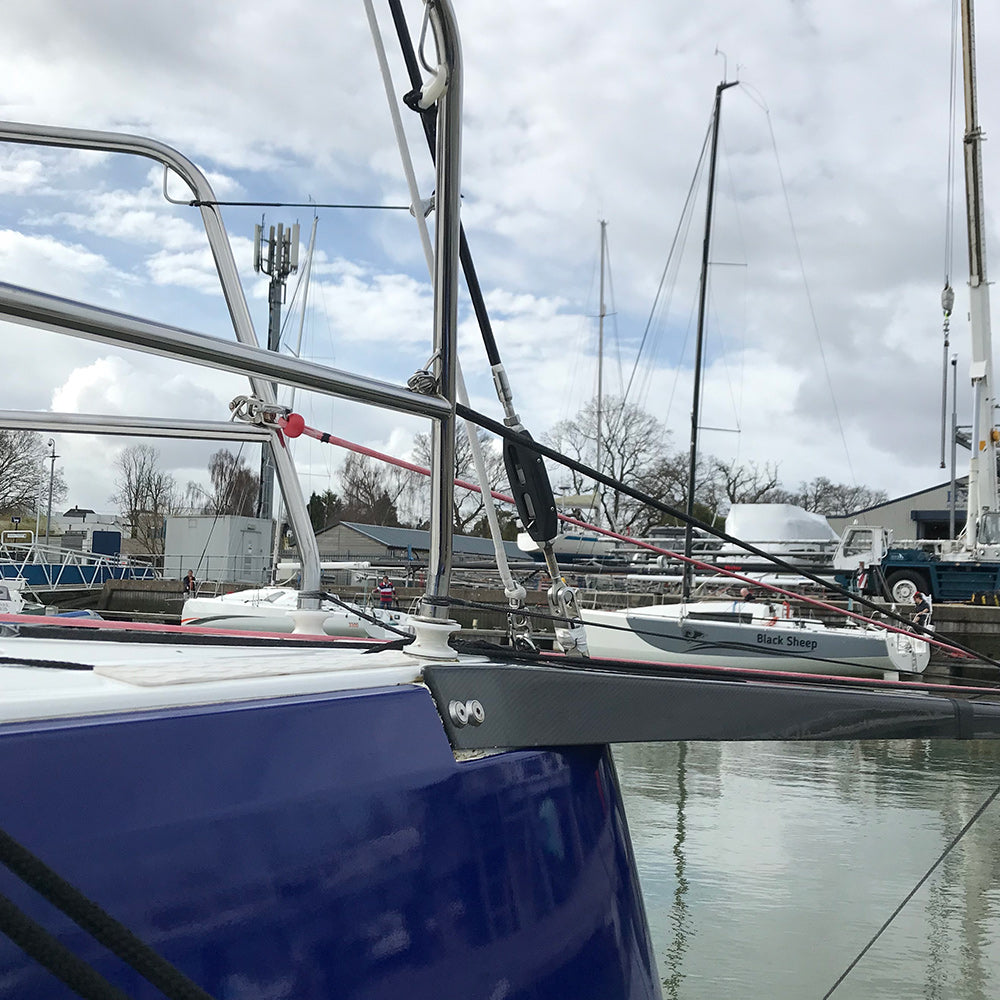

Additional InformationDesigned for quick installation into standing rigging such as forestay/backstay/shrouds/diagonals.

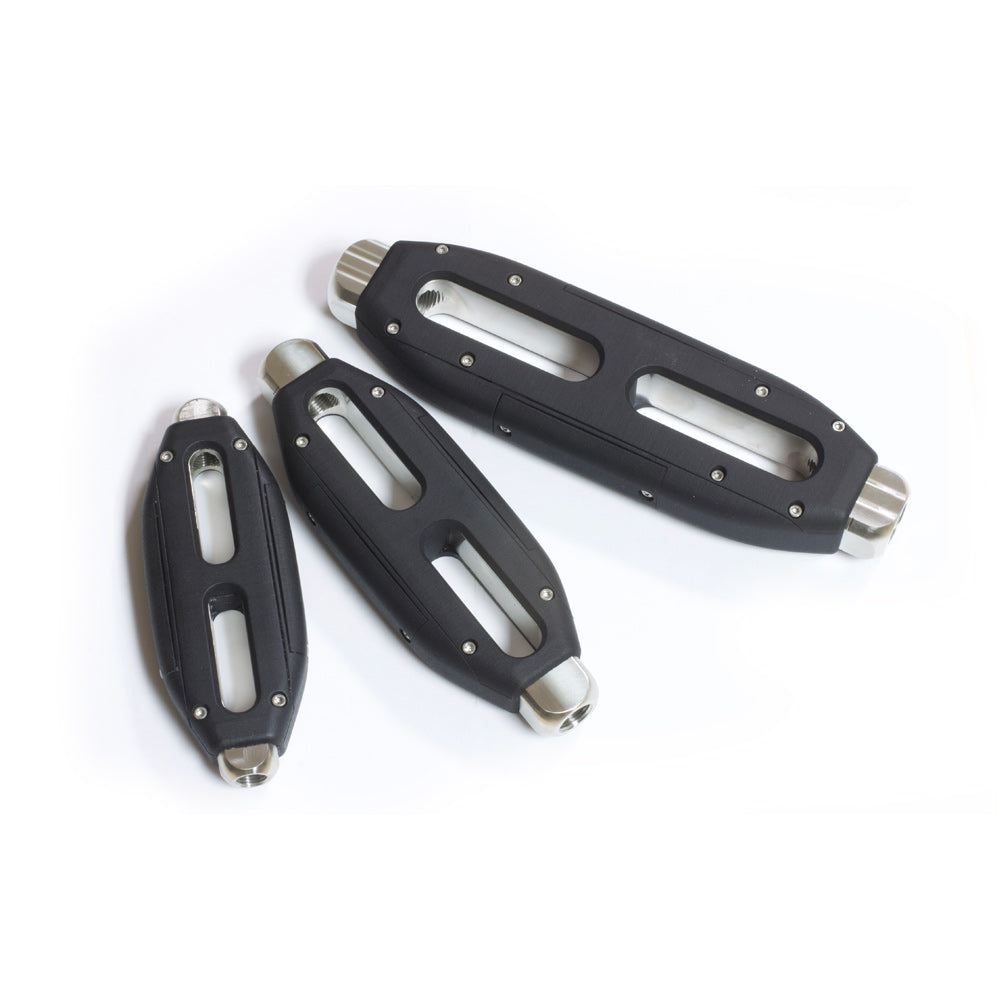

Sensor size represents turnscrew/thread diameter.
