Cyclops Marine  |  SKU: CYC-SMRTOGGLE45  |  Manuf. Code: FE-02

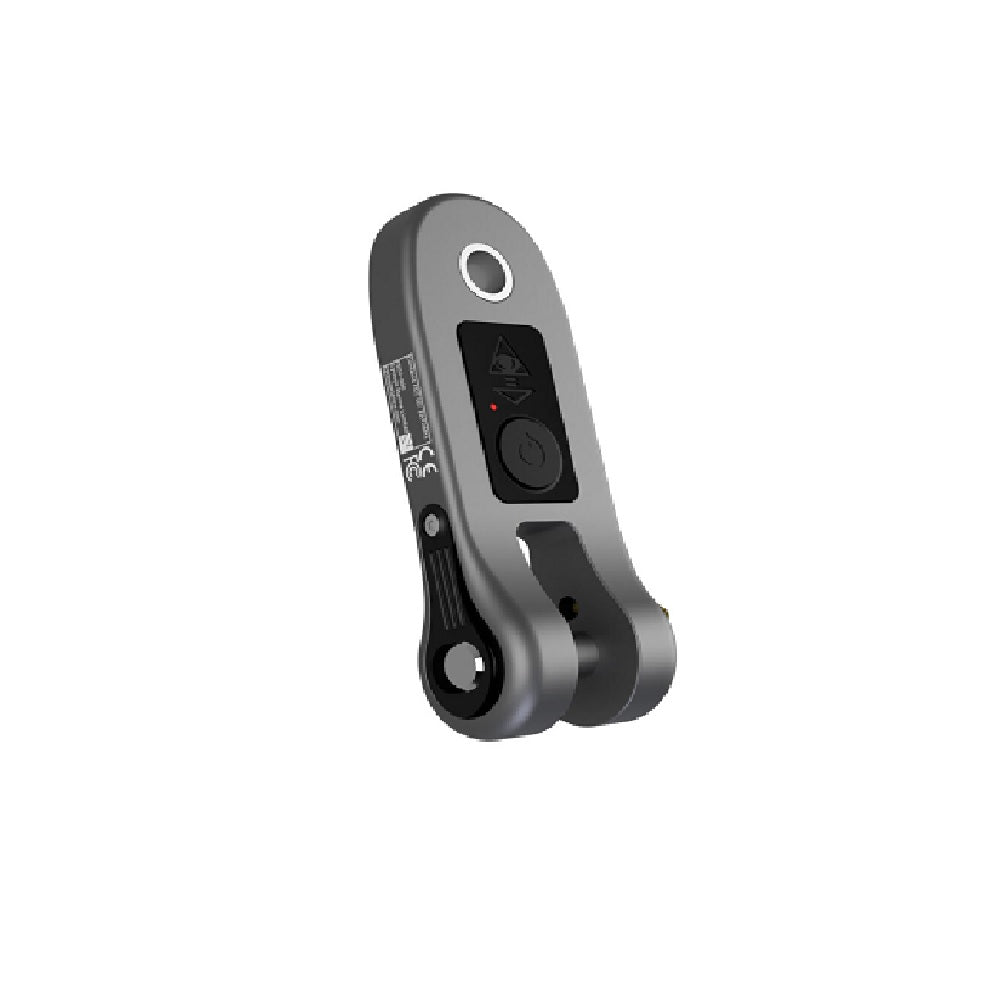

Cyclops Marine Smarttoggle® 4.5T

$1,950.00 USD

Description

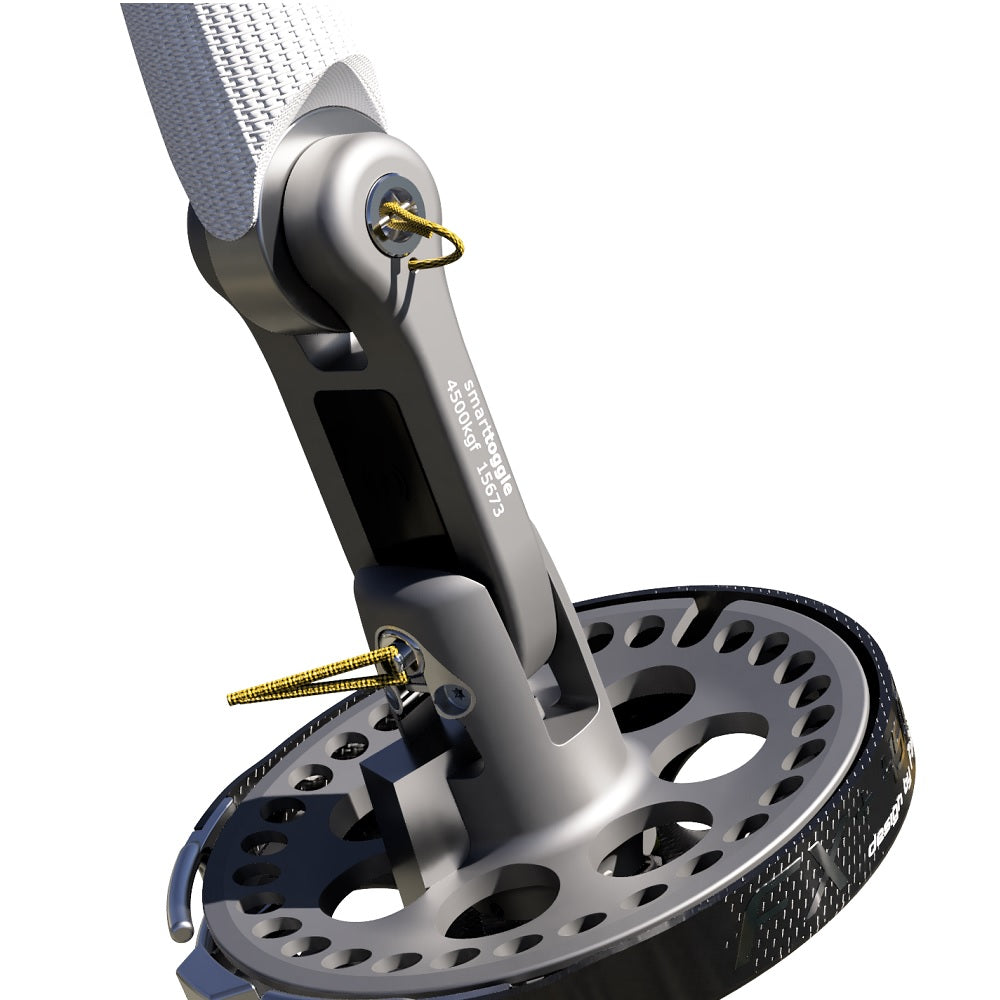

smarttoggle® 4.5T aims to bring you the smallest, lightest, and strongest wireless load sensor. Manufactured from Aluminium, precision designed for non-structural furlers.

  • Ensure best furling performance every time
  • Hit and repeat fast luff loads
  • Adjust luff load as windspeed and angles change to known targets
  • Log loads for post sailing analysis

Multiple sensors can be viewed on either our highly intuitive App or via the Cyclops Gateway to your boats displays.
Truly "plug and play" for immediate install, complete with a smart power button feature for longer battery life and inbuilt napping mode. Accurately calibrated to give you repeatable settings, Cyclops load sensors are the preferred sensing devices for leading America's cup team Ineos UK, as well as several Olympic and IMOCA teams.

Our Part # CYC-SMRTOGGLE45 | Cyclops Marine Part # FE-02

Features

Highly Accurate Load Sensing For Non-Structural Furlers

  • Precision designed for low weight, low windage.
  • Factory Calibrated and accurate to +/- 1% of maximum working load.
  • Durable and waterproof beyond IP67.
  • With the latest wireless charging technology, providing 2,000 hours of battery life from a single charge. (Up to 500 days onboard in napping mode).
  • Built-in smartbutton preserves battery life, so that device only stays on when needed.
  • Pair with smartfittings app for logging and analysis.
  • Pair with your smartphone to view live loads and log data for analysis through the free app.
  • Connect to on-board displays via Cyclops Gateway

Knowledge Base

Click on the following technical articles to find relevant information about Cyclops smarttoggle® below:

Technical Information


DescriptionImperialMetric
Max. Working Load4.96 US Ton.4.5 Ton.
Sensor Dimensions5.51 x 1.99 x 1.38 in.140 x 50 x 35 mm.
Sensor Weight0.51 lbs.230 gr.
Pin Diameter0.47 in.12.0 mm.
