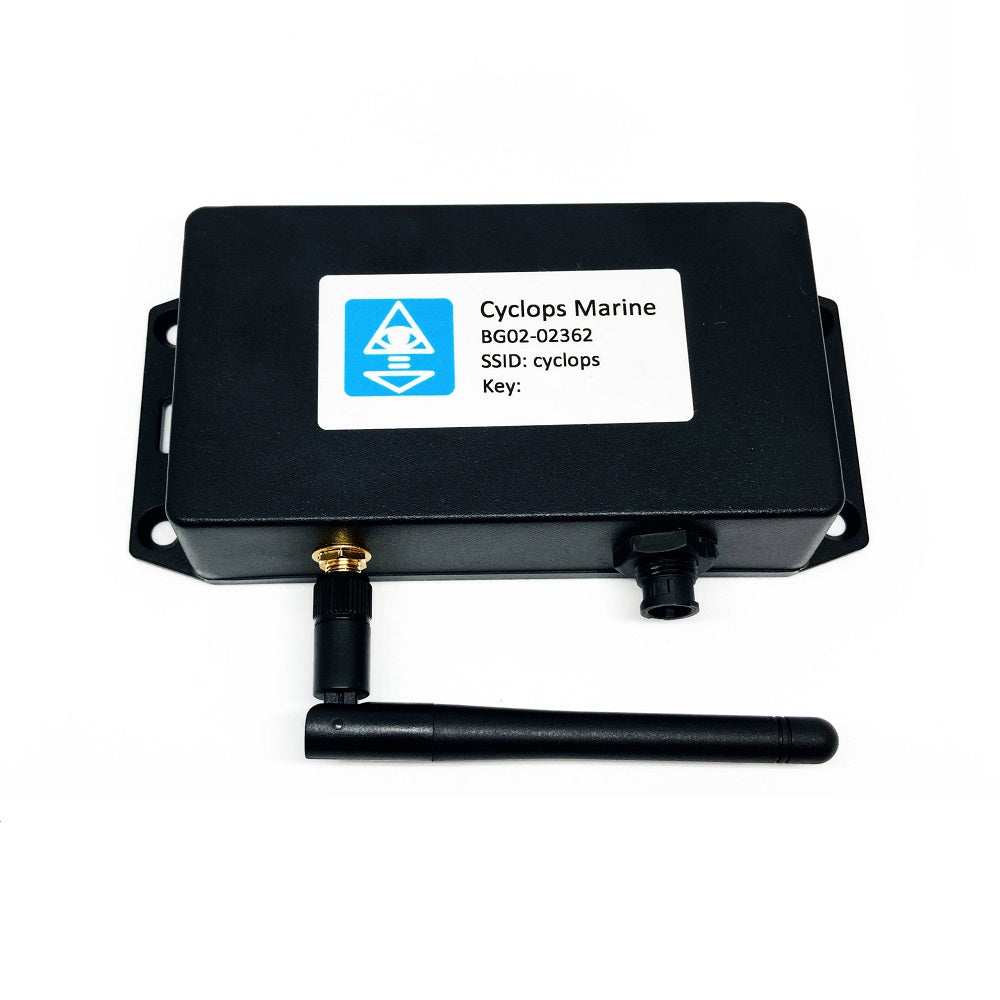

Cyclops Marine Gateway & Lead

The Cyclops Marine Gateway & Lead #BG03 is your go-to device for seamlessly integrating load data into your boat's existing marine electronics. It's like having eyes on the load data from anywhere on your vessel, ensuring you're always informed without the hassle. Designed to be simple and effective, it plugs directly into your marine displays, making your sailing experience smoother and more connected.

Features & Benefits

• IP54 waterproof rating for versatile mounting options
• Connect up to 50 sensors for comprehensive data collection
• Easy integration with a WiFi web interface for quick setup
• Compatible with most modern marine electronics
• Data logging and export capabilities for enhanced sailing analytics

This marine gateway is crafted to be robust and reliable, with a waterproof design that suits below-deck installations or mounting on the forward bulkhead. It supports integration with up to 50 sensors, ensuring you can monitor various data points effortlessly. The gateway also offers easy configuration through a WiFi web interface and is compatible with a wide range of marine electronics, making it an essential tool for modern sailors. Additionally, its data logging feature allows for easy downloading and exportation, perfect for analyzing your sailing performance with specialized software.

Usage

Simply plug the gateway into your existing marine electronics network, add new sensors using the WiFi web interface, and configure your displays to show live load data, optimizing your sailing experience.

Frequently Asked Questions

What is the Wireless connection and range between the sensor and the Gateway/app?
The sensor broadcasts the load data wiressly, with a theoretical range of no more than 100m unobstructed, but this is unlikely due to the plastic and metal components of the sensors. If there is any boat/mast/sails/people between the sensor and gateway or smartphone (if using the app), this will be reduced. In reality a range of 40m line of sight is possible. You can program the gateway to listen for your specific sensor by connecting to the WiFi network printed on the top of the gateway. Please contact us for instructions. We recommend that the gateway is installed below decks as close to the sensor as possible. For example, for a smarttune sensor installed on the forestay, the ideal location is on the forward face of forward bulkhead.

Will I ever need to pair the sensor and gateway/app? Can I add sensors to my existing gateway?
Yes, you will need to program the gateway or smartphone app to listen for the sensor (if this hasn’t been done already). The sensor is designed to broadcast like an FM radio, and the gateway/app will listen to the sensor(s) that have been added using the 12 character data key supplied with the sensor. Once programmed there is no active pairing required like a cellphone and wireless headphones. Please contact us for instructions on how to add additional sensors to a gateway.

Will the sensor and gateway work with my marine electronics?
The gateway can output to any modern marine instruments that support the NMEA2000 standard and specifically PGN65293, such as B&G H5000 range and Sailmon. We are in the end stages of assuring compatibility with NKE instruments. Installation is plug and play into your chosen instrument system backbone. Please consult with your instrument supplier or marine electrician to ensure compatibility. For older instruments, we are working on supporting the NMEA0183 standard. Unfortunately because this is an obsolete standard (from 1983!) with many revisions, we are unable to guarantee compatibility with all instruments, especially because systems of this age may be made up of components from multiple suppliers.

Is the gateway waterproof?
The gateway housing and cable are IP54 rated, meaning they have limited protection against dust ingress, are protected against splash water from any direction, but not immersion – please do not submerge it! It is recommended that the gateway is installed below decks.
