Vetus Stainless Steel Cleat Type TAURUS 7 - 10.0 in (250.0 mm)
Vetus Stainless Steel Cleat Type TAURUS 7 - 10.0 in (250.0 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Those retrofitting or upgrading their boat's deck cleats can greatly improve the installation with a little attention given to topping and backing plates. The exact shape of these topping and backing plates depends upon available space and deck shape, but the underlying principal is to provide a load-spreading capacity both above deck and below.
Our Part # VTSTAURUS07 | Vetus Part # TAURUS07
Technical Information
Technical Information

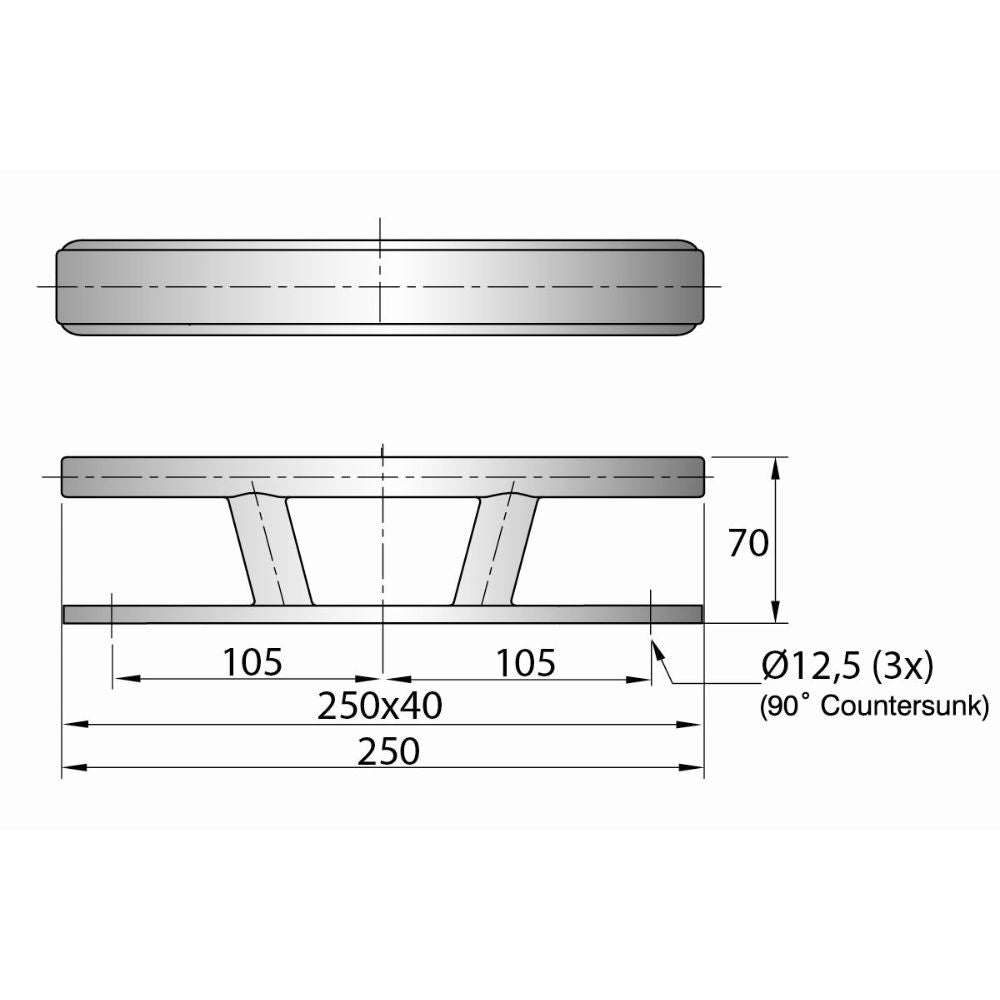

Description | Imperial | Metric |
---|---|---|
Safe Working Load | 7936.00 lbf. | 3600.00 kgf. |
A | 9 5/6 in. | 250.00 mm. |
B | 2 3/4 in. | 70.00 mm. |
C | 9 5/6 x 1 4/7 in. | 250.00 x 40.00 mm. |
D | 4 1/7 in. | 105.00 mm. |
E | 3.00 x 12.50 | 3.00 x 12.50 |
