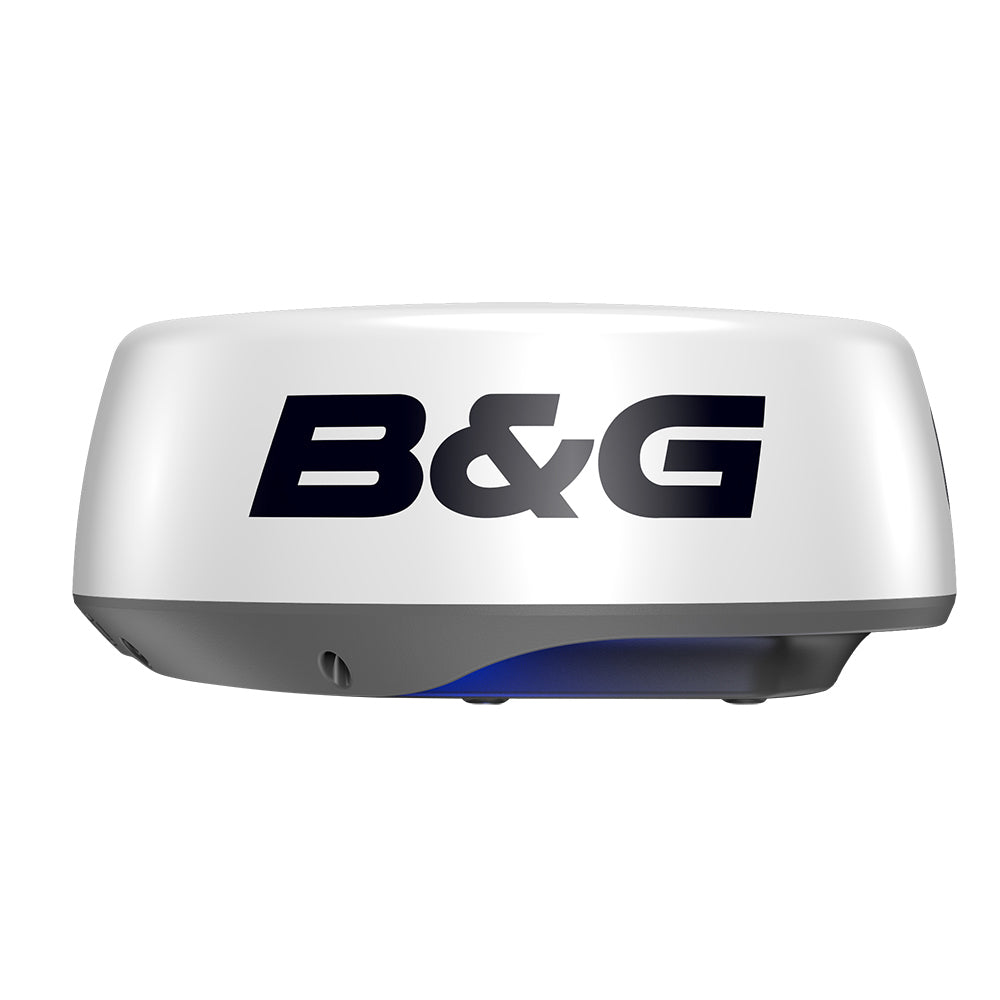

B&G HALO20+ 20 in. Radar Dome with 20m (65.62ft.) Cable
B&G HALO20+ 20 in. Radar Dome with 20m (65.62ft.) Cable is backordered and will ship as soon as it is back in stock.
Description
Description
The B&G HALO20+ 20 in. Radar Dome with 20m (65.62ft.) Cable #000-14539-001 is a marine radar system that offers high-performance detection for your sailing adventures. This compact radar is perfect for mid-sized to large sailboats, giving you a clear view of both near and distant targets with its advanced features. The easy-to-use design and fast startup make it a reliable choice for any sailor.
Benefits
- Dual Range mode for monitoring both short and long distances simultaneously
- 360-degree sweep every second with 60 RPM rotation up to 1.5 nautical miles
- VelocityTrack Doppler technology for color-coded target tracking
- Instant wake-up from low-power standby mode
- Multiple radar modes for different environments: harbor, offshore, weather, and custom
This marine radar system features a 20-inch dome antenna and includes a 20-meter (65.62 feet) cable. It uses pulse compression technology and beam sharpening for better target separation. The HALO20+ is designed to offer precise and fast updates, ensuring a safe sailing experience.
Usage
The HALO20+ is ideal for sailors who need a reliable radar system for collision avoidance and weather monitoring. It's especially useful when navigating busy waters or when keeping track of fast-moving objects on the sea.
Our Part # BNG-000-14539-001 | Mfr. Part # 000-14539-001
Features
Features
- 36 nm range: Compact 20-inch dome
- Advanced pulse compression technology: With beam sharpening
- Simultaneous dual range operation: Sees both far and near targets
- Ultra-fast 60 RPM operation: Effective up to 1.5 nm
- VelocityTrack Doppler technology: Helps avoid collisions
- Easy operation: Harbour, offshore, weather, and custom modes
- MARPA target tracking: Up to 10 targets, 20 in dual range
- Instant readiness: Ready to use from standby mode
- Low power consumption
Technical Information
Technical Information
Description | Specs |
---|---|
Power Consumption typical | 20 W. |
Recommended Fuse Rating | 5 A. |
Supply Voltage | 10.5 - 31.2 VDC (12/24V systems) |
Humidity | 95% RH at 35°C (95°F) |
Operating Temperature Range | -25° to + 55°C (-13° to +130°F) |
Waterproofrating | IPX6 |
Beam width | 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V |
Radar Modes | Harbour, Offshore, Weather, Bird Dual Range, North Up Course Up, Relative motion, True Motion |
Radar Technology | Pulse Compression |
Rotation speed | Up to 60 RPM (Range Dependent) |
