Antal  |  SKU: ANTXT16R  |  Manuf. Code: XT16R

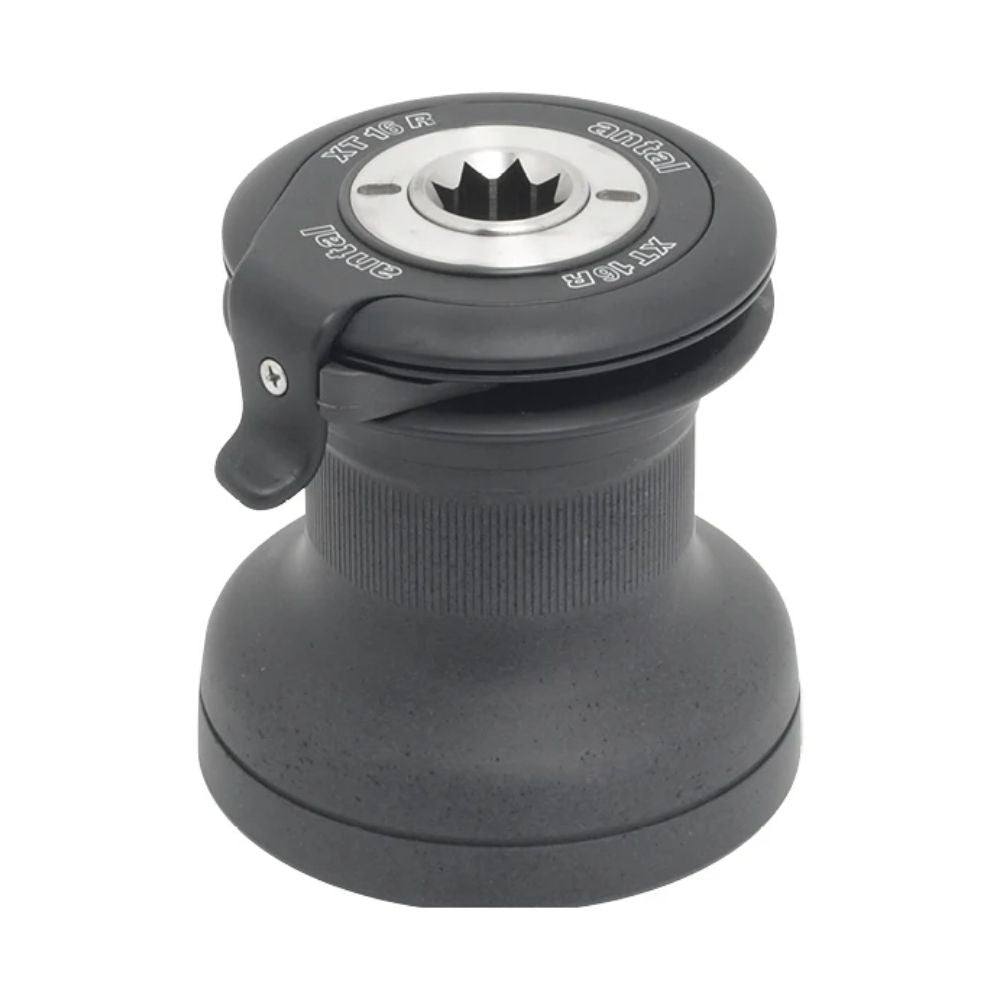

Antal Self Tailing Winch Race XT Size 16 - Aluminum Black / One Speed

$596.00 USD $662.22
Special Order Item: 8 - 10 weeks.

Description

XT R is the racing winch series obtained from the standard XT series. Self-tailing XT system, differentiated grip of the drum knurling, CNC base and skirt, fast opening screwed ring, axle with low friction PVD finishing.

And in addition to reduce the weight: aluminium stem, peek roller bearings for the drum and the main shaft lightened gears and main shaft. To reduce weight, XT series winches are mounted on bearings with peek resin roller on an aluminium stem. Antal alloy gears mounted on low-friction and hard wearing PVD treated axles; corrosion-proof insulating gaskets. The base, machined by the CNC process (produced with computer numeric control machines with no cast components), is lighter and stronger than normal castings.

Our Part # ANTXT16R | Antal Part # XT16R

Features

Features:

  • XT ST race winch
  • Power 16
  • One speed (reduced)
  • Black aluminum drum

Technical Information


DescriptionImperialMetric
Height4 2/3 in.119.00 mm.
Base4 2/5 in.112.00 mm.
Drum2 4/5 in.71.00 mm.
Weight4.30 lb.1.95 kg.
Power 1 14.0014.00
Recovery (manual use) 14 1/2 in.115.00 mm.
Min line1/4 in.6.00 mm.
Max line2/5 in.10.00 mm.
Fixing screws1/5 x 1/4 in.5.00 x 6.00 mm.
Gear ratio 12 : 12 : 1
