Mantus Anchors  |  SKU: MAT-SSA155LB  |  Manuf. Code: MANSS155

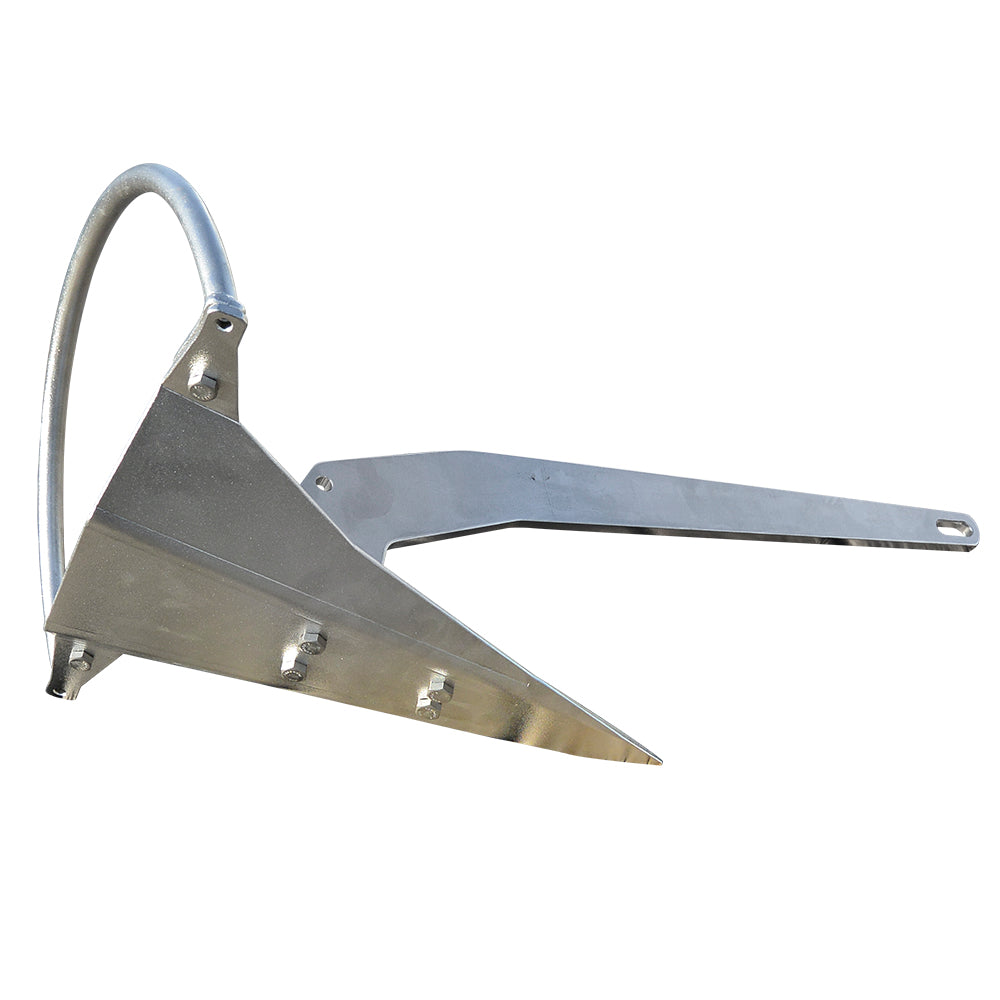

Mantus Anchors Spade Anchor - M1 (Stainless Steel) - 155 lb (70.3 kg)

$5,538.50 USD

Description

Mantus Anchors are designed to penetrate dense grassy bottoms and set with unparalleled holding power.

The Mantus anchor lineup simply has the best boat anchors available. Whether you are a long range cruiser, racing or going out for a day sail. The Mantus anchor breaks down for easy storage, so you can store one or two as spares without taking up much needed boat space.

Our Part # MAT-SSA155LB | Mantus Anchors Part # MANSS155

Features

Features:

  • Formed out of high quality steel plate. Contains no cast parts.
  • Shank and shank boot are welded from top and bottom.
  • Shank and roll bar are bolted to the fluke.
  • ASTM certified steel bolts are oversized with a large margin to ensure safety.
  • Although the shank is attached to the fluke with 4 bolts, a single bolt has sufficient strength to handle the maximum expected load on the anchor.
  • Stainless Steel anchors are made of 316 L Stainless and hand polished to a # 7 finish.
  • Sharp-headed nose is precision machined to achieve the perfect chisel shape to achieve maximum penetrating power.
  • Mantus Anchors offers a lifetime warranty on its anchors.

Knowledge Base

Click on the following technical articles to find relevant information about Anchors:

Technical Information

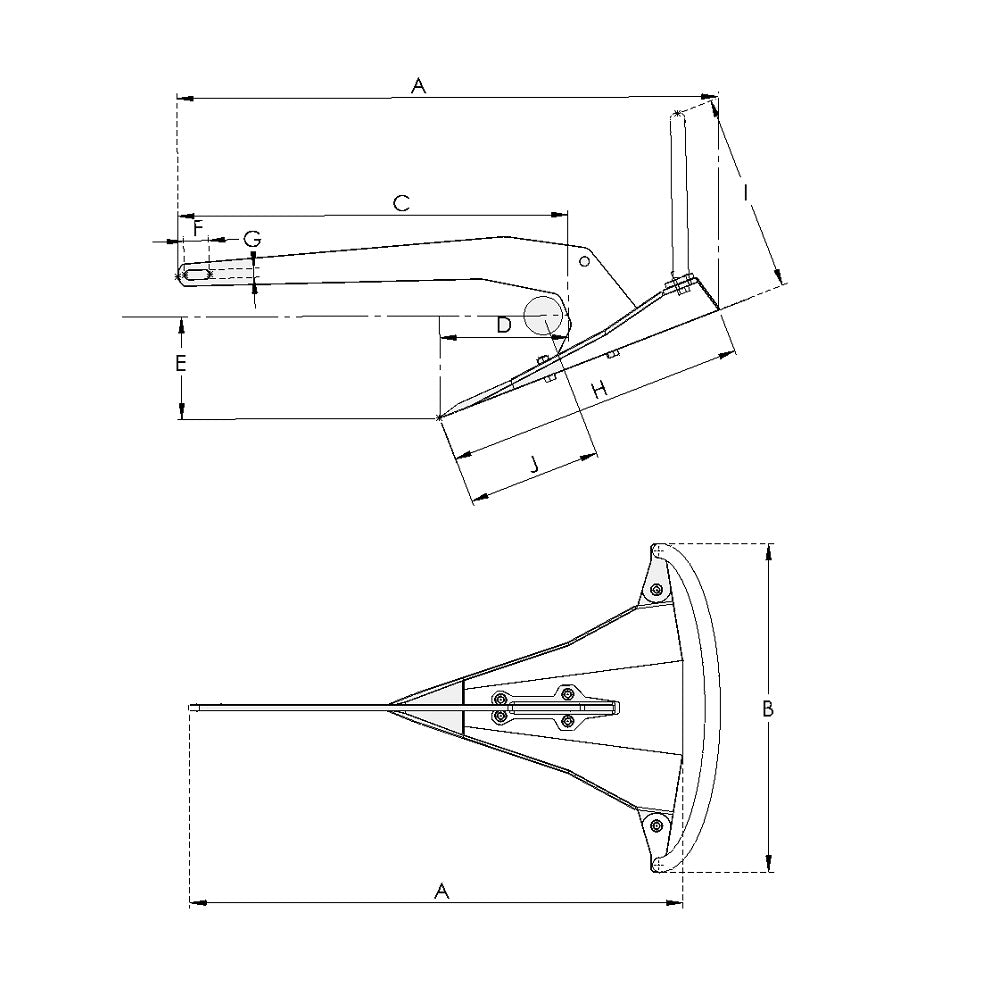

Description Imperial Metric
Size155.00 lbs.70.50 kg.
A62.60 in.1589.00 mm.
B38.00 in.964.00 mm.
C44.00 in.1118.00 mm.
D14.90 in.378.00 mm.
E11.90 in.301.00 mm.
F2.90 in.74.00 mm.
G1.00 in.26.00 mm.
H34.60 in.879.00 mm.
I22.90 in.581.00 mm.
J15.40 in.392.00 mm.
