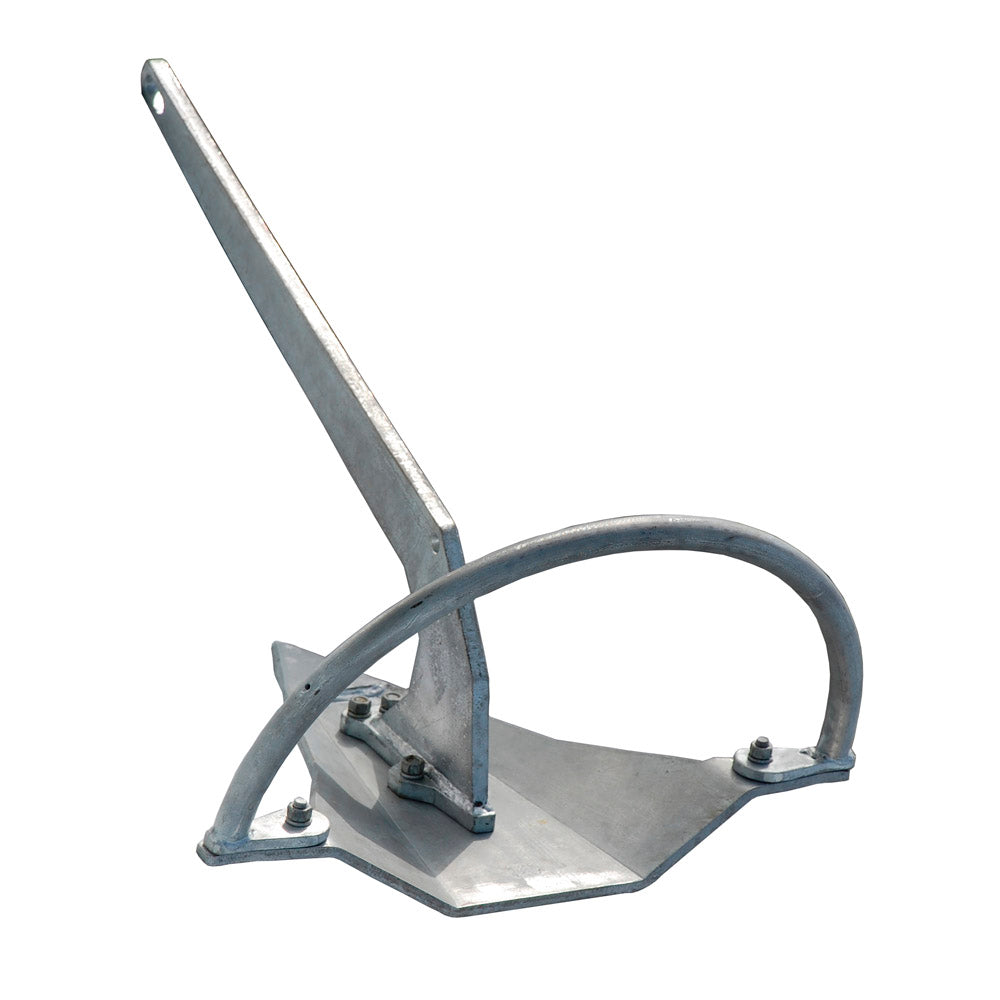

Mantus Anchors Spade Anchor - M1 (Galvanised) - 35 lb (15.9 kg)
Mantus Anchors Spade Anchor - M1 (Galvanised) - 35 lb (15.9 kg) is backordered and will ship as soon as it is back in stock.
Description
Description
The Mantus Anchors Spade Anchor - M1 (Galvanised) - 35 lb (15.9 kg) #MANGV35 is your go-to solution for secure anchoring in dense, grassy seabeds. Its clever design allows for easy dismantling, making storage a breeze even on the most space-conscious vessels. Perfect for all sailing adventures, from casual day sails to long-distance cruising.
Features & Benefits
- Exceptional holding power in grassy bottoms
- Easily breaks down for compact storage
- Durable galvanized finish for longevity
This anchor is constructed from high-strength galvanized steel, weighing in at 35 lb (15.9 kg). The Mantus design ensures compatibility with a wide range of boats, offering a reliable anchoring solution for various sailing needs. Its robust construction is perfect for withstanding harsh marine environments.
Usage
Ideal for sailors who need a dependable anchor that can be stored easily. Whether you're racing, cruising, or enjoying a day sail, this anchor is designed to provide peace of mind and security.
Features
Features
Features:
- Formed out of high quality steel plate. Contains no cast parts.
- Shank and shank boot are welded from top and bottom.
- Shank and roll bar are bolted to the fluke.
- ASTM certified steel bolts are oversized with a large margin to ensure safety.
- Although the shank is attached to the fluke with 4 bolts, a single bolt has sufficient strength to handle the maximum expected load on the anchor.
- In the carbon steel version every part of the anchor system is hot-dipped galvanized for corrosion protection. (All shanks are HT ASTM 514 Steel and Flukes are mild steel A36 equivalen).
- Sharp-headed nose is precision machined to achieve the perfect chisel shape to achieve maximum penetrating power.
- Mantus Anchors offers a lifetime warranty on its anchors.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Anchors:
Technical Information
Technical Information

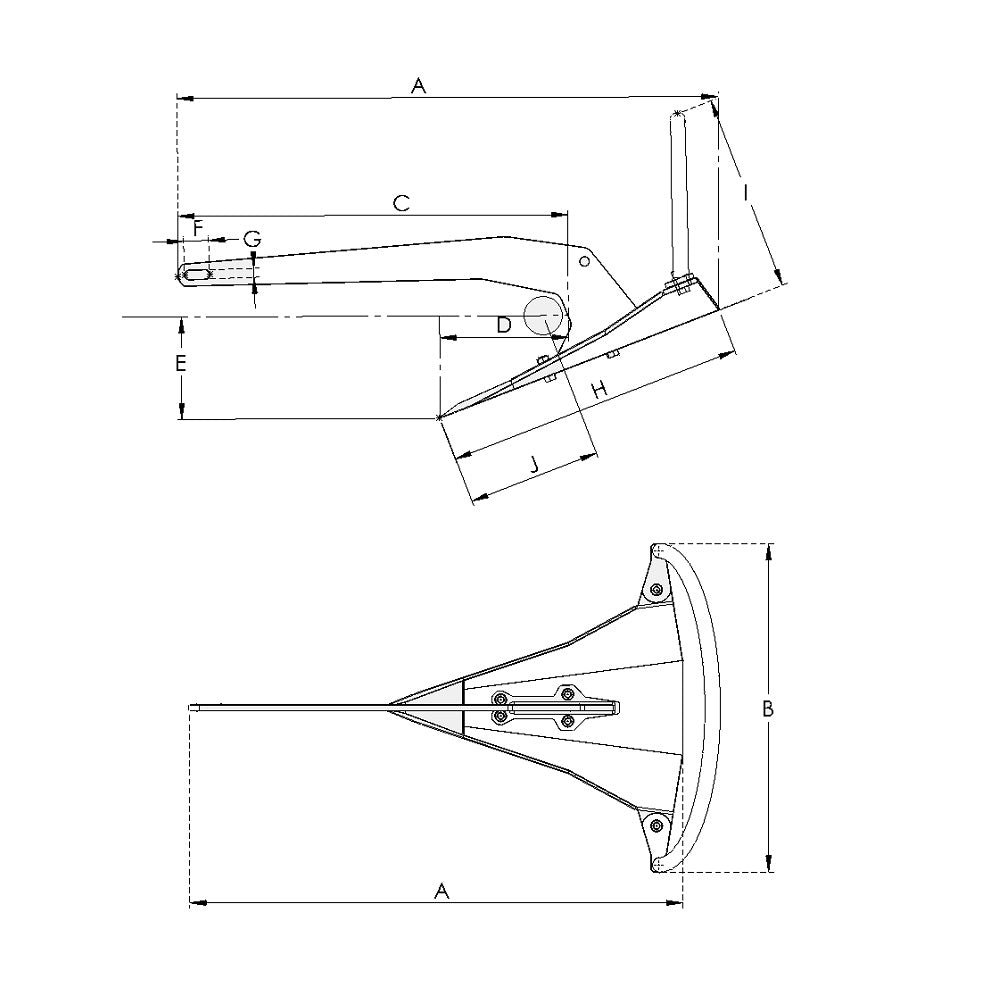

Description | Metric | Imperial |
---|---|---|
Size | 15.9 kg | 35.0 lb |
A | 884.0 mm | 34 13/16 in |
B | 536.0 mm | 21 1/8 in |
C | 622.0 mm | 24 1/2 in |
D | 210.0 mm | 8 5/16 in |
E | 167.0 mm | 6 9/16 in |
F | 41.0 mm | 1 9/16 in |
G | 15.0 mm | 19/32 in |
H | 489.0 mm | 19 5/16 in |
I | 323.0 mm | 12 3/4 in |
J | 218.0 mm | 8 9/16 in |
