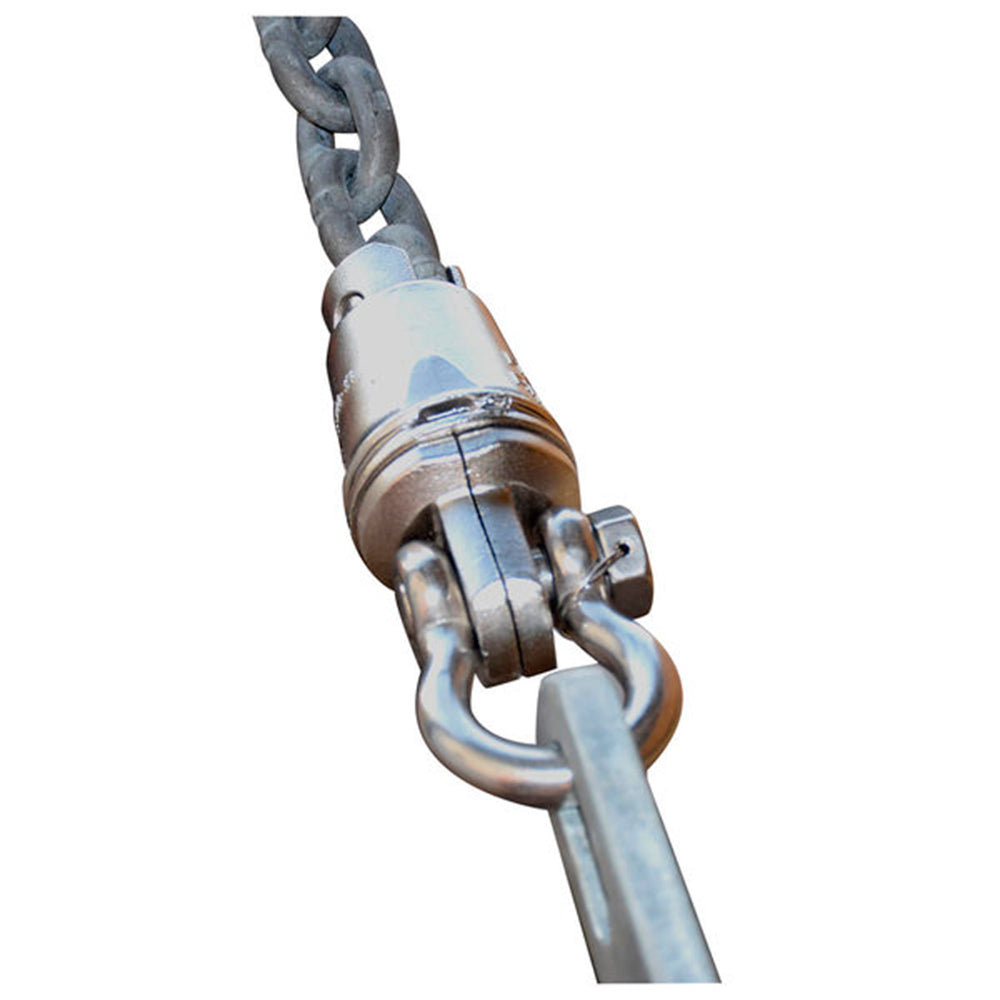

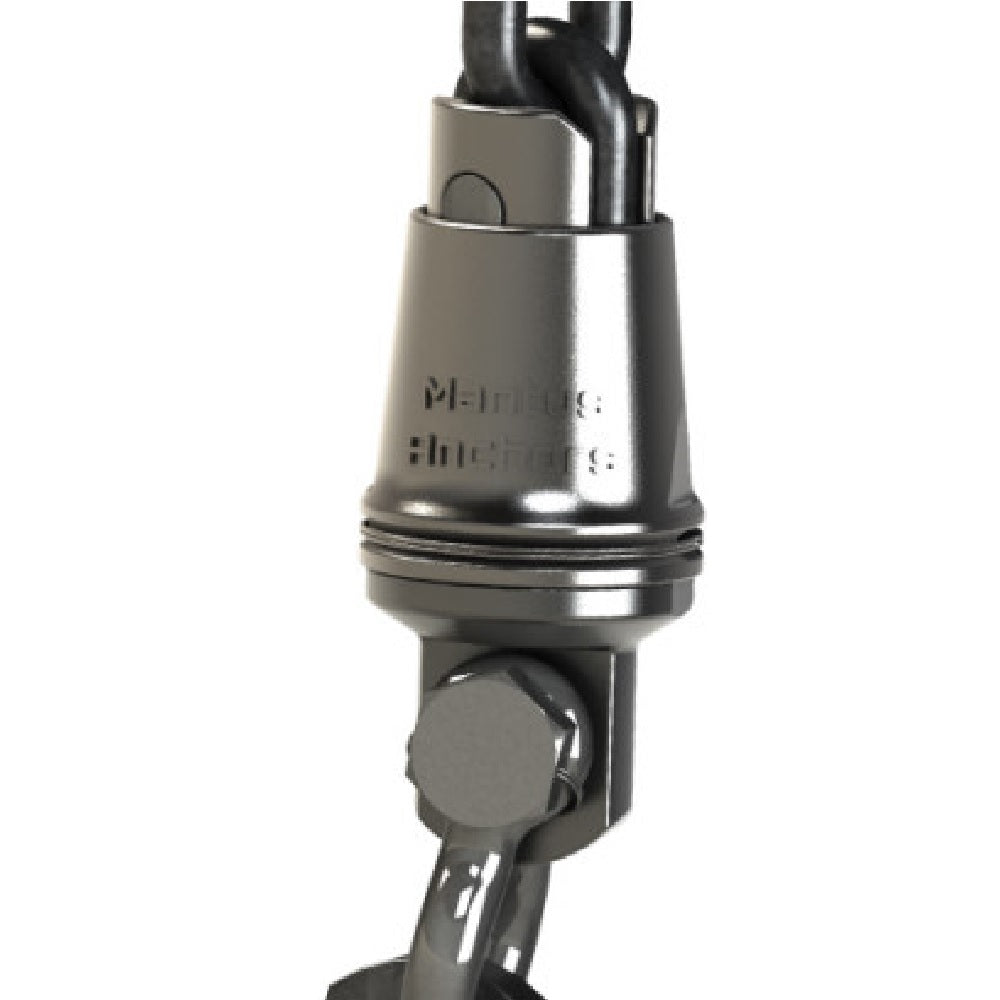

Mantus Anchor Swivel S1 - 1/4 and 5/16 in (6.0 and 8.0 mm) Chain
Mantus Anchor Swivel S1 - 1/4 and 5/16 in (6.0 and 8.0 mm) Chain is backordered and will ship as soon as it is back in stock.
Description
Description
The strongest link - Mantus swivel is stronger than its corresponding Grade 40 chain. (WLL is 1/5 UBS).
Integrated shackle design completely eliminates side loading making this the safest swivel on the market.
The pin on the chain side of the swivel is the strength limiting part since the geometry of the chain determines the pin size. Mantus swivel is the first to feature an oblong pin to maximizes the pin strength, with the aid of computer modeling and physical testing we truly created a swivel that is the strongest link.
316 L stainless steel body and Duplex Stainless Steel Pin.
Note the innovative shackle bolt design? No shackle dog! This slim hex head design (with holes for safety wire) offers a slimmer profile making it easier for translating through your bow roller.
Our Part # MAT-US1 | Mantus Anchors Part # US1
Knowledge Base
Knowledge Base
This Mantus Anchor Swivel S1 is available for chain 1/4 in. (6.00 mm.) and 5/16 in. (8.00 mm.)
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Weight | 2.50 lb. | 1.15 kg. |
Dimensions | 3.00 x 3.00 x 3.00 in. | 75.00 x 75.00 x 75.00 mm. |
