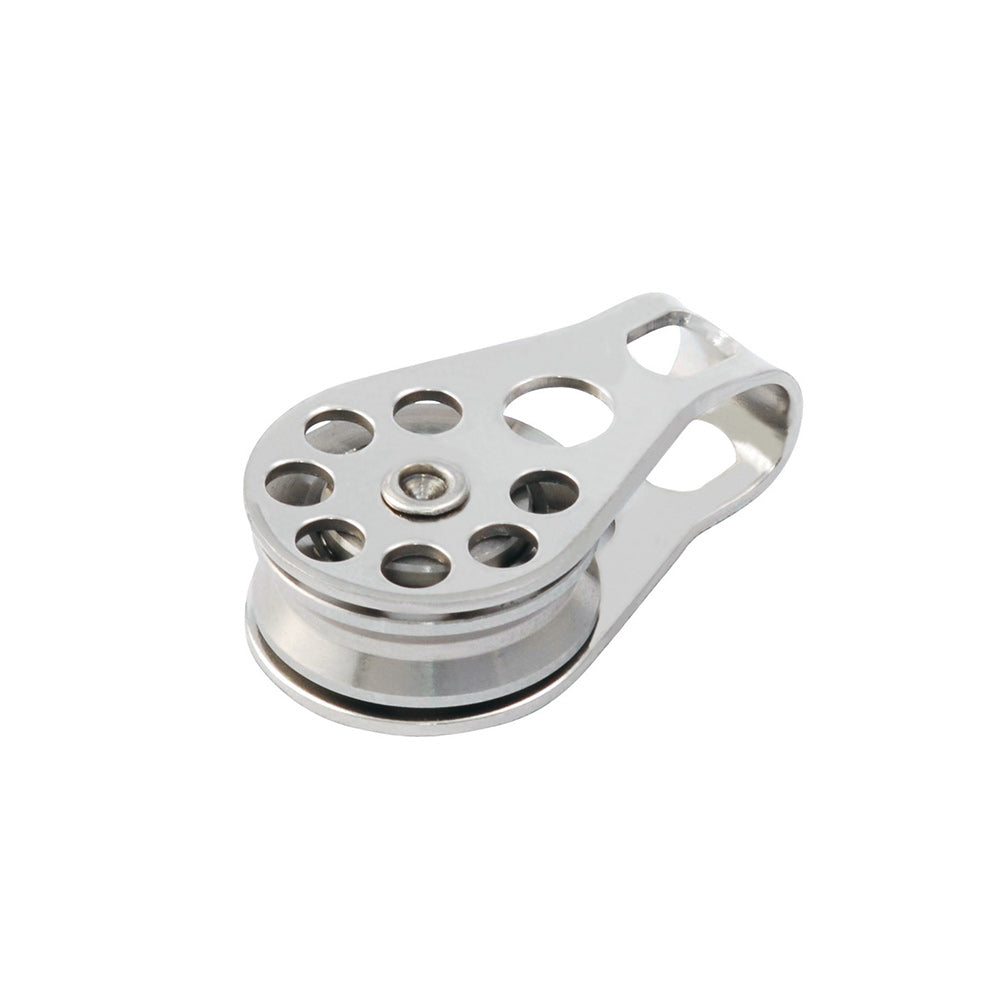

Allen High Tension Block
$30.00 USD
$33.33
Unit price
/
Unavailable
Allen High Tension Block is backordered and will ship as soon as it is back in stock.
Description
Description
16mm Single Fixed Head Wire Block.
Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.
Our Part # ALL-A4568 | Allen Part # A4568
Features
Features
Features:
- Body:Â Formed in stainless steel for a lightweight yet robust frame.
- Bearings:Â A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 400.00 kg. | 882.00 lbs. |
Length | 29.00 mm. | 1 1/7 in. |
Maximum line diameter | 2.00 - 4.00 mm. | 0.08 - 1/6 in. |
Shackle pin | 4.00 mm. | 1/6 in. |
Sheave diameter | 16.00 mm. | 5/8 in. |
Weight | 11.00 g. | 0.39 oz. |
