Allen  |  SKU: ALL-A4496  |  Manuf. Code: A4496

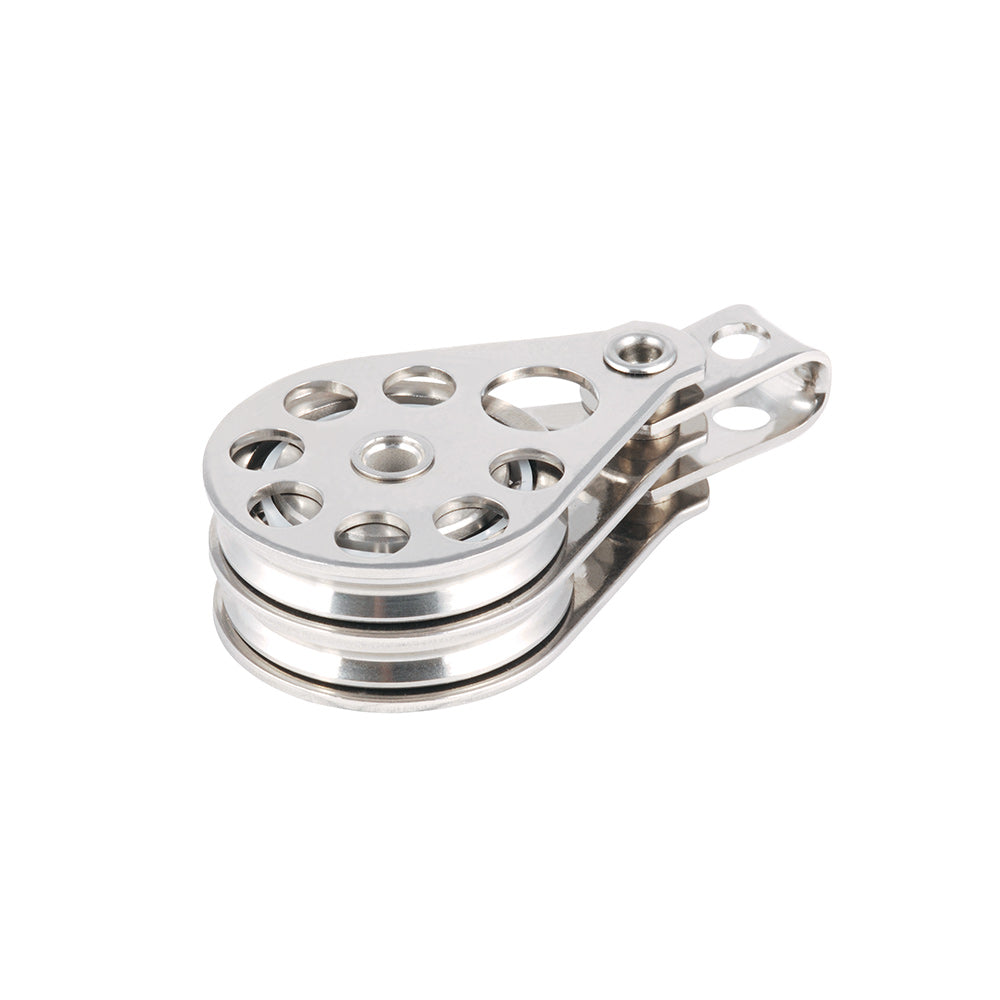

Allen 38 mm Double High Tension Block Fixed Head

$134.95 USD $149.94

Description

38mm Double Fixed Head Wire Block.

Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.

For faster running, lower loaded control lines consider the dynamic range.

Our Part # ALL-A4496 | Allen Part # A4496

Features

Features:

  • Body: Formed in stainless steel for a lightweight yet robust frame.
  • Bearings: A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.

Technical Information


DescriptionMetricImperial
Breaking load1000.00 kg.2205.00 lbs.
Length74.00 mm.3.00 in.
Maximum line diameter2.00 - 6.00 mm.0.08 - 1/4 in.
Shackle pin5.00 mm.1/5 in.
Sheave diameter38.00 mm.1 1/2 in.
Weight141.00 g.4.97 oz.
