10% off

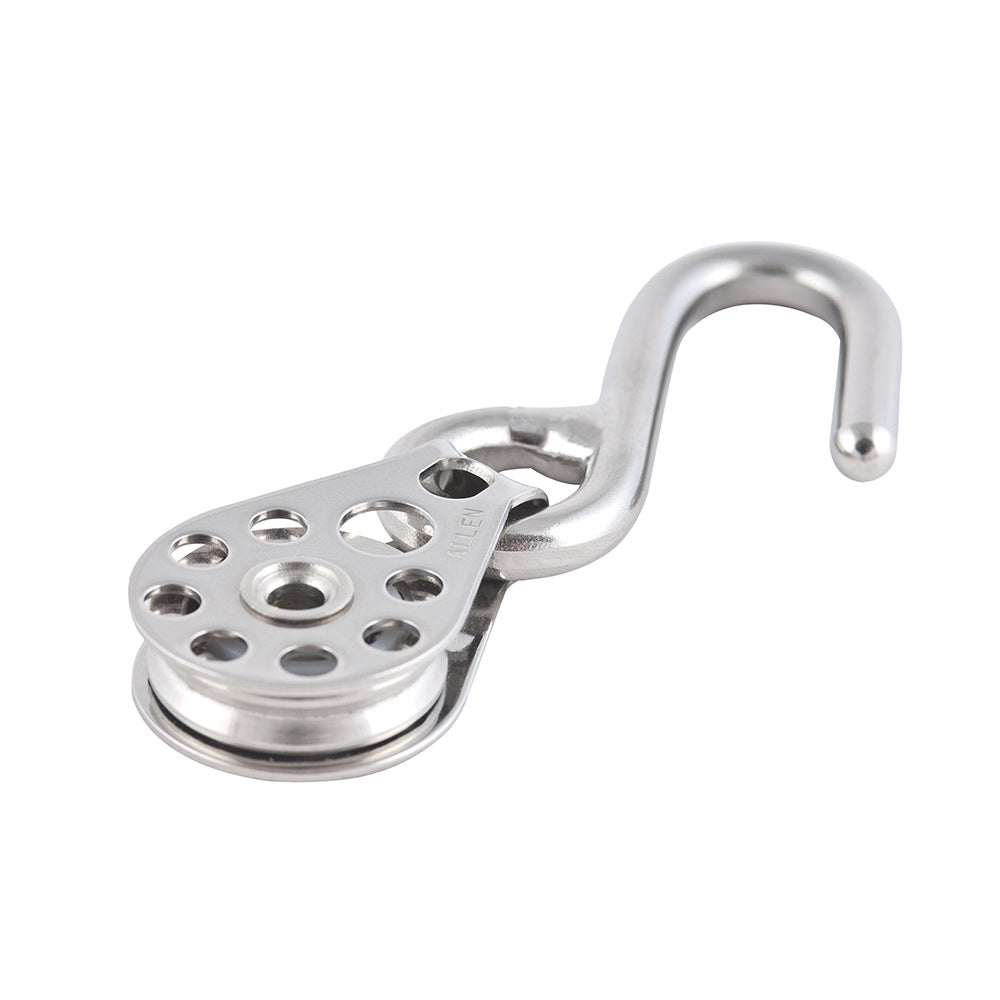

Allen High Tension Block with 90° Hook
$61.99 USD
$68.88
Unit price
/
Unavailable
Allen High Tension Block with 90° Hook is backordered and will ship as soon as it is back in stock.
Description
Description
25mm Single Fixed Head Wire Block With 90 Degree Hook.
Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.
For faster running, lower loaded control lines consider the dynamic range.
Our Part # ALL-A4379HK-90 | Allen Part # A4379HK-90
Features
Features
Features:
- Hook:Â The hook is formed around the body and at 90 degrees.
- Bearings:Â A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.
- Body:Â Formed in stainless steel for a lightweight yet robust frame.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 500.00 kg. | 1102.50 lbs. |
Length | 90.00 mm. | 3 1/2 in. |
Maximum line diameter | 2.00 - 6.00 mm. | 0.08 - 1/4 in. |
Sheave diameter | 25.00 mm. | 1.00 in. |
Weight | 81.00 g. | 2.86 in. |
