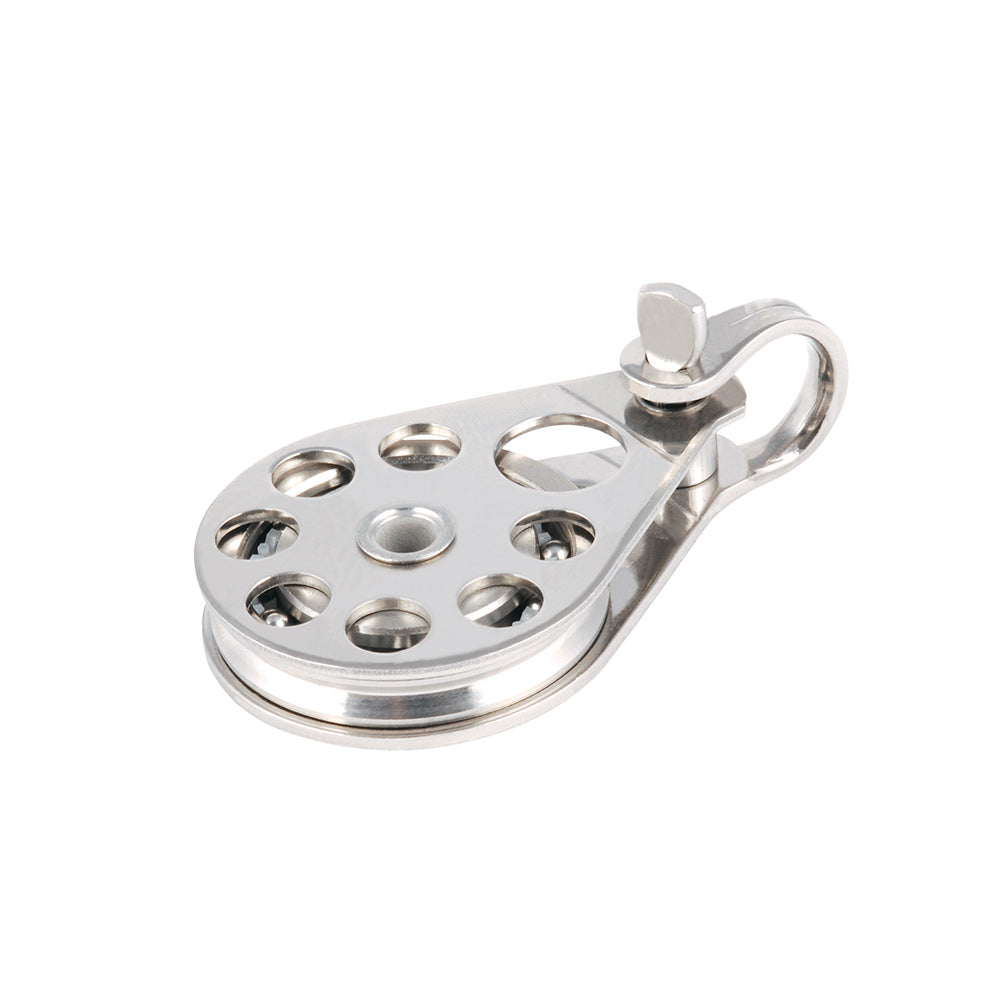

Allen 38 mm High Tension Block with Shackle
$75.99 USD
$84.43
Unit price
/
Unavailable
Allen 38 mm High Tension Block with Shackle is backordered and will ship as soon as it is back in stock.
Description
Description
38mm Single Shackle Head Wire Block.
Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.
For faster running, lower loaded control lines consider the dynamic range.
Our Part # ALL-A4296 | Allen Part # A4296
Features
Features
Features:
- Shackle Head:Â When the shackle and small axle are removed from the head of the block the two side plates are free to swivel. This allows easy attachment or removal from spliced lines or wires.
- Body:Â Formed in stainless steel for a lightweight yet robust frame.
- Bearings:Â A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 1000.00 kg. | 2205.00 lbs. |
Length | 74.00 mm. | 3.00 in. |
Maximum line diameter | 2.00 - 6.00 mm. | 0.08 - 1/4 in. |
Shackle pin | 5.00 mm. | 1/5 in. |
Sheave diameter | 38.00 mm. | 1 1/2 in. |
Weight | 80.00 g. | 2.82 oz. |
