Allen 50 mm Triple Dynamic Block
Allen 50 mm Triple Dynamic Block is backordered and will ship as soon as it is back in stock.
Description
Description

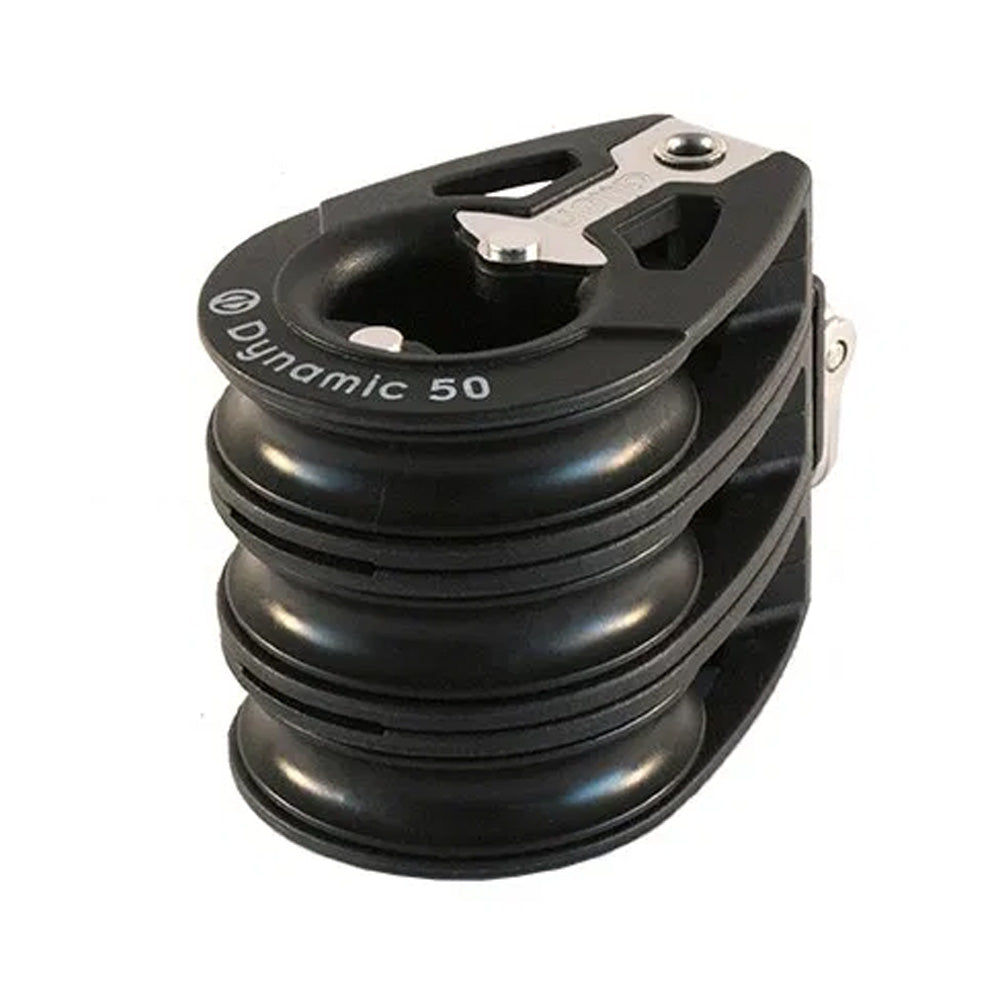

50mm Triple Dynamic Block.
The A2054 is a high performing ball bearing block, designed to eliminate friction and allow rope to run at great speeds.
Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between. The 50mm triple is a great choice for systems which require a larger purchase system with minimal friction.
Our Part # ALL-A2054 | Allen Part # A2054
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
- Swivel Lock:Â The A2054 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
- Becket:Â A large central hole not only reduces the overall weight of the block but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 950.00 kg. | 1764.00 lbs. |
Length | 100.00 mm. | 4.00 in. |
Maximum line diameter | 10.00 mm. | 2/5 in. |
Maximum working load | 470.00 kg. | 1036.35 lbs. |
Weight | 190.00 g. | 6.70 oz. |
Shackle pin | 4.00 mm. | 1/6 in. |
