10% off

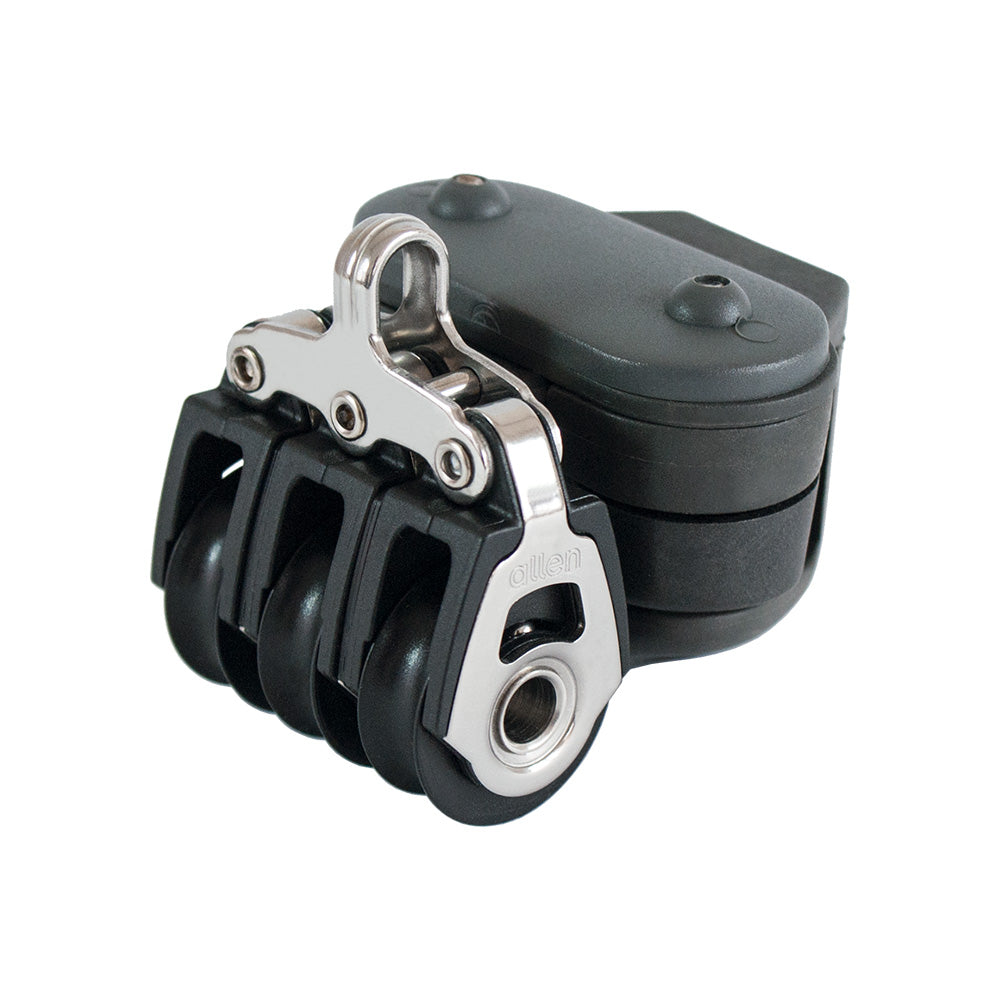

Allen 30 mm Dynamic Triple Block with Inverted Cleat
$142.95 USD
$158.83
Unit price
/
Unavailable
Allen 30 mm Dynamic Triple Block with Inverted Cleat is backordered and will ship as soon as it is back in stock.
Description
Description
30mm Triple Dynamic Block With Inverted Cleat.
Triple blocks are generally used in systems such as cunninghams or vangs, to give a larger purchase system.
Our Part # ALL-A2034-676 | Allen Part # A2034-676
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Ultra-Strap: Our patented Ultra-Strap is used in our 20, 30 & 40mm Dynamic blocks. The Ultra-Strap is unique when compared to other designs because of its coining process. This process strengthens the strap, making it more reliable and hard-wearing as well as making it much more rope friendly than other designs. The Ultra-Strap was the first marine industry block designed to work specifically with a rope attachment.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 1750.00 kg. | 3858.75 lbs. |
Length | 65.00 mm. | 2 5/9 in. |
Maximum line diameter | 8.00 mm. | 1/3 in. |
Maximum working load | 420.00 kg. | 926.10 lbs. |
Weight | 49.00 g. | 1.73 oz. |
