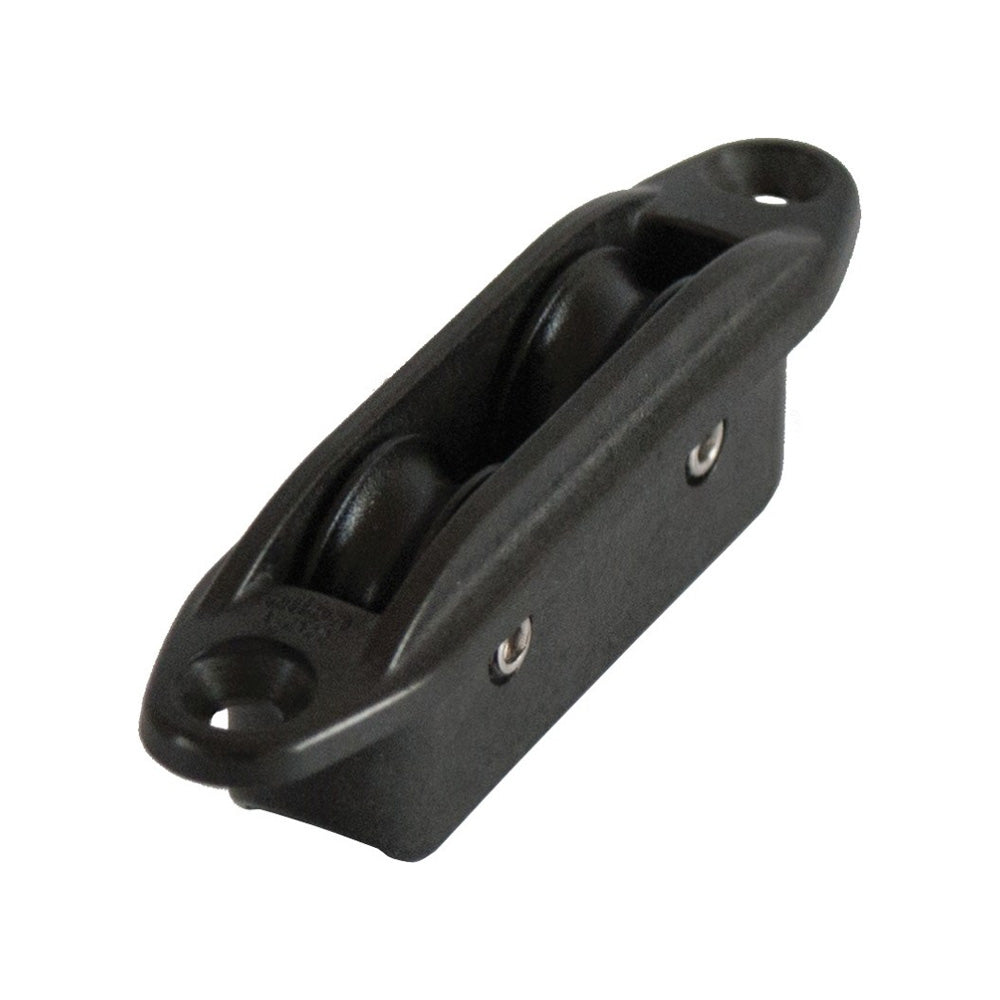

Allen 20 mm Double Allenite Through Deck
Allen 20 mm Double Allenite Through Deck is backordered and will ship as soon as it is back in stock.
Description
Description
20mm Double Dynamic Through Deck Block.
Our through deck blocks offer frictionless guidance for rope and wire control lines which are required to pass through a deck.
Featuring a hard-wearing acetal body shaped perfectly to house the sheave, which results in a performance that you can rely on for adjustable rigging and other highly loaded applications.
Available with one or two sheaves and in plain and ball-bearing systems to suit a wide variety of applications.
Our Part # ALL-A2122 | Allen Part # A2122
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 350.00 kg. | 771.75 lbs. |
Fixing hole centres | 64.00 mm. | 2 1/2 in. |
Length | 60.00 mm. | 2 1/3 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Maximum working load | 105.00 kg. | 231.53 lbs. |
Weight | 20.00 g. | 0.71 oz. |
