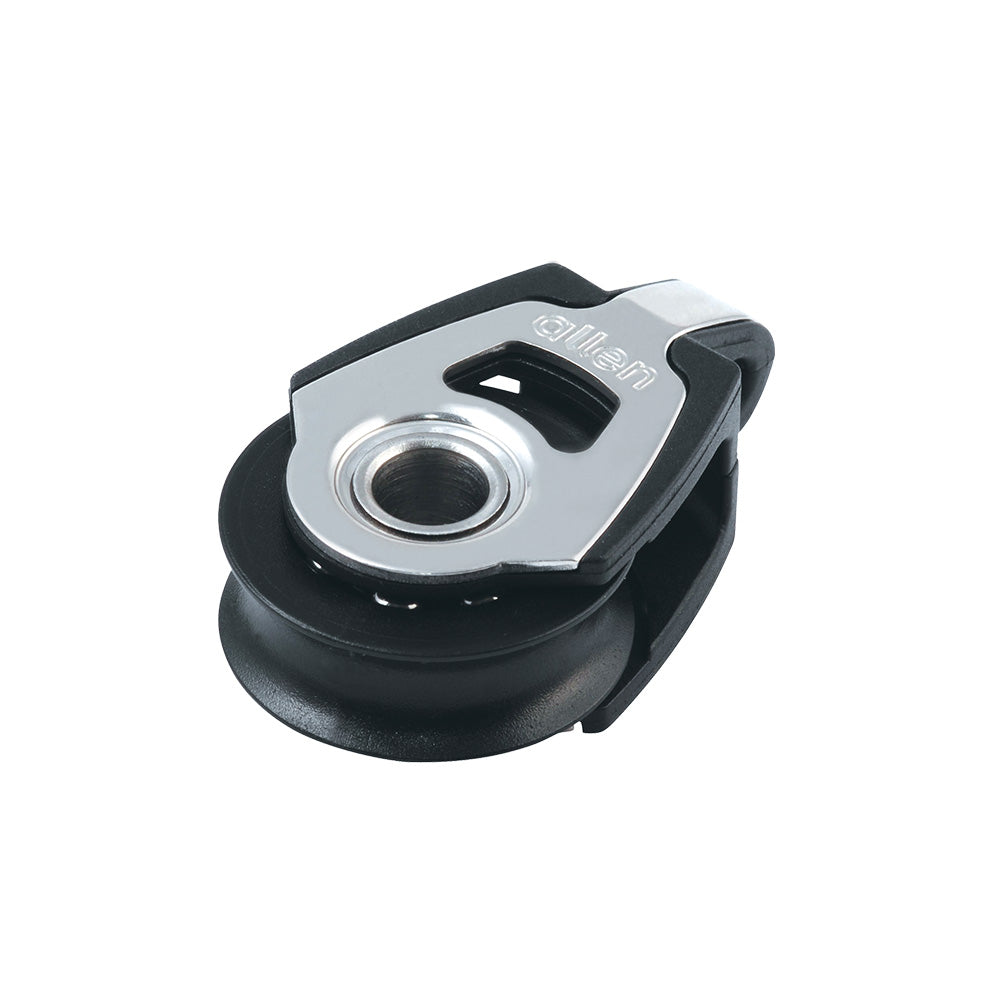

Allen 30 mm Dynamic Block Multi Func.
Allen 30 mm Dynamic Block Multi Func. is backordered and will ship as soon as it is back in stock.
Description
Description
30mm Single Multi Function Block
The multi function block has a slightly different strap compared to the A2030.
The A2031 multi function block is the base block used in the following variations: A2031F, A2031SC and all double and triple variations.
The multi function head is designed to attach our swivel, fork and cheek adaptors to. It is also used for riveting to the double and triple ultra-straps.
Our Part # ALL-A2031 | Allen Part # A2031
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Becket: Our 20 & 30mm blocks offer a large central rivet which not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 500.00 kg | 1102.50 lbs. |
Length | 47.00 mm. | 1 6/7 in. |
Maximum line diameter | 8.00 mm. | 1/3 in. |
Maximum working load | 140.00 kg. | 308.70 lbs. |
Weight | 28.00 g. | 1.00 oz. |
Shackle pin | 4.00 mm. | 1/6 in. |
