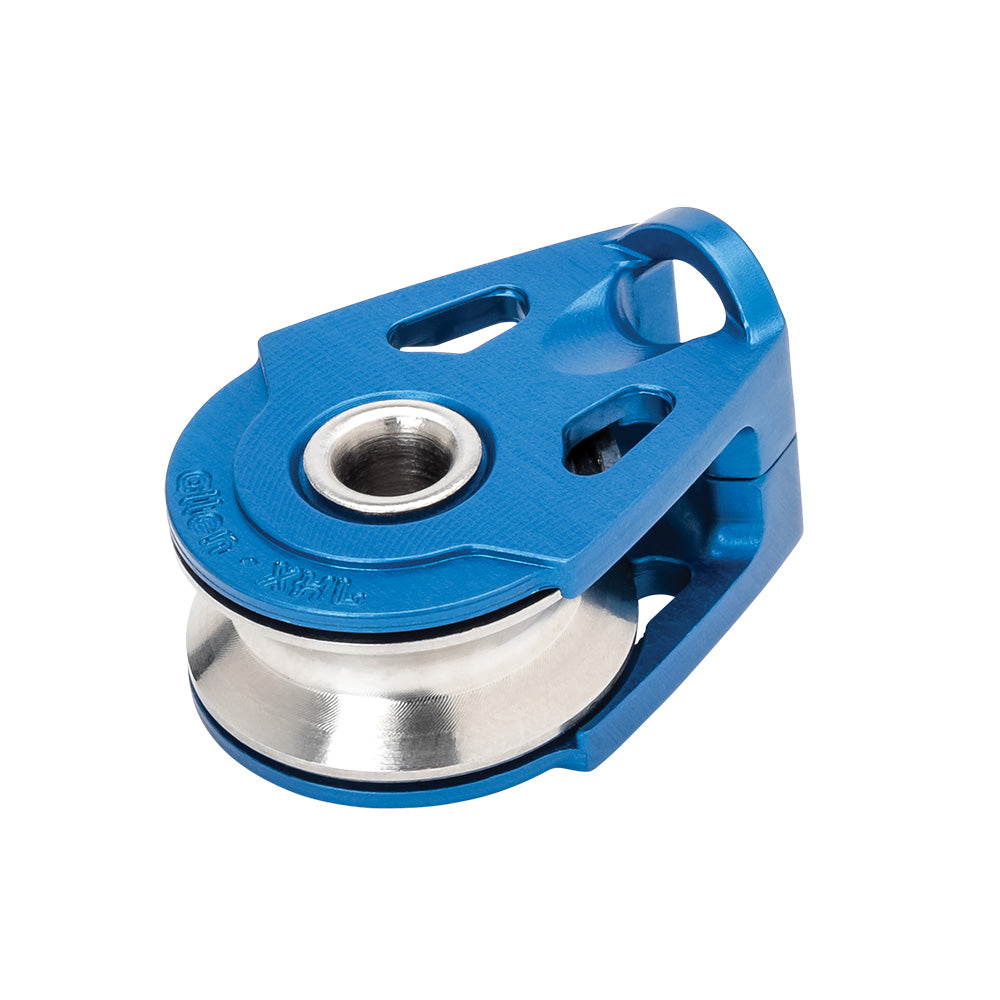

Allen 20 mm Extreme High Load Dynamic Block - Blue
Allen 20 mm Extreme High Load Dynamic Block - Blue is backordered and will ship as soon as it is back in stock.
Description
Description
The Allen 20 mm Extreme High Load Dynamic Block #A2020XHL-B is your go-to choice when tackling extreme static loads without sacrificing performance under lighter conditions. Whether you're managing vang cascades or halyard turning points, this allen block is designed to handle the pressure while maintaining smooth operation. It's like having a reliable partner on your sailing adventures!
Features & Benefits
- Handles extremely high static loads efficiently
- Ensures smooth low load dynamic performance
- Perfect for vang cascades and halyard turning points
This block is crafted to withstand significant stress with its robust construction, making it a staple in any sailor's gear. The compact 20mm size ensures it fits seamlessly into various setups, while its dynamic design enables fast rolling speeds, crucial for high-performance sailing. As an essential component for handling intense loads, the Allen block is compatible with a range of sailing applications, providing both strength and reliability.
Usage
Best suited for scenarios requiring high load management, such as in vang cascades or halyard turning points, this block excels in demanding sailing environments.
Features
Features
Features:
- XHL Bearings: Twin rows of stainless-steel ball bearings running on a stainless-steel axle with the addition of a protective plain bearing washer. A key feature within the XHL bearing system is the precision plain bearing washer. When the XHL is exposed to extreme static loads (which would normally cause damage to the internal bearing system) it changes to a plain bearing block. This stops the ball bearings from getting damaged and thus no longer performing as designed. As soon as the static load is reduced the XHL returns to a high-performing dynamic block.
- Body:Â The aluminium body features âearsâ at the top of the block. These are to be used when attaching the block and stop the block from capsizing when under load.
- Sheave:Â The stainless-steel sheave allows the block to be paired with both rope and wire.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 900.00 kg. | 1984.50 lbs. |
Length | 29.00 mm. | 1 1/7 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Maximum working load | 400.00 kg. | 882.00 lbs. |
Weight | 17.00 g. | 0.60 oz. |
