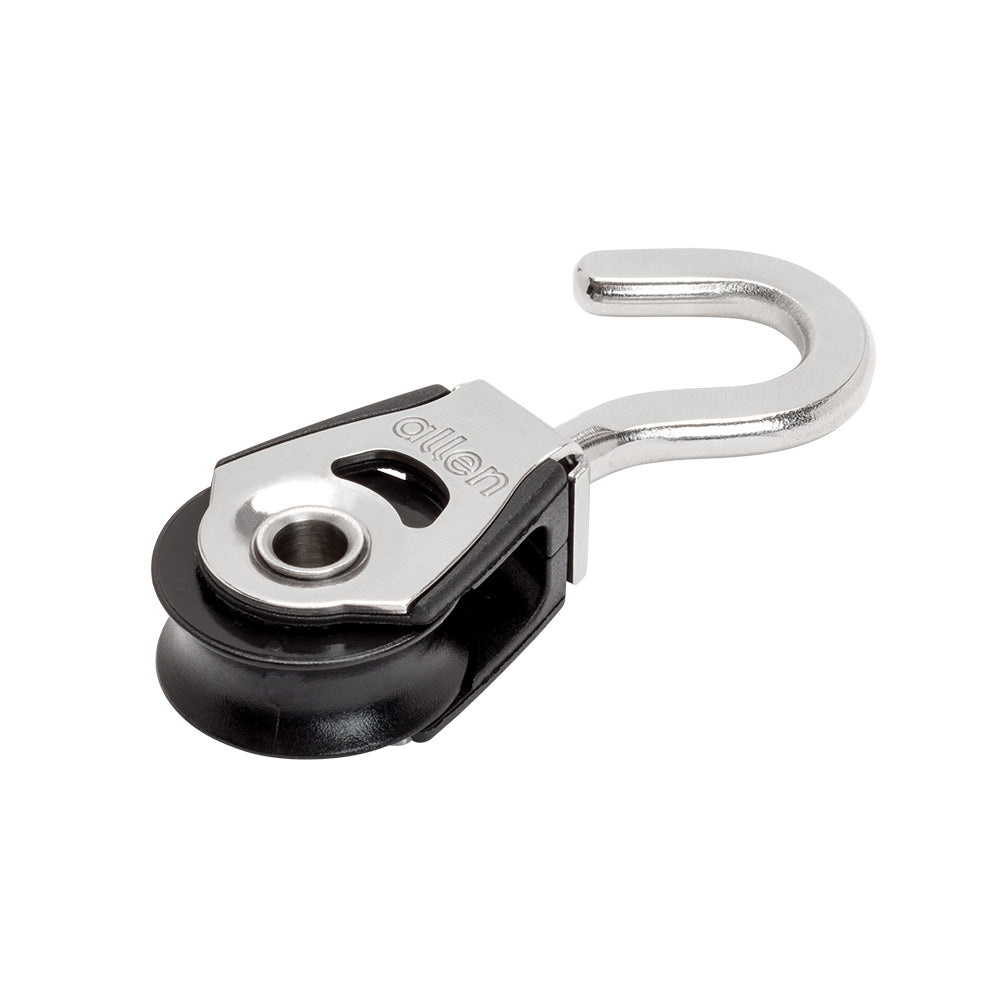

Allen 20 mm Dynamic Block with Swivel Hook
Allen 20 mm Dynamic Block with Swivel Hook is backordered and will ship as soon as it is back in stock.
Description
Description
20mm Single With Swivel Hook Dynamic Block.
The A2020 is our go-to low friction, fast rolling, small pulley. Its lightweight and strong, making it ideal for dinghies, windsurfing, kitesurfing and anything else that runs smaller diameter lines.
Our Dynamic range is generally the best choice for applications that require constant sheave movement.
Our Part # ALL-A2020SHK | Allen Part # A2020SHK
Features
Features
Features:
- Swivel Hook: A built-in swivel pin allows this block to swivel once attached. ideal for applications where the pulling forces may change direction. The swivel cannot be locked.
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Becket: Our 20 & 30mm blocks offer a large central rivet which not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 350.00 kg. | 771.75 lbs. |
Length | 58.00 mm. | 2 2/7 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Maximum working load | 115.00 kg. | 253.58 lbs. |
Weight | 19.00 g. | 0.67 oz. |
