Allen 20 mm Plain Bearing Block
Allen 20 mm Plain Bearing Block is backordered and will ship as soon as it is back in stock.
Description
Description

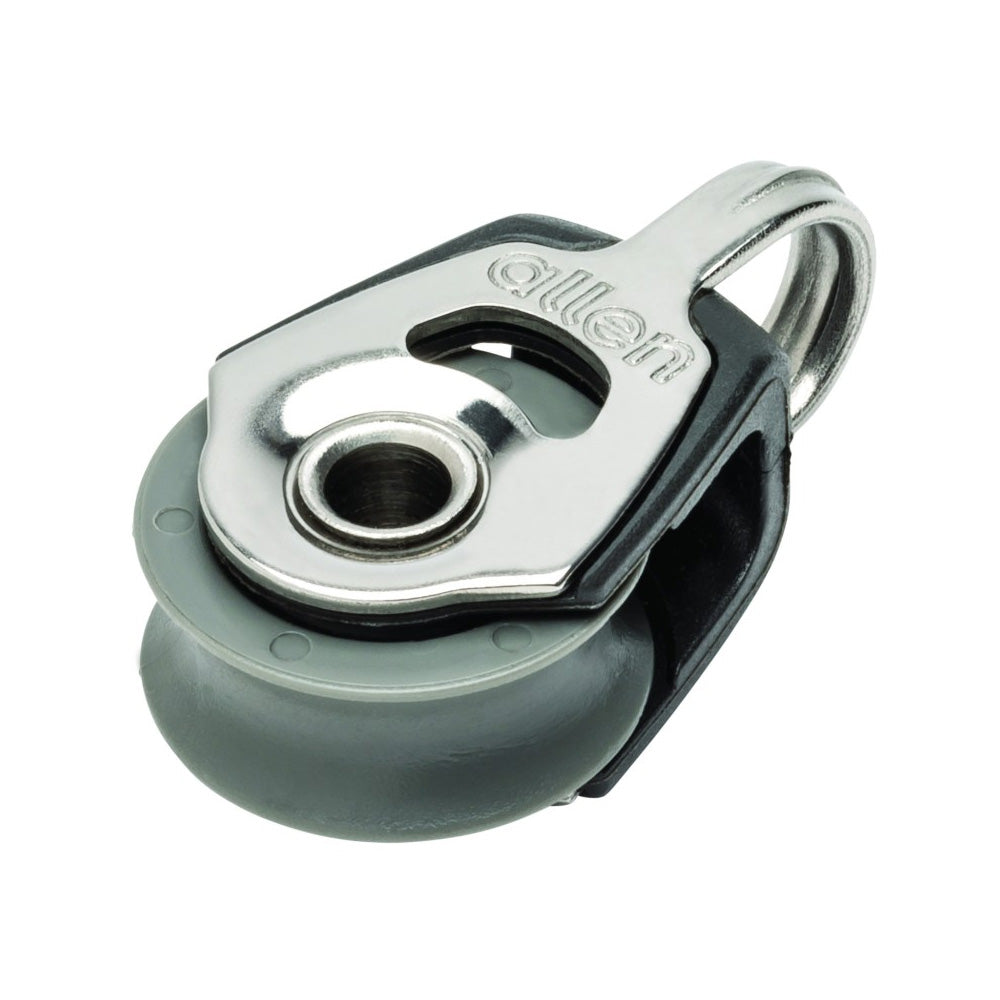

20mm Plain Bearing Single Block
The A2020P is our block of choice for applications which require a lightweight, budget friendly pulley.
Plain bearing blocks are the ideal choice for take-up systems or systems which do not require friction reduction.
For ultimate performance, we suggest using the Dynamic block range instead.
This plain bearing block is made from recycled plastics.
Our Part # ALL-A2020P | Allen Part # A2020P
Features
Features
Features:
- Plain Bearing:Â The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
- Ultra-Strap:Â A stainless steel strap which holds the block together and provides a strong, reliable and rope friendly attachment point.
- Becket:Â The hole through the middle of the block can be used as a tying off point (becket).
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 540.00 kg. | 1190.70 lbs. |
Length | 37.00 mm. | 5/8 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Weight | 10.00 g. | 0.35 oz. |
