Allen  |  SKU: ALL-A2345  |  Manuf. Code: A2345

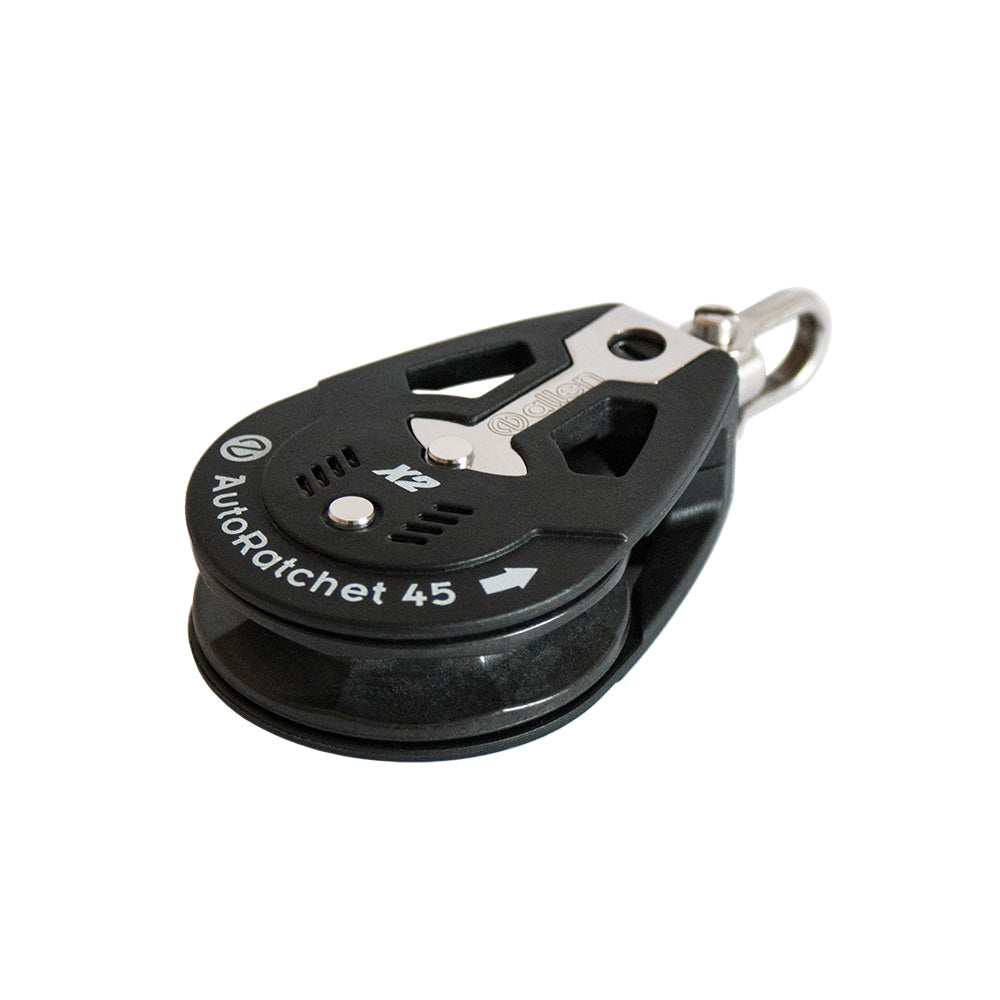

Allen 45 mm Autoratchet

$96.99 USD $107.77
This product ships from the UK. Lead-time: 5-7 days.

Description

45mm X2 AutoRatchet

The “X2” pawl system incorporates two pawls into the mechanism for the ratchet block allows the load to be evenly shared between both pawls, this allows the block to withstand higher working loads while also increasing both the reliability and longevity of the block when compared to the older AutoRatchet designs.

Our Part # ALL-A2345 | Allen Part # A2345

Technical Information


DescriptionImperialMetric
Breaking load617.40 lbs.280.00 kg.
Length3 1/2 in.90.00 mm.
Maximum line diameter1/3 in.8.00 mm.
Maximum working load308.70 lbs.140.00 kg.
Shackle pin1/6 in.4.00 mm.
Sheave size1 7/9 in.45.00 mm.
Weight1.98 oz.56.00 g.
Trigger load22.05 lbs.10.00 kg.
