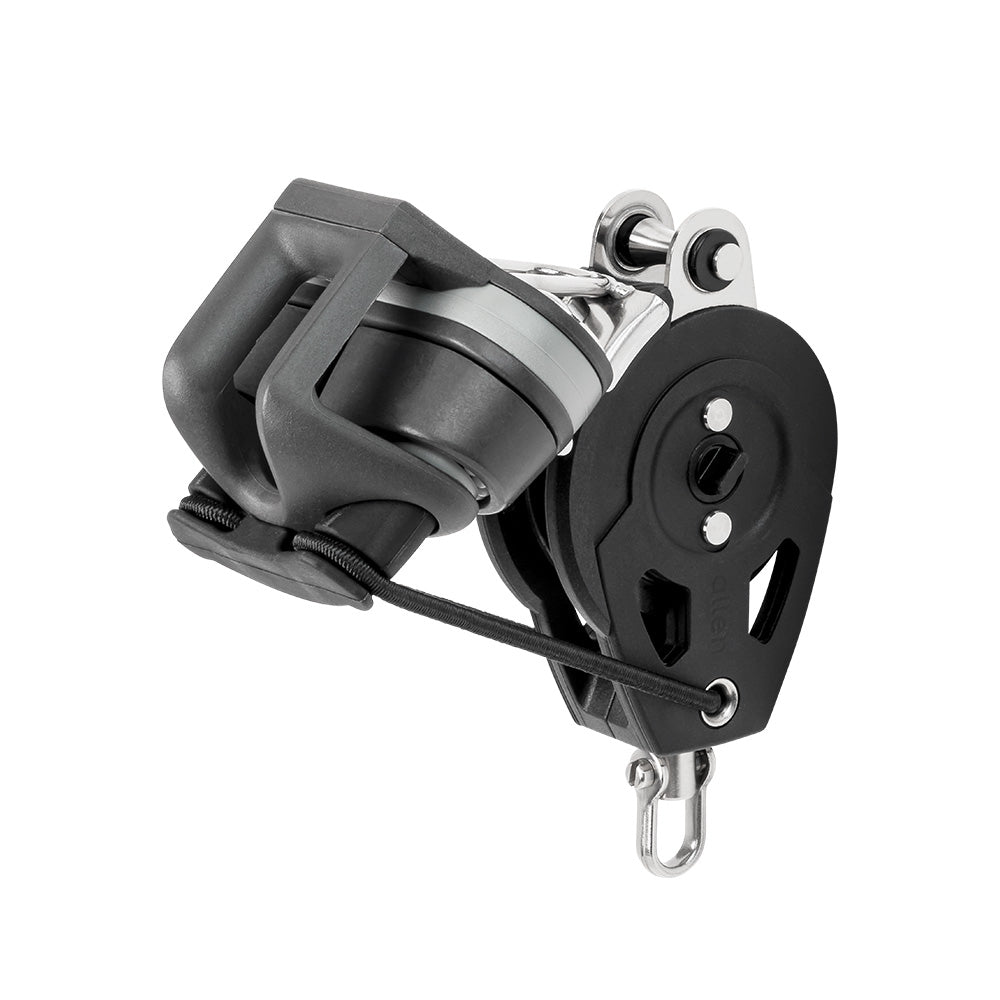

Allen 50 mm Switchable Ratchet Block with Becket and Cleat
Allen 50 mm Switchable Ratchet Block with Becket and Cleat is backordered and will ship as soon as it is back in stock.
Description
Description
Single Switchable Ratchet With Becket and cleat.
The Pro-Ratchet 50 features a hardwearing nylon sheave with eight V grips to give an extreme hold on any rope. In the middle of the block is a switch that can be used even under load to turn the ratchet on or off.
This version includes an anti-snag elastic line, to stop the rope getting caught between the cleat and block. The cleat can be adjusted to suit the angle required by undoing a bolt, sliding to the correct angle and locked back in place with the bolt. Becket pin can easily be removed by undoing the split ring.
Our Part # ALL-A2151 | Allen Part # A2151
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 700.00 kg. | 1543.50 lbs. |
Length | 136.00 mm. | 5 1/3 in. |
Maximum line diameter | 10.00 mm. | 2/5 in. |
Maximum working load | 200.00 kg. | 441.00 lbs. |
Shackle pin | 4.00 mm. | 1/6 in. |
Sheave size | 50.00 mm. | 2.00 in. |
Weight | 64.60 g. | 2.28 oz. |
