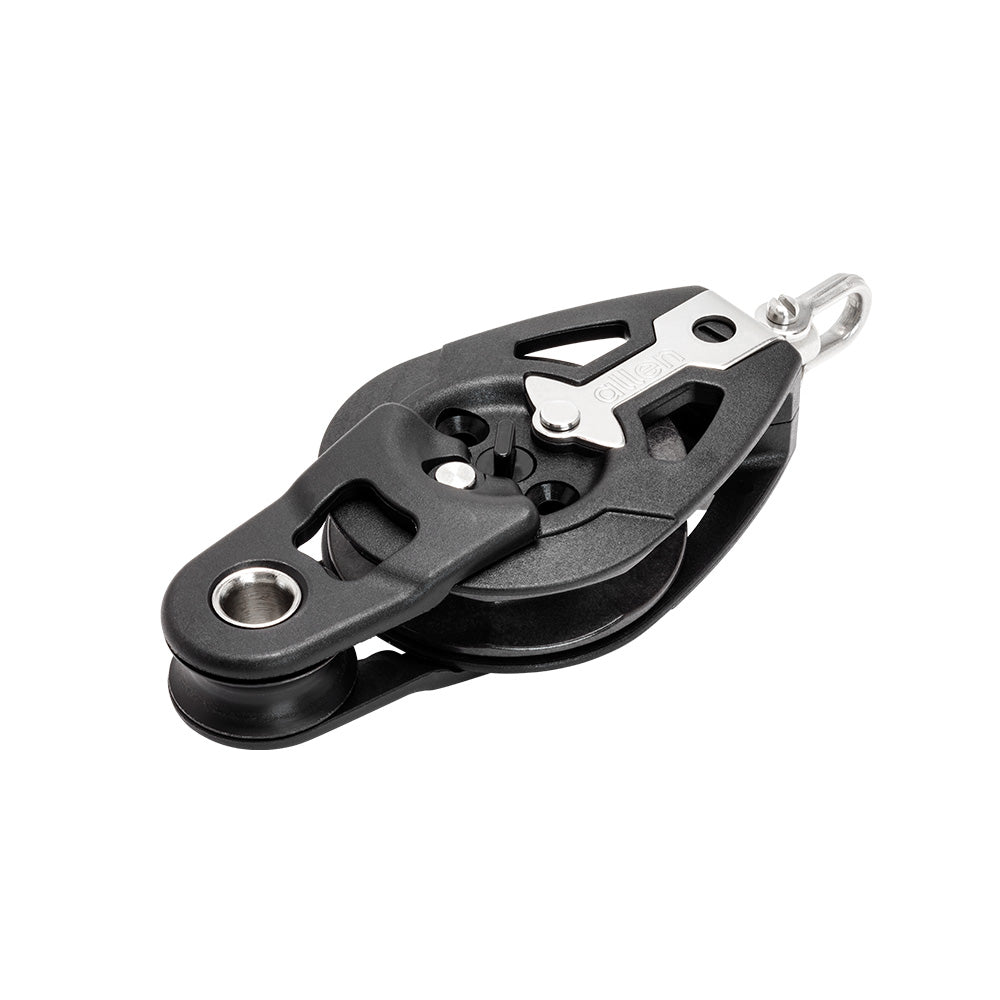

Allen 50 mm Switchable Ratchet Block with Fiddle
Allen 50 mm Switchable Ratchet Block with Fiddle is backordered and will ship as soon as it is back in stock.
Description
Description
Single Switchable Ratchet With Fiddle.
The Pro-Ratchet 50 features a hardwearing nylon sheave with eight V grips to give an extreme hold on any rope. In the middle of the block is a switch that can be used even under load to turn the ratchet on or off.
This fiddle version is ideal for use in a 3:1 mainsheet system. The large hole through the fiddle can also be used as a becket. Located at the head of the block is another switch which can be used to lock the swivel in 90-degree orientations.
Our Part # ALL-A2150FIDDLE | Allen Part # A2150FIDDLE
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 700.00 kg. | 1543.50 lbs. |
Length | 126.00 mm. | 5.00 in. |
Maximum line diameter | 10.00 mm. | 2/5 in. |
Maximum working load | 200.00 kg. | 441.00 lbs. |
Shackle pin | 4.00 mm. | 1/6 in. |
Sheave size | 50.00 mm. | 2.00 in. |
Weight | 80.00 g. | 2.82 oz. |
