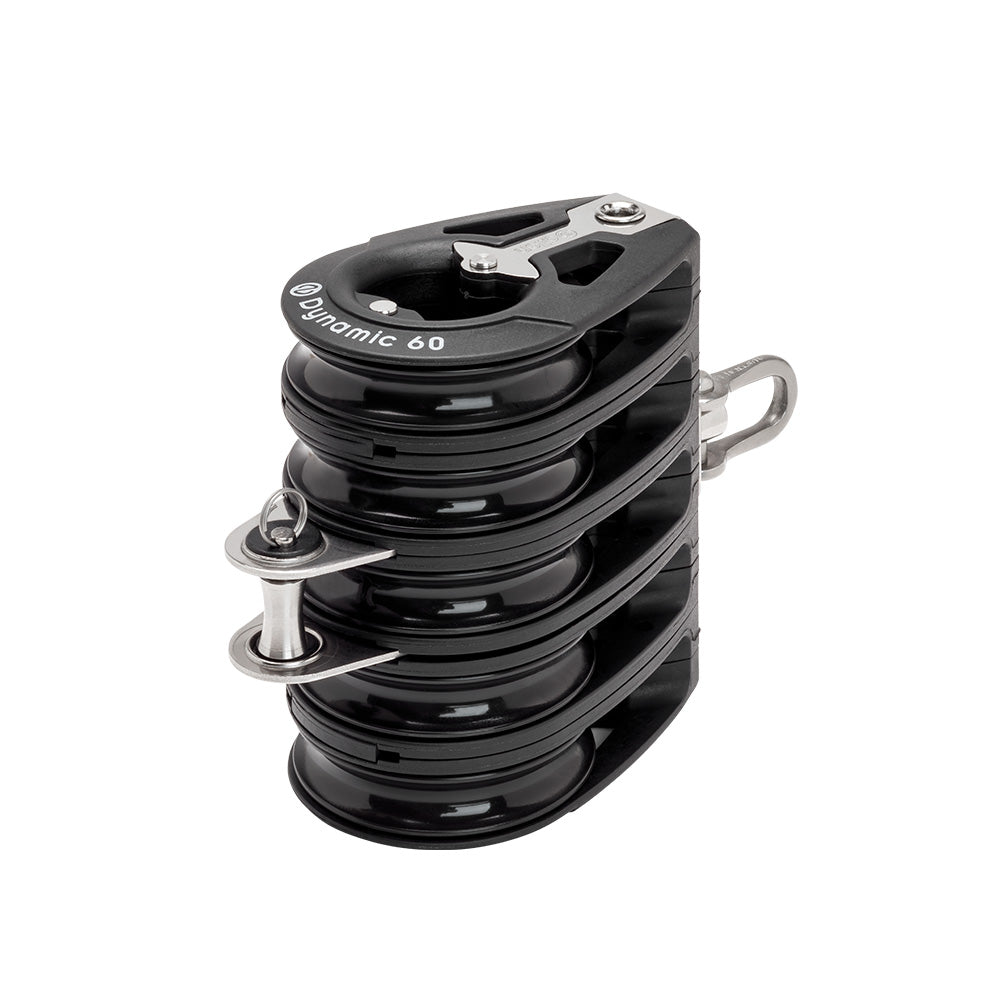

Allen 60 mm Quintuple Block with Becket
$320.00 USD
$355.56
Unit price
/
Unavailable
Allen 60 mm Quintuple Block with Becket is backordered and will ship as soon as it is back in stock.
Description
Description
60mm Quint Dynamic Block With Becket.
Designed for use as a low friction mainsheet system on sports catamarans, but suitable for many other applications including backstay tensioning on keelboats.
Our Part # ALL-A2069B | Allen Part # A2069B
Features
Features
Features:
- Bearings:Â Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
- Swivel Lock:Â The A2069B comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
- Becket:Â This pulley features a central becket between the sheaves. The becket can be removed by undoing the split ring. This allows for easy termination of a spliced rope or the addition of another block to increase the purchase system.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 1250.00 kg. | 2756.25 lbs. |
Length | 150.00 mm. | 6.00 in. |
Maximum line diameter | 12.00 mm. | 1/2 in. |
Maximum working load | 600.00 kg. | 1323.00 lbs. |
Weight | 555.00 g. | 19.58 oz. |
Shackle pin | 6.00 mm. | 1/6 in. |
