Allen 50 mm Quad Dynamic Block with Becket
Allen 50 mm Quad Dynamic Block with Becket is backordered and will ship as soon as it is back in stock.
Description
Description

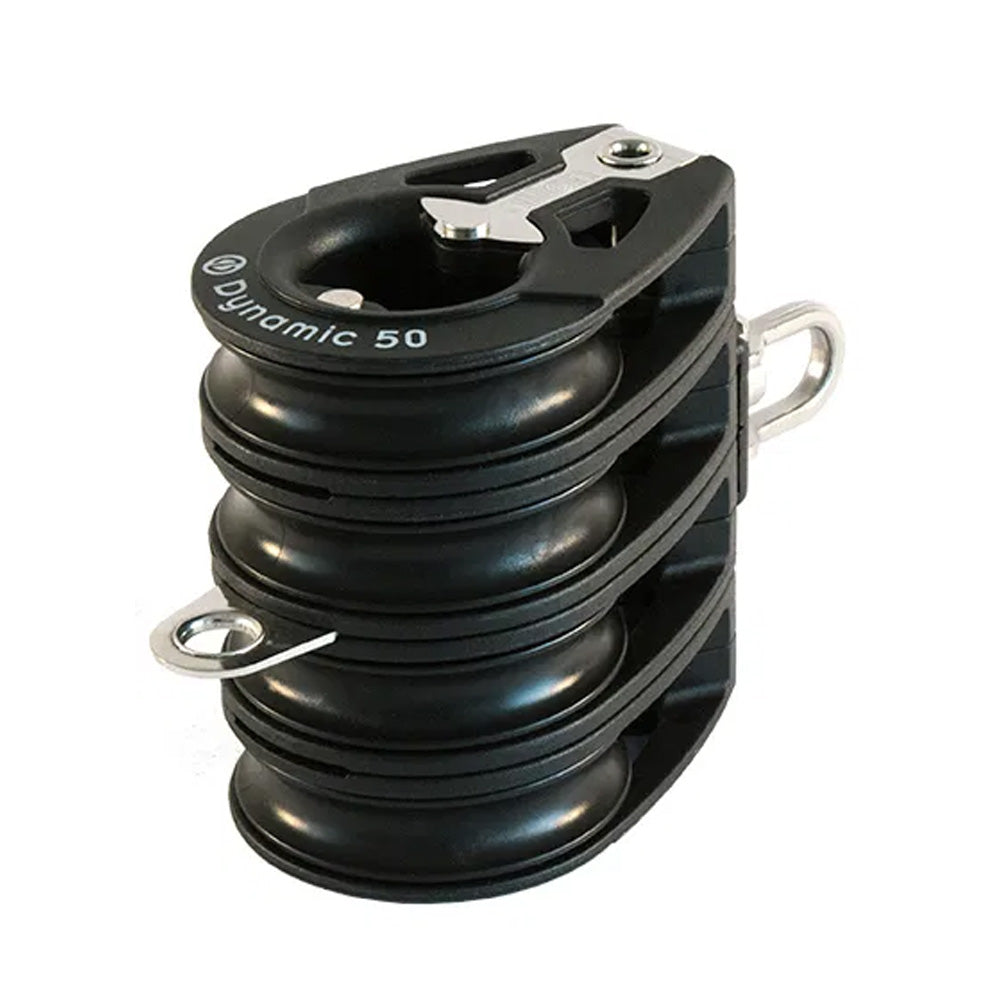

50mm Quad Dynamic Block With Becket.
The A2057 is a high performing ball bearing block, designed to eliminate friction and allow rope to run at great speeds.
Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between. The 50mm quad is a great choice for systems which require a larger purchase system with minimal friction.
Our Part # ALL-A2057 | Allen Part # A2057
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
- Swivel Lock:Â The A2057 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
- Becket:Â This pulley features a central becket between the sheaves. This allows for easy termination of a rope as well as helping keep the load centralised.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 950.00 kg. | 1764.00 lbs. |
Length | 136.00 mm. | 5 1/3 in. |
Maximum line diameter | 10.00 mm. | 2/5 in. |
Maximum working load | 470.00 kg. | 1036.35 lbs. |
Weight | 274.00 g. | 9.66 oz. |
Shackle pin | 5.00 mm. | 1/5 in. |
