Allen  |  SKU: ALL-A2056  |  Manuf. Code: A2056

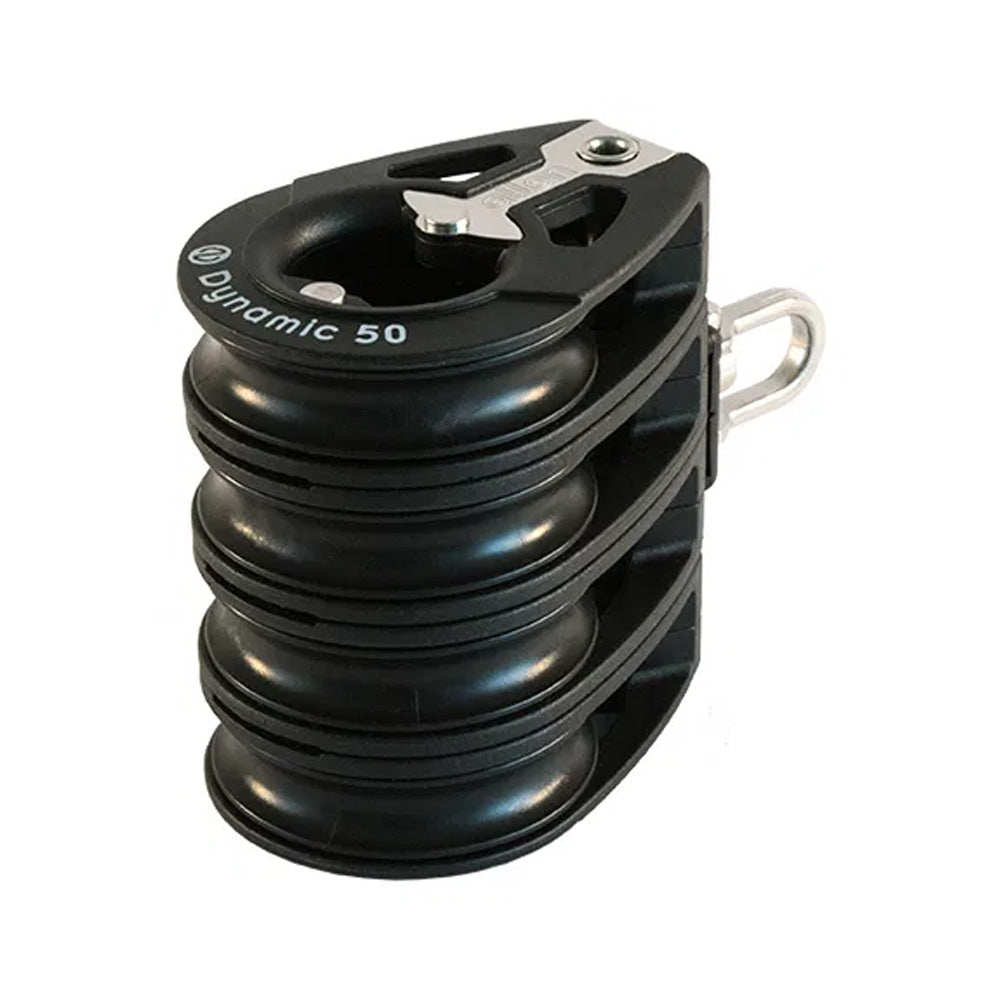

Allen 50 mm Quad Dynamic Block

$239.95 USD $266.61

Description

50mm Quad Dynamic Block.

The A2056 is a high performing ball bearing block, designed to eliminate friction and allow rope to run at great speeds.

Ideal for use on Keelboats and Catamarans for a range of applications from jib sheet to mainsheet systems, to backstay tensioning systems and everything in between. The 50mm quad is a great choice for systems which require a larger purchase system with minimal friction.

Our Part # ALL-A2056 | Allen Part # A2056

Features

Features:

  • Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
  • Swivel Lock: The A2056 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
  • Becket: A large central hole not only reduces the overall weight of the block but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.

Technical Information


DescriptionMetricImperial
Breaking load950.00 kg.2976.75 lbs.
Length100.00 mm.4.00 in.
Maximum line diameter10.00 mm.2/5 in.
Maximum working load470.00 kg.1036.35 lbs.
Weight269.00 g.9.49 oz.
Shackle pin5.00 mm.1/5 in.
