Allen 30 mm & 40 mm Linked Dynamic Blocks
Allen 30 mm & 40 mm Linked Dynamic Blocks is backordered and will ship as soon as it is back in stock.
Description
Description

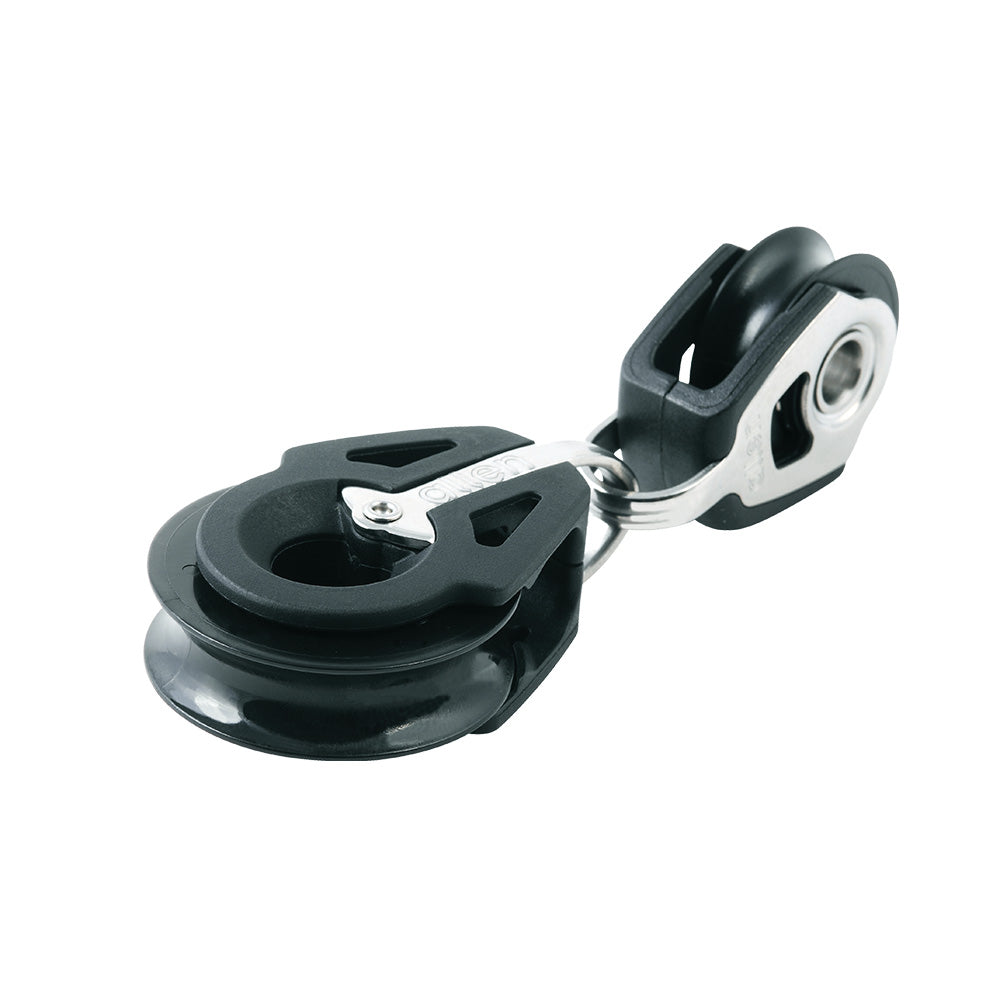

Linked 30mm & 40mm Dynamic Blocks.
This product is a great choice for mainsheet systems which require a traveller block (30mm) and a mainsheet block (40mm) attached as closely together as possible. The fact that the two blocks are linked together means there is a limited chance of snagging or failure. The linked blocks can also be used in spinnaker and pole launcher systems.
Our Part # ALL-A2030-40 | Allen Part # A2030-40
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Becket: The large central hole on both blocks not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 750.00 kg. | 1653.75 lbs. |
Length | 110.00 mm. | 4 1/3 in. |
Maximum line diameter | 8.00 -10.00 mm | 1/3 - 2/5 in. |
Maximum working load | 140.00 kg. | 308.70 lbs. |
Weight | 63.00 g. | 2.22 oz. |
