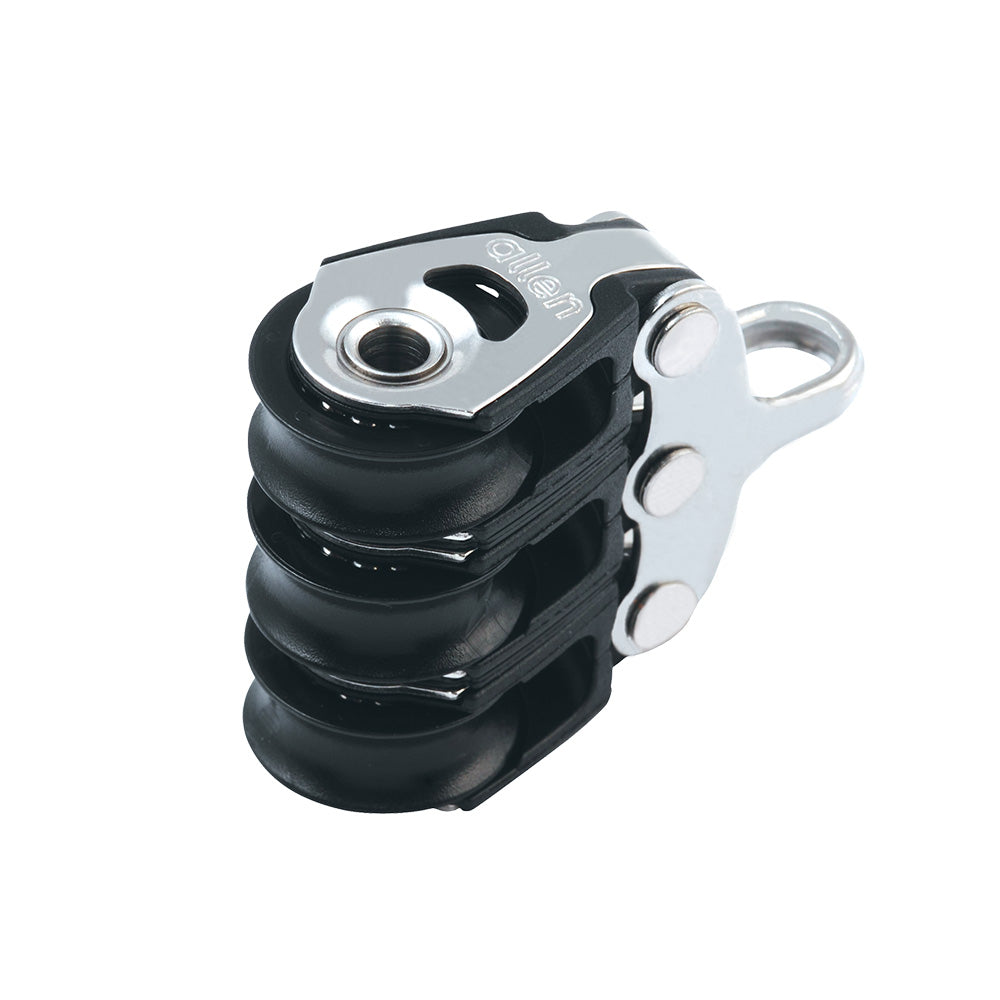

Allen 20 mm Dynamic Triple Block
Allen 20 mm Dynamic Triple Block is backordered and will ship as soon as it is back in stock.
Description
Description
20mm Triple Dynamic Block.
The A2024 is our go-to triple sheave, low friction, fast rolling, small pulley. Its lightweight and strong, making it ideal for dinghies, windsurfing, kitesurfing and anything else that runs smaller diameter lines.
Triple blocks are generally used in systems such as cunninghams or vangs, to give a larger purchase system.
Our Part # ALL-A2024 | Allen Part # A2024
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Ultra-Strap: Our patented Ultra-Strap is used in our 20, 30 & 40mm Dynamic blocks. The Ultra-Strap is unique when compared to other designs because of its coining process. This process strengthens the strap, making it more reliable and hard-wearing as well as making it much more rope friendly than other designs. The Ultra-Strap was the first marine industry block designed to work specifically with a rope attachment.
- Becket: Our 20 & 30mm blocks offer a large central rivet which not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 650.00 kg. | 1433.25 lbs. |
Length | 50.00 mm | 2.00 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Maximum working load | 320.00 kg. | 705.60 lbs. |
Weight | 47.90 g. | 1.69 oz. |
