Allen 20 mm Tie On Double Dynamic Block
Allen 20 mm Tie On Double Dynamic Block is backordered and will ship as soon as it is back in stock.
Description
Description

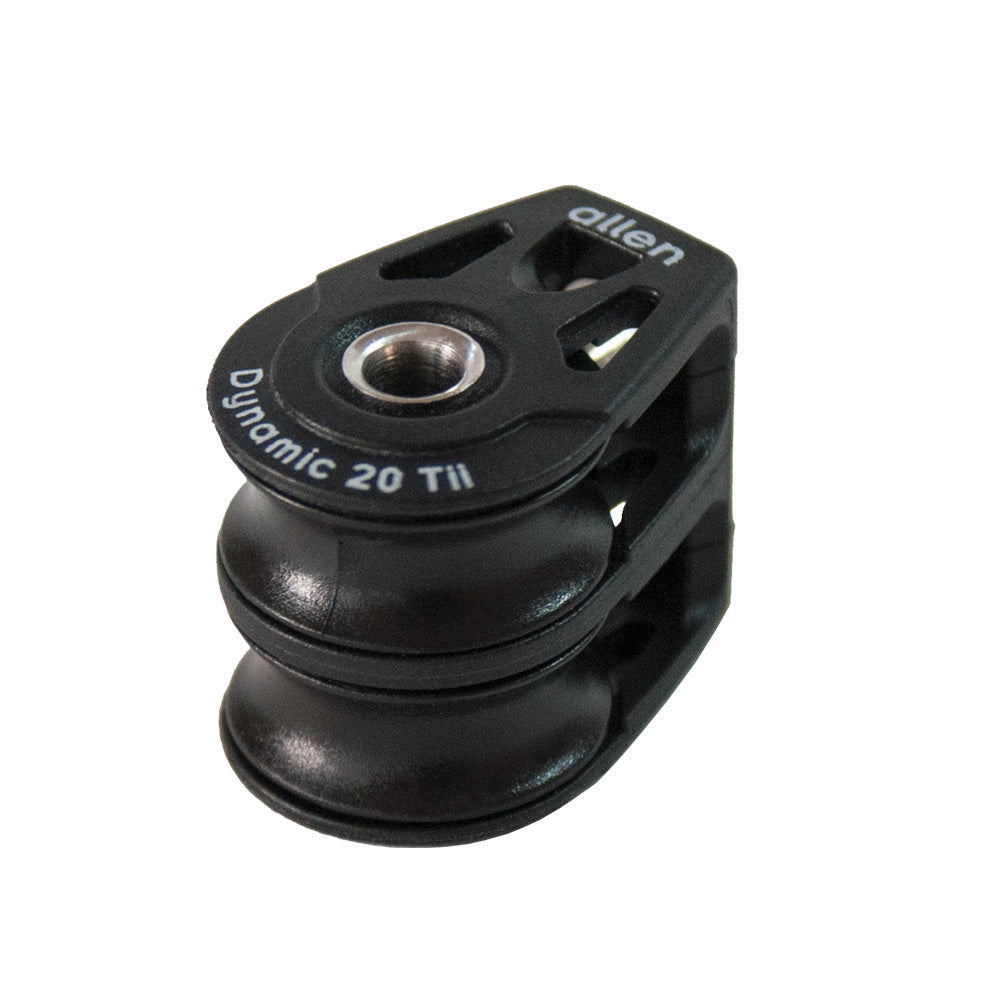

20mm Double Dynamic Tii-On Block.
Our Tii-On blocks feature a stainless-steel loop at the head of the block. This gives our Tii-On range maximum strength and reliability with minimal cheek separation when tied on and loaded up with a soft shackle. The stainless-steel head loop also ensures the block stays in the right orientation when being used.

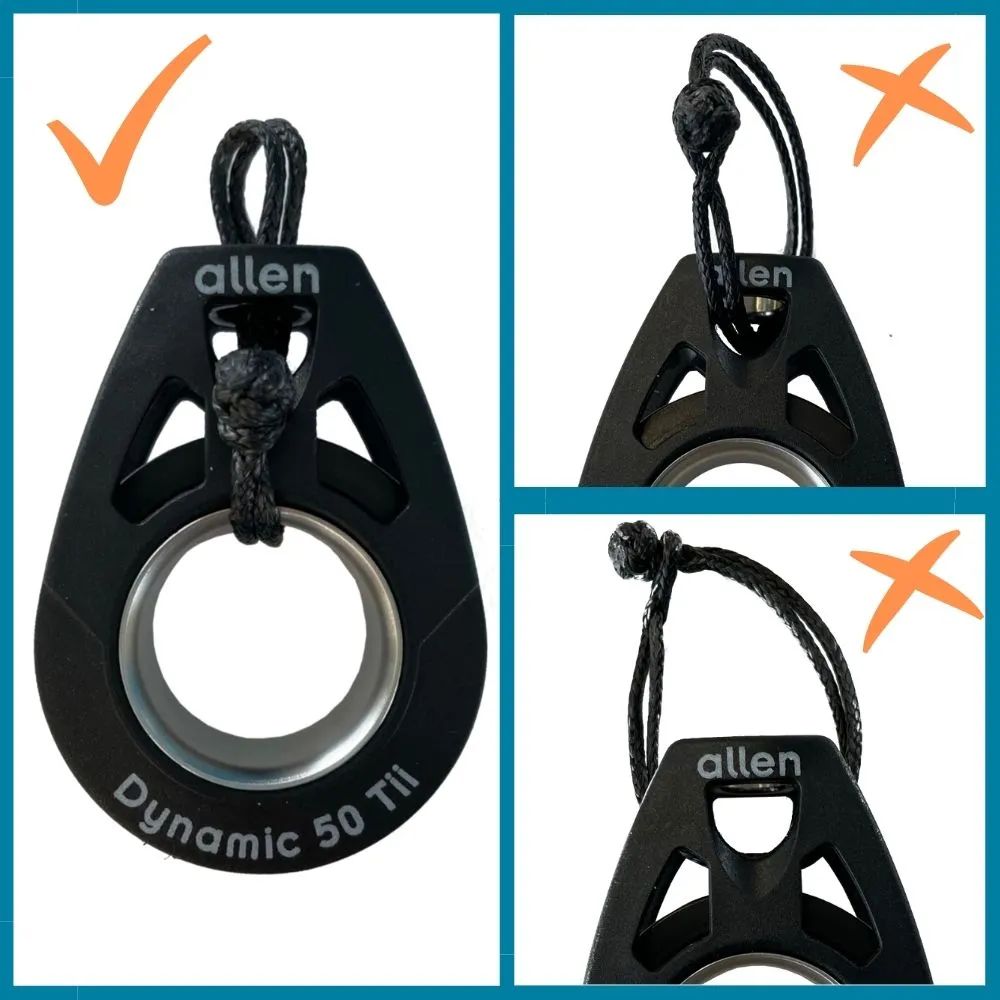

When attaching a Tii-on block you must feed the rope around the central axle and through the head of the block. Tii-On blocks rely on the correct attachment method to give them maximum strength.
Our Part # ALL-A2022TII | Allen Part # A2022Tii
Features
Features
Features:
- Becket: The large central rivet not only reduces the overall weight but also offers a rope friendly attachment, perfect as a tie-off point when being used in a cascade system.
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 600.00 kg. | 1323.00 lbs. |
Length | 29.00 mm. | 1 1/7 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Maximum working load | 225.00 kg. | 511.25 lbs. |
Weight | 15.60 g. | 0.55 oz. |
