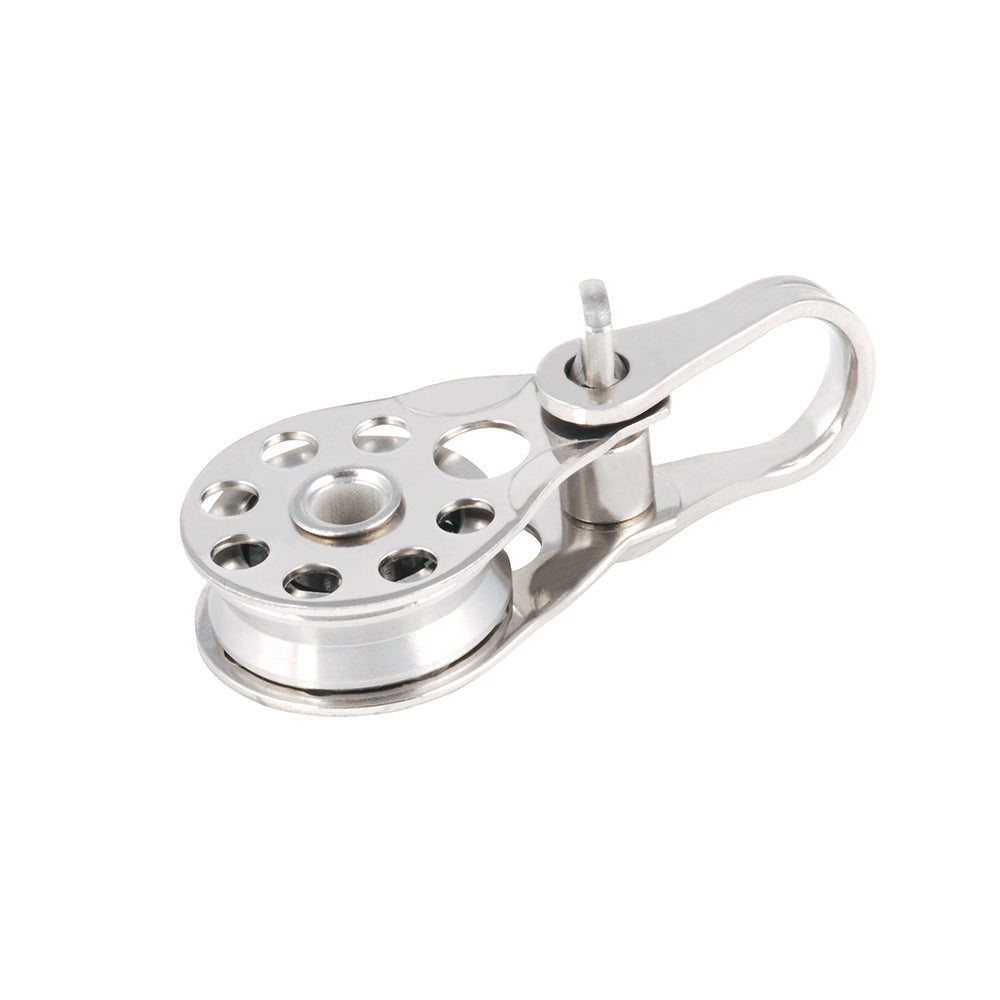

Allen Flared Cheek High Tension Block
$46.00 USD
$51.11
Unit price
/
Unavailable
Allen Flared Cheek High Tension Block is backordered and will ship as soon as it is back in stock.
Description
Description
25mm Single Flared Wire Block.
Specifically intended for use where wire lines are subjected to low running speeds and higher static loads.
For faster running, lower loaded control lines consider the dynamic range.
Our Part # ALL-A4279 | Allen Part # A4279
Features
Features
Features:
- Flared Body:Â Formed in stainless steel for a lightweight yet robust frame with a flared opening to allow the wire to run at an acute angle from the block.
- Bearings:Â A single row of spaced stainless steel ball bearings run on a stainless steel axle. This allows the width of the block to be as narrow as possible whilst still offering excellent rolling speeds and high working loads.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 750.00 kg. | 1653.75 lbs. |
Length | 41.00 mm. | 1 3/5 in. |
Maximum line diameter | 2.00 - 7.00 mm. | 0.08 - 2/7 in. |
Shackle pin | 5.00 mm. | 1/5 in. |
Sheave diameter | 25.00 mm. | 1.00 in. |
Weight | 44.00 g. | 1.55 oz. |
