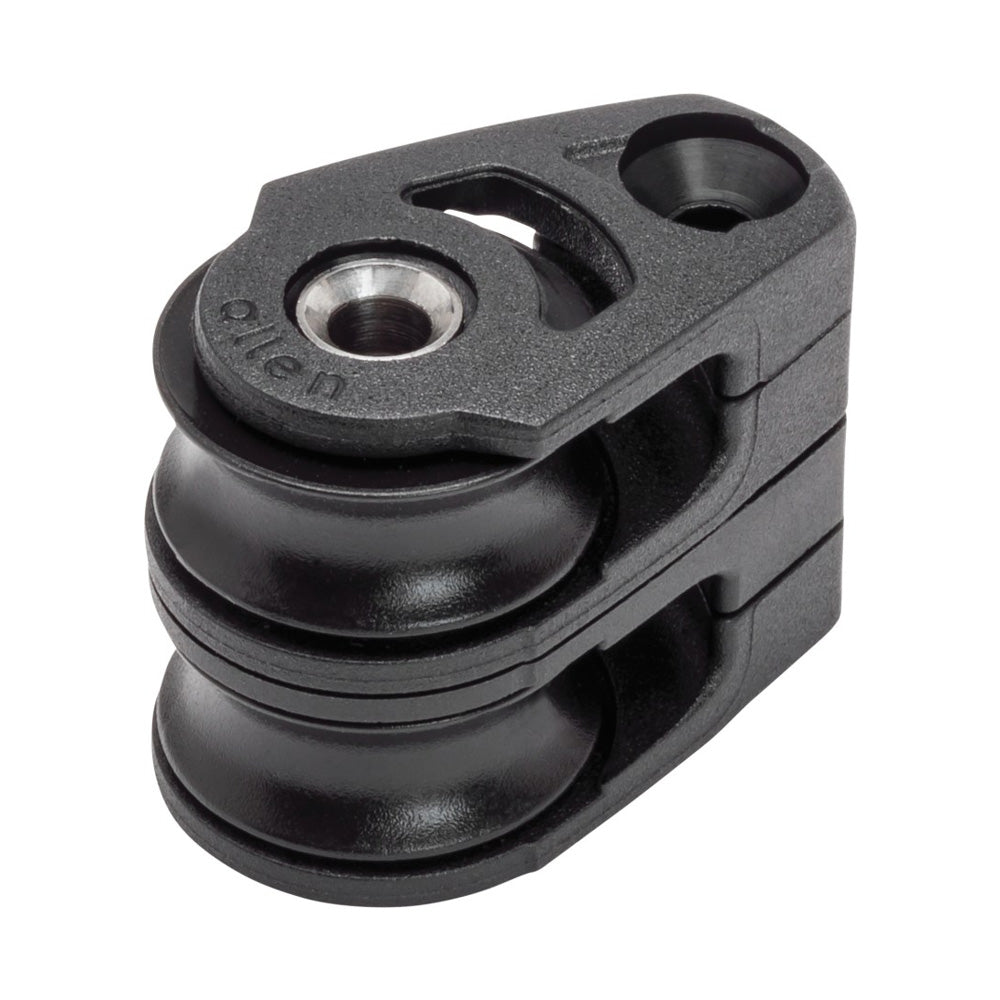

Allen 20 mm Composite Double Cheek Block
Allen 20 mm Composite Double Cheek Block is backordered and will ship as soon as it is back in stock.
Description
Description
20mm Double Dynamic Composite Cheek Block.
Our Dynamic range is generally the best choice for applications that require constant sheave movement.
Cheek blocks are designed to be fixed to a flat surface. Ideal for leading lines along a deck, into a cleat or around corners. Held in place by two screws. One screw through the middle of the sheave and the other through the countersunk hole in the head of the block.
Our Part # ALL-A2126M | Allen Part # A2126M
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 540.00 kg. | 1190.70 lbs. |
Fixing hole centres | 18.00 mm. | 5/7 in. |
Length | 33.00 mm. | 1 2/7 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Maximum working load | 225.00 kg. | 496.13 lbs. |
Weight | 23.00 g. | 0.81 oz. |
