Allen 30 mm Dynamic Composite Block with Cheek
Allen 30 mm Dynamic Composite Block with Cheek is backordered and will ship as soon as it is back in stock.
Description
Description

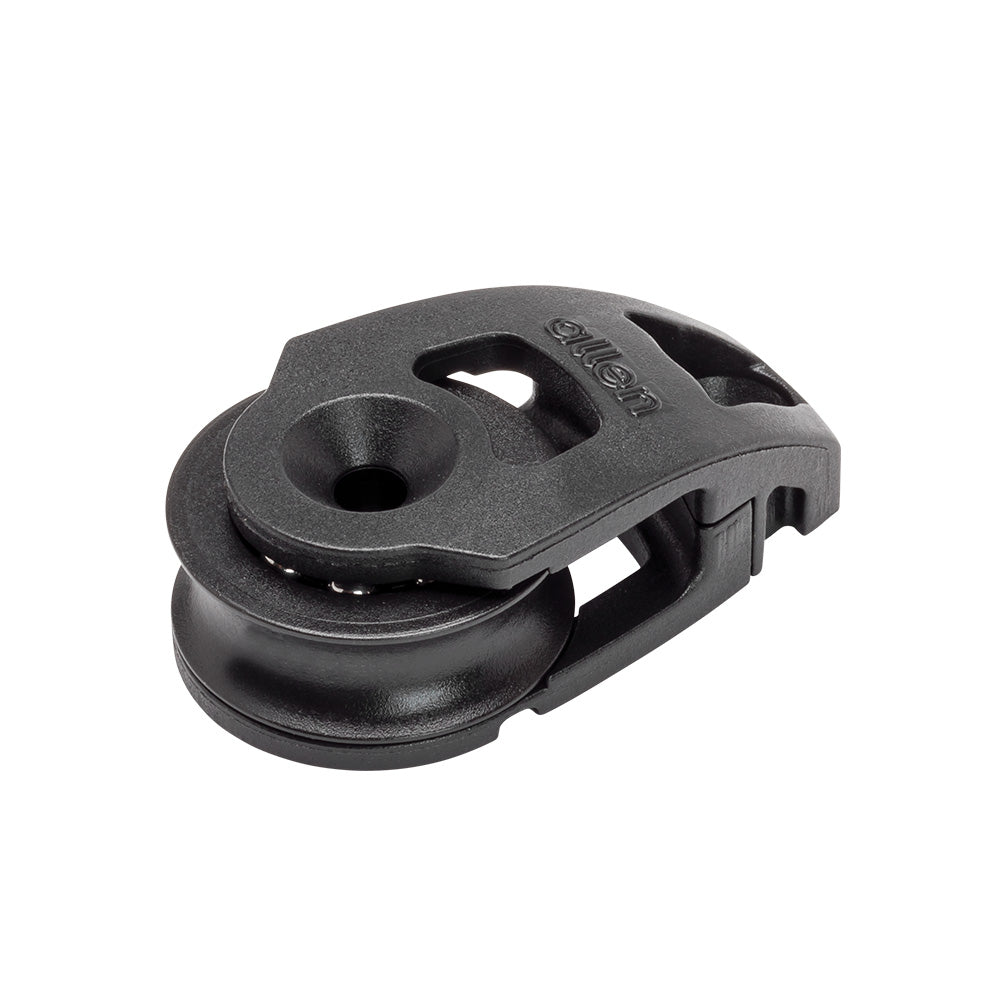

30mm Single Dynamic Composite Cheek Block
Our Dynamic range is generally the best choice for applications that require constant sheave movement.
Cheek blocks are designed to be fixed to a flat surface. Ideal for leading lines along a deck, into a cleat or around corners. Held in place by two screws. One screw through the middle of the sheave and the other through the countersunk hole in the head of the block.
Our Part # ALL-A2036M | Allen Part # A2036M
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 400.00 kg | 882.00 lbs. |
Length | 50.00 mm. | 1/5 in. |
Maximum line diameter | 8.00 mm. | 1/3 in. |
Maximum working load | 140.00 kg. | 308.70 lbs. |
Weight | 24.00 g. | 0.85 oz. |
Fixing hole centres | 30.00 mm. | 1 1/6 in. |
