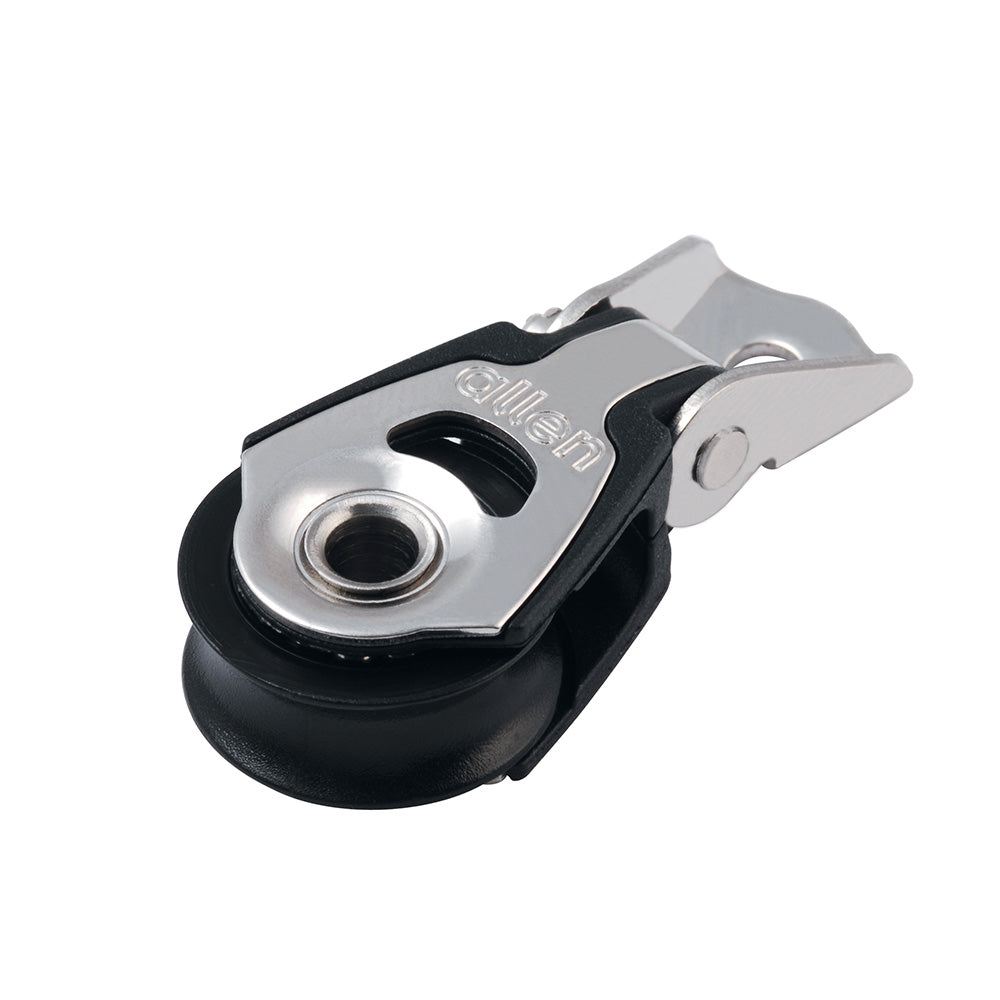

Allen 20 mm Dynamic Block with Cheek
$25.00 USD
$27.78
Unit price
/
Unavailable
Allen 20 mm Dynamic Block with Cheek is backordered and will ship as soon as it is back in stock.
Description
Description
20mm Single Dynamic Cheek Block.
This block is mounted to our Profix cheek adapter which allows for articulation, so the block can lift up and down to align correctly with the rope. Ideal for leading lines along a deck, into a cleat or around corners. Held in place by one screw through the head of the Profix cheek adaptor.
Our Part # ALL-A2026 | Allen Part # A2026
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 350.00 kg. | 771.75 lbs. |
Length | 45.00 mm. | 1 7/9 in. |
Maximum line diameter | 6.00 mm. | 1/4 in. |
Maximum working load | 115.00 kg. | 253.58 lbs. |
Weight | 15.30 g. | 0.54 oz. |
Shackle pin | 4.00 mm. | 1/6 in. |
