Preparation:
- Gather tools and materials
- Review safety precautions
- Pre-assemble components
Installation:
1. Headstay removal and replacement:
- Remove the existing headstay while safely securing the mast.
- Install the new headstay with the appropriate length and termination.

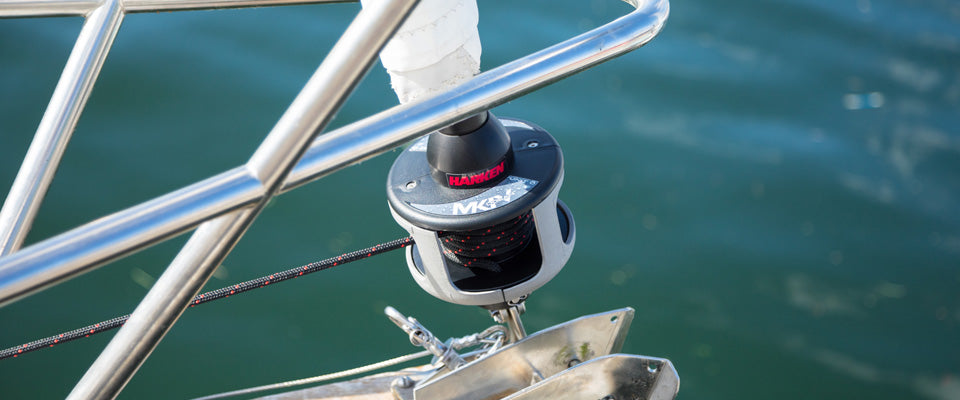

2. Furler assembly:
- Assemble the furler unit following the manual's step-by-step instructions, including attaching the foils, halyard swivel, drum assembly, and other components.
3. Rigging:
- Install the turnbuckle and toggle, connecting the headstay to the furler.
- Adjust the headstay tension, it needs to be straight as an arrow.
- Attach the furling line and feeder as per the manual's instructions.
- Install the halyard and ensure proper routing and tension.
4. Commissioning:
- Follow the manual's guidance on furler adjustments and initial operation checks.
- Feed the sail through the foils and connect the tack to the tack swivel.
- Wind up the drum in order to prepare the system.
- Test the furling system ensuring smooth operation and proper sail furling/unfurling.
5. Final adjustments and checks:
- Make any necessary adjustments to the turnbuckle, furling line tension, and halyard.
- Thoroughly inspect the entire system for proper installation and secure connections.
Installation:
1. Headstay removal and replacement:
- Remove the existing headstay while safely securing the mast.
- Install the new headstay with the appropriate length and termination.
2. Furler assembly:
- Assemble the furler unit following the manual's step-by-step instructions, including attaching the foils, halyard swivel, drum assembly, and other components.
3. Rigging:
- Install the turnbuckle and toggle, connecting the headstay to the furler.
- Adjust the headstay tension, it needs to be straight as an arrow.
- Attach the furling line and feeder as per the manual's instructions.
- Install the halyard and ensure proper routing and tension.
4. Commissioning:
- Follow the manual's guidance on furler adjustments and initial operation checks.
- Feed the sail through the foils and connect the tack to the tack swivel.
- Wind up the drum in order to prepare the system.
- Test the furling system ensuring smooth operation and proper sail furling/unfurling.
5. Final adjustments and checks:
- Make any necessary adjustments to the turnbuckle, furling line tension, and halyard.
- Thoroughly inspect the entire system for proper installation and secure connections.
